128-442R014 - MTD Walk-Behind Mower (1988) (Evans Products) Parts Parts Diagram

Walk-Behind Mower

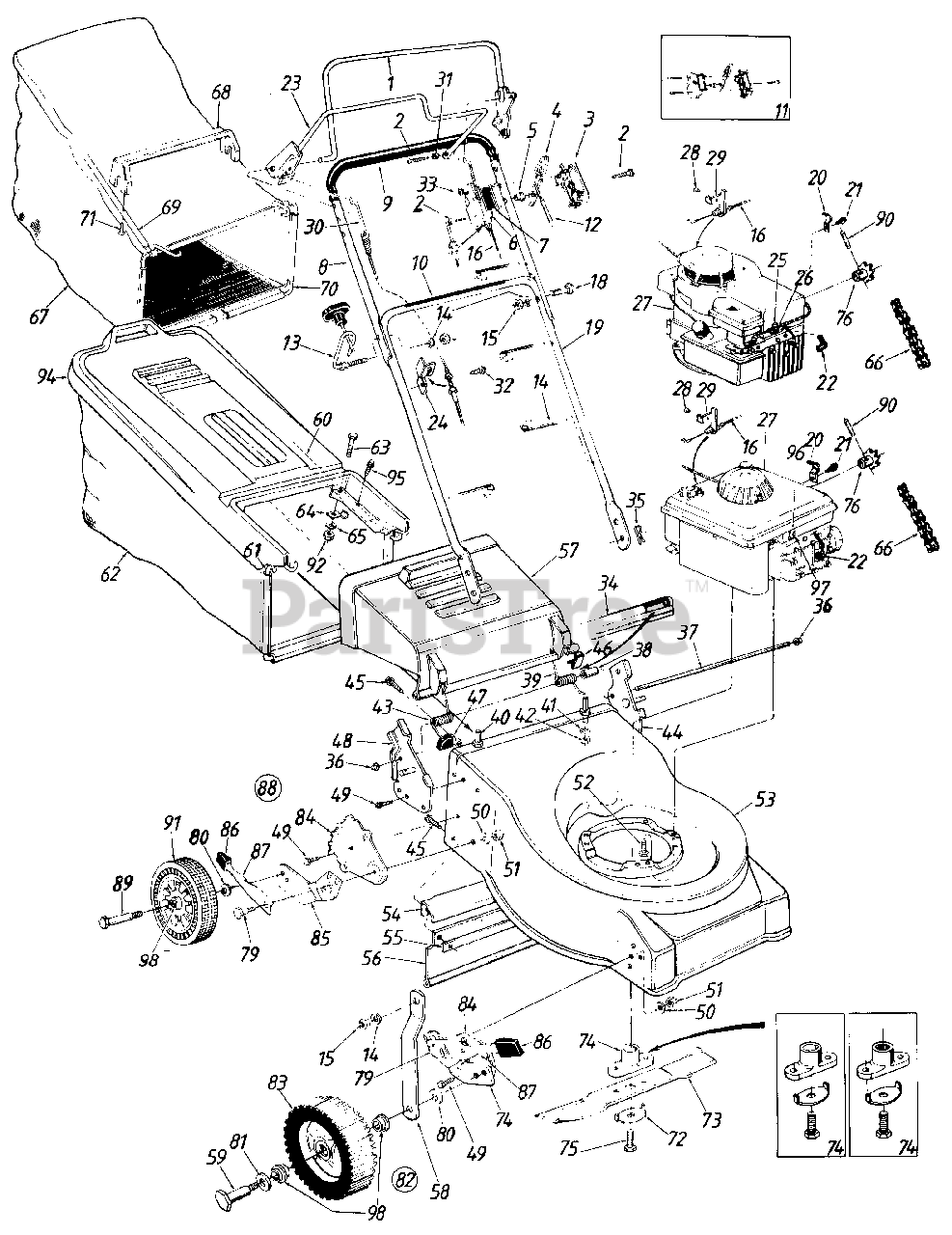

Parts Parts Diagram

  • Title

1

MTD 14321

Control Handle Ass'y.

$

$

Not available

2

MTD 710-0796

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

3

MTD 731-0817

Control Panel Half

$

$

Not available

4

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

MTD 731-0524

Control Disc Pin

$

$

Not available

6

MTD 731-0816

Clutch Panel Half

$

$

Not available

7

MTD 777-5774

Control Label-Throttle

$

$

Currently unavailable

8

MTD 749-0436

Upper Handle
(Superseded to 749-0438D-0637)

$

$

Not available

9

MTD 718-0145

Grip

$

$

Currently unavailable

10

MTD 777-5776

Instruction Label-Handle

$

$

Currently unavailable

11

MTD 753-0430

Control Housing Comp.

$

$

Not available

12

MTD 746-0672

Throttle Wire-58" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

13

MTD 710-0842

Rope Guide Bolt

$

$

Not available

14

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 746-0477

Control Cable-43" Lg.
(Superseded to 946-0477A)

$

$

Not available

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

18

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

19

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

20

MTD 12894

Cable Clamp

$

$

Not available

21

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

22

MTD 735-0639

Spark Plug Boot

$

$

Not available

23

MTD 16391

S.P. Bail Ass'y.

$

$

Not available

24

MTD 16309

Cable Mounting Brkt.
(Superseded to 16309A)

$

$

Not available

25

MTD 751-0369

Cable Clamp

Note: (442R, 452R)

$

$

Not available

26

MTD 710-0227

Hex AB-Tap Scr. #8 x .5" Lg.

Note: (442R, 452R)

$4.49

$

In Stock, Qty 20+

0

27

Engine

$

$

Not available

28

MTD 728-0171

Pop Rivet .156" Dia.

$

$

Not available

29

MTD 14924

Cable Bracket

$

$

Not available

30

MTD 746-0627

Drive Cable-47" Lg.

$

$

Not available

31

MTD 750-0649

Spacer.23" I.D.

$

$

Not available

32

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0370

Spr. Wash. .206" I.D.

$

$

Not available

34

MTD 731-0858

Seal-Extrusion

$

$

Not available

35

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

36

MTD 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

37

MTD 747-0698

Hinge Pin 17.75" Lg.
(Superseded to 747-0698B)

$

$

Not available

38

MTD 750-0566

Spacer.255" I.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

39

MTD 732-0577

Torsion Spring-L.H.
(Superseded to 932-0577B)

$

$

Not available

40

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

41

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

42

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

MTD 732-0578

Torsion Spring-R.H.
(Superseded to 732-0578B)

$

$

Not available

44

MTD 12297

Handle Brkt. Ass'y.-L.H.

$

$

Not available

45

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

46

MTD 731-0970

Deflector Plug
(Superseded to 731-0970B)

$

$

Not available

47

MTD 731-0931

Corner Plug

$

$

Not available

48

MTD 12296

Handle Brkt. Ass'y.-R.H.
(Superseded to 12296B-0637)

$

$

Not available

49

MTD 710-0892

Hex L-Wash. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

50

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

51

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

52

MTD 710-0654

Hex L-Wash. Hd. Scr. 3/8-16x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

53

MTD 16998

21" Deck Ass'y.

Variations

MTD 16998-0499

No Longer Available DECK ASM - CUB BEIGE (0499)

$

$

Not available

MTD 16998-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 16998-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16998-0650

No Longer Available DECK ASM - RED METALLIC (0650)

$

$

Not available

MTD 16998-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 16998-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

54

MTD 17014

Chute Baffle

$

$

Not available

55

MTD 17003

Retaining Strip 14.25" Lg.

Variations

MTD 17003-0637

No Longer Available STRIP-RETA - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 731-0669

Rear Flap 17.30" Lg.

$50.99

$

Usually ships in 3-6 days

0

57

MTD 731-0859

Rear Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

58

MTD 16532

Link 5.06" Lg.
(Superseded to 16532B-0637)

$

$

Not available

59

MTD 738-0144

Front Axle Bolt
(Superseded to 938-0144)

$

$

Not available

60

MTD 749-0736

Rear Catcher Frame

Note: (Models 452R, 456R, and 459R only.)

$

$

Not available

61

MTD 747-0693

Front Catcher Frame
(Superseded to 764-0411-0637)

Note: (Models 452R, 456R, and 459R only.)

$41.99

$

Usually ships in 3-6 days

0

62

MTD 764-0252

Grass Bag
(Superseded to 964-0252)

Note: (Models 452R, 456R, and 459R only.)

$143.99

$

Usually ships in 3-6 days

0

63

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1" Lg.
(Superseded to 710-0166A)

Note: (Models 452R, 456R, and 459R only.)

$7.49

$

In Stock, only 1 left!

0

64

MTD 12894

Hardtop Mtg. Clamp

Note: (Models 452R, 456R, and 459R only.)

$

$

Not available

65

MTD 736-0463

Fl-Wash..281" I.D.

Note: (Models 452R, 456R, and 459R only.)

$4.49

$

In Stock, Qty 12

0

66

MTD 713-0311

#48 Chain 1/2" Pitch 50 Links (Endless)
(Superseded to 913-0311)

$31.99

$

Usually ships in 3-6 days

0

67

MTD 764-0246

Grass Bag

Note: (Model 442R only)

$

$

Not available

68

MTD 731-0801

Bag Handle

Note: (Model 442R only)

$

$

Not available

69

MTD 749-0764

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Note: (Model 442R only)

$40.99

$

Usually ships in 3-6 days

0

70

MTD 747-0700

Front Catcher Frame
(Superseded to 764-0412-0637)

Note: (Model 442R only)

$

$

Not available

71

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25"

Note: (Model 442R only)

$6.49

$

Usually ships in 3-6 days

0

72

MTD 736-0415

Blade Bell-Wash. .44" I.D. x 2.38"
(Superseded to 753-0525)

$

$

Not available

73

MTD 742-0306

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

74

MTD 753-0462

Blade Adapter Kit Keyed

$

$

Not available

MTD 753-0463

Blade Adapter Kit Splined
(Superseded to 753-0485)

$46.99

$

Usually ships in 3-6 days

0

75

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

76

MTD 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

MTD 14766

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

79

MTD 738-0507

Shld. Bolt .50" Dia. x .357"
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

80

MTD 736-0105

Bell-Wash. .38" I.D. x .88n O.D.

$4.49

$

In Stock, Qty 20+

0

81

MTD 736-0192

Fl-Wash. .531 " 1.D.

$4.49

$

In Stock, Qty 18

0

82

MTD 16107

Front Height Adj. Ass'y. Comp.-R.H.

$

$

Not available

MTD 16106

Front Height Adj. Ass'y. Comp.-L.H.

Note: (Not Shown)

$

$

Not available

83

MTD 734-0538

Front Wheel Ass'y. Comp.

$

$

Not available

84

MTD 14764

Index Plate
(Superseded to 14764C)

$8.49

$

Usually ships in 3-6 days

0

85

MTD 14765

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

86

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

87

MTD 732-0417

Spring Lever
(Superseded to 732-0417A)

$

$

Not available

88

MTD 16106

Rear Height Adj. Ass'y. Comp.-R.H.

$

$

Not available

MTD 16107

Rear Height Adj. Ass'y. Comp.-L.H.

Note: (Not Shown)

$

$

Not available

89

MTD 738-0102

Rear Axle Bolt

$9.99

$

In Stock, Qty 10

0

90

MTD 715-0247

Spring Pin 3/16" Dia.
(Superseded to 915-0247)

$

$

Not available

91

MTD 734-0894

Rear Wheel Ass'y. Comp.

$

$

Not available

92

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: (Models 452R, 456R, and 459R only.)

$4.99

$

In Stock, only 1 left!

0

94

MTD 731-0857

Hardtop Bag Cover
(Superseded to 631-0003)

Note: (Models 452R, 456R, and 459R only.)

$104.99

$

Usually ships in 3-6 days

0

95

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

96

MTD 751-0463

Cable Clamp

Note: (456R, 459R)

$

$

Not available

97

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

Note: (456R, 459R)

$3.99

$

Usually ships in 3-6 days

0

98

MTD 741-0262

Flanged Brg. .50" I.D.

$8.49

$

Usually ships in 3-6 days

0
