128-232B000 - MTD Walk-Behind Mower (1988) Parts01 Parts Diagram

Walk-Behind Mower

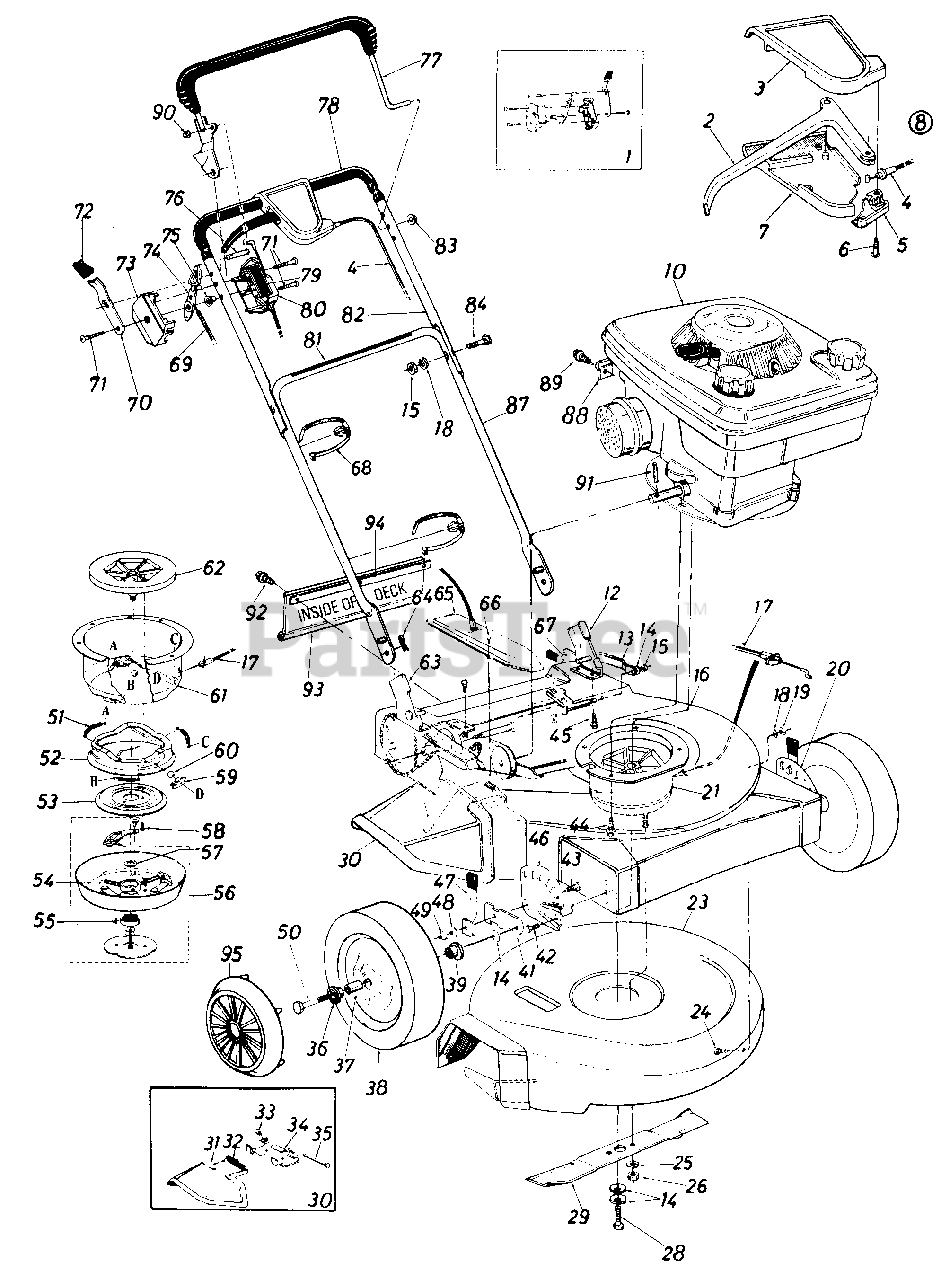

Parts01 Parts Diagram

  • Title

1

MTD 753-0431

Control Housing Comp.

$

$

Not available

2

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

3

MTD 731-0617

Control Cover Half-Upper
(Superseded to 731-0617A)

$

$

Not available

4

MTD 746-0464

Drive Clutch Cable-59"

$

$

Not available

5

MTD 731-0619

Cable Mounting Cap

$

$

Not available

6

MTD 710-0841

Flat "C" Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 731-0618

Control Cover Half-Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

8

MTD 753-0362

Clutch Control Housing Comp.

$

$

Not available

10

Engine

$

$

Not available

12

MTD 12935

Handle Mount Brkt. Ass'y.-L . H .

$

$

Not available

13

MTD 14927

Pivot Brkt. Ass'y.-L.H.

$

$

Not available

14

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 16025

21" Deck Ass'y.-Upper

Variations

MTD 16025-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

17

MTD 746-0400A

Blade Clutch Cable-46" Lg.
(Superseded to 946-0405)

$53.99

$

Usually ships in 3-6 days

0

18

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

MTD 10941

Height Adj. Ass'y. Comp.-L.H .

$

$

Not available

MTD 10935

Index Plate Ass'y.-L.H.

$

$

Not available

21

MTD 717-0488

Blade Brake/Clutch Ass'y.-Comp.

$

$

Not available

23

MTD 11695

Lower Deck Ass'y.

$

$

Currently unavailable

24

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

28

MTD 710-0818

Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8)

$6.99

$

Usually ships in 3-6 days

0

29

MTD 742-0521

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

30

MTD 11679

Chute Deflector Ass'y.-Comp .

$

$

Not available

31

MTD 11141

Chute Deflector

$

$

Not available

32

MTD 732-0253

Torsion Spring

$

$

Not available

33

MTD 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

34

MTD 11130

Adapter Plate

$

$

Not available

35

MTD 711-0555

Pivot Pin

$

$

Not available

36

MTD 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available

37

MTD 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

38

MTD 734-0645

Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

39

MTD 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

41

MTD 10937

Pivot Bar

$

$

Not available

42

MTD 710-0209

Hex Sems Bolt 3/8-16 x .62"

$

$

Not available

43

MTD 711-0498

Shoulder Bolt

$

$

Not available

44

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0603

Hex Wash. Hd. "B"-Tap Scr. 5/16 x 1/2 " Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 10938

Height Adjuster Ass'y. Comp.-R.H.

$

$

Not available

MTD 10934

Index Plate Ass'y.-R.H.

$

$

Not available

47

MTD 14082

Spring Lever Ass'y. w/Knob

$

$

Not available

48

MTD 736-0219

Bell-Wash. .400" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

49

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

50

MTD 710-0427

Axle Bolt
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

51

MTD 732-0397

Extension Spring

$

$

Not available

52

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

53

MTD 14304

Clutching Cone

$

$

Not available

54

MTD 732-0396

Compression Spring

$

$

Not available

55

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

56

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

57

MTD 736-0333

Fl-Wash. .69" I.D. x 1.06"

$

$

Not available

58

MTD 710-0875

Hex TT-Tap L-Scr. '/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

59

MTD 731-0520

Ball Block

$

$

Not available

60

MTD 741-0326

Steel Ball 1/2" Dia.

$

$

Not available

61

MTD 14308

Clutch Housing

$

$

Currently unavailable

62

MTD 719-0256

Fan Adapter

$

$

Not available

63

MTD 12936

Handle Mount Brkt. Ass'y.-R. H.

$

$

Not available

64

MTD 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

65

MTD 16029

Belt Cover

$

$

Not available

66

MTD 710-0224

Hex Wash. Hd. "AB" Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

67

MTD 10641

Index Plate Ass'y.-L.H.

$

$

Currently unavailable

68

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

69

MTD 746-0631

Throttle Wire-43"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

70

MTD 732-0401

Lockout Spring

$

$

Not available

71

MTD 710-0796

Truss Mach. Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

72

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

73

MTD 731-0817

Control Panel Half

$

$

Not available

74

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

75

MTD 731-0524

Control Disc Pin

$

$

Not available

76

MTD 731-0607

Lock Pin

$

$

Not available

77

MTD 731-0610

Control Handle-R.H.

$

$

Not available

78

MTD 718-0145

Grip

$

$

Currently unavailable

79

MTD 777-5772

Control Label-Throttle

$

$

Currently unavailable

80

MTD 731-0816

Clutch Panel Half

$

$

Not available

81

MTD 777-5775

Instruction Label-Handle

$

$

Currently unavailable

82

MTD 749-0537

Upper Handle

$

$

Not available

83

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

84

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

87

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

88

MTD 751-0442

Casing Clamp

$

$

Not available

89

MTD 710-0436

Hex Sems Scr. #10-32 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

90

MTD 726-0245

Push Cap

$

$

Not available

91

MTD 715-0144

Spring Pin 3/16" Dia. x 1.5"

$

$

Not available

92

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

93

MTD 731-0575

Rear Flap
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

94

MTD 14836

Retaining Strip

$

$

Not available

95

MTD 731-0124

Hub Cap

$

$

Not available
