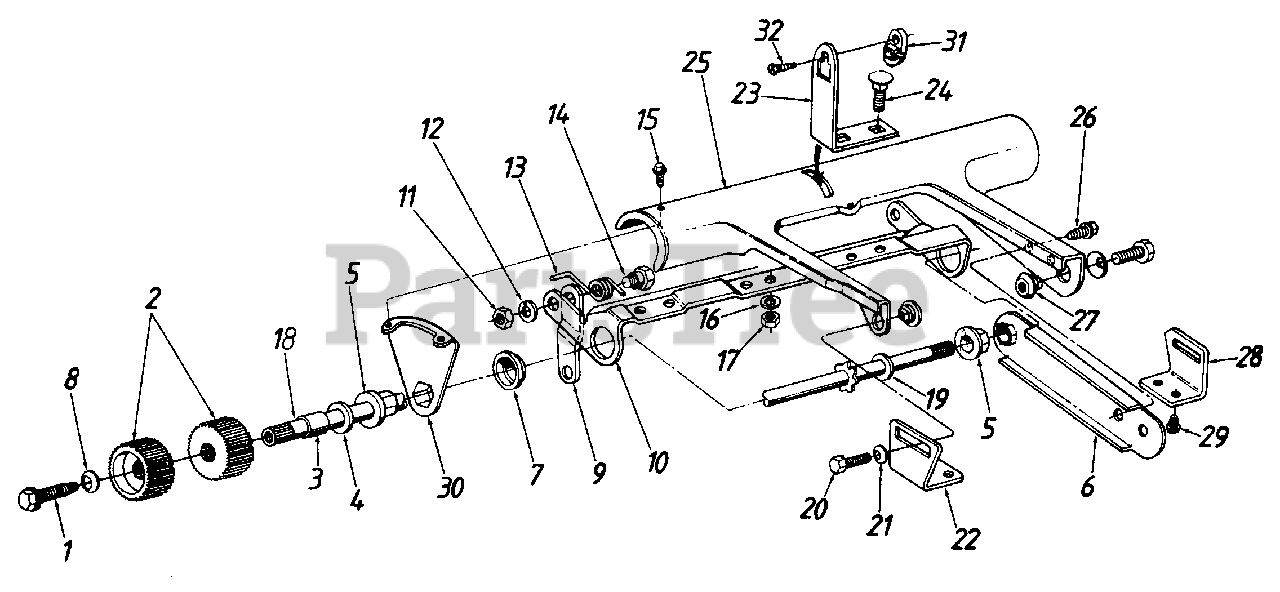

128-222R190 - White Outdoor Lawn Boss 22" Walk-Behind Mower (1988) Rear Pinion Assembly Parts Diagram

Lawn Boss 22" Walk-Behind Mower

Rear Pinion Assembly Parts Diagram

  • Title

1

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 717-0623

Wheel Drive Pinion-Half

$

$

Not available

3

White Outdoor 711-0313

Sleeve .526" l.D. x 69" O.D.
(Superseded to 911-0313)

$

$

Not available

4

White Outdoor 736-0369

Fl-Wash. 50" l.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 741-0503

Hex Flange Brg. .504 I.D.

$3.49

$

Usually ships in 3-6 days

0

6

White Outdoor 17018

Hex Bearing Support

Variations

White Outdoor 17018-0637

No Longer Available SUPPORT-BEARING - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 741-0504

Flange Bearing .879" l.D.

$

$

Not available

8

White Outdoor 736-0270

Bell-Wash. .265" l.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 14760

Link 4.58" Lg.

$

$

Not available

10

White Outdoor 16832

Drive Engagement Cam

$

$

Not available

11

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 732-0569

Torsion Spring-R.H.
(Superseded to 732-0569A)

$

$

Not available

White Outdoor 732-0570

Torsion Spring-L.H.
(Superseded to 732-0570A)

Note: (Not Shown)

$

$

Not available

14

White Outdoor 738-0754

Shoulder Bolt ,437n Dia.

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0329

L-Wash 1/4" 1 D
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

18

White Outdoor 738-0732

Drive Shaft Ass'y.

$

$

Not available

19

White Outdoor 736-0160

Fl-Wash. .631" l.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

20

White Outdoor 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

21

White Outdoor 736-0242

Bell-Wash. .345" l.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 16531

Pivot Bracket-R.H.

$

$

Not available

23

16534

Engagement Arm-L.H.

$

$

Not available

24

White Outdoor 710-0134

Carriage Bolt t/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 17019

Rear Pinion Pivot Cover

Variations

White Outdoor 17019-0637

No Longer Available COVER-PINION PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

26

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38 Lg.

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 738-0739

Shoulder Nut

$

$

Not available

28

14749

Pivot Bracket-L.H.

$

$

Not available

29

White Outdoor 710-0892

Hex Wash. Hd. AB-Tap Scr. 1/4 x.62 Lg.
(Superseded to 910-0892)

$

$

Not available

30

White Outdoor 17017

Hex Bearing Axle Brkt.

Variations

White Outdoor 17017-0637

No Longer Available BRACKET-AXLE BEARI - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 746-0606

Barrel Cable Hold-Down-R.H.

$

$

Not available

32

White Outdoor 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 8

0
