128-166B401 - Yard-Man Walk-Behind Mower (1988) Parts Parts Diagram

Walk-Behind Mower

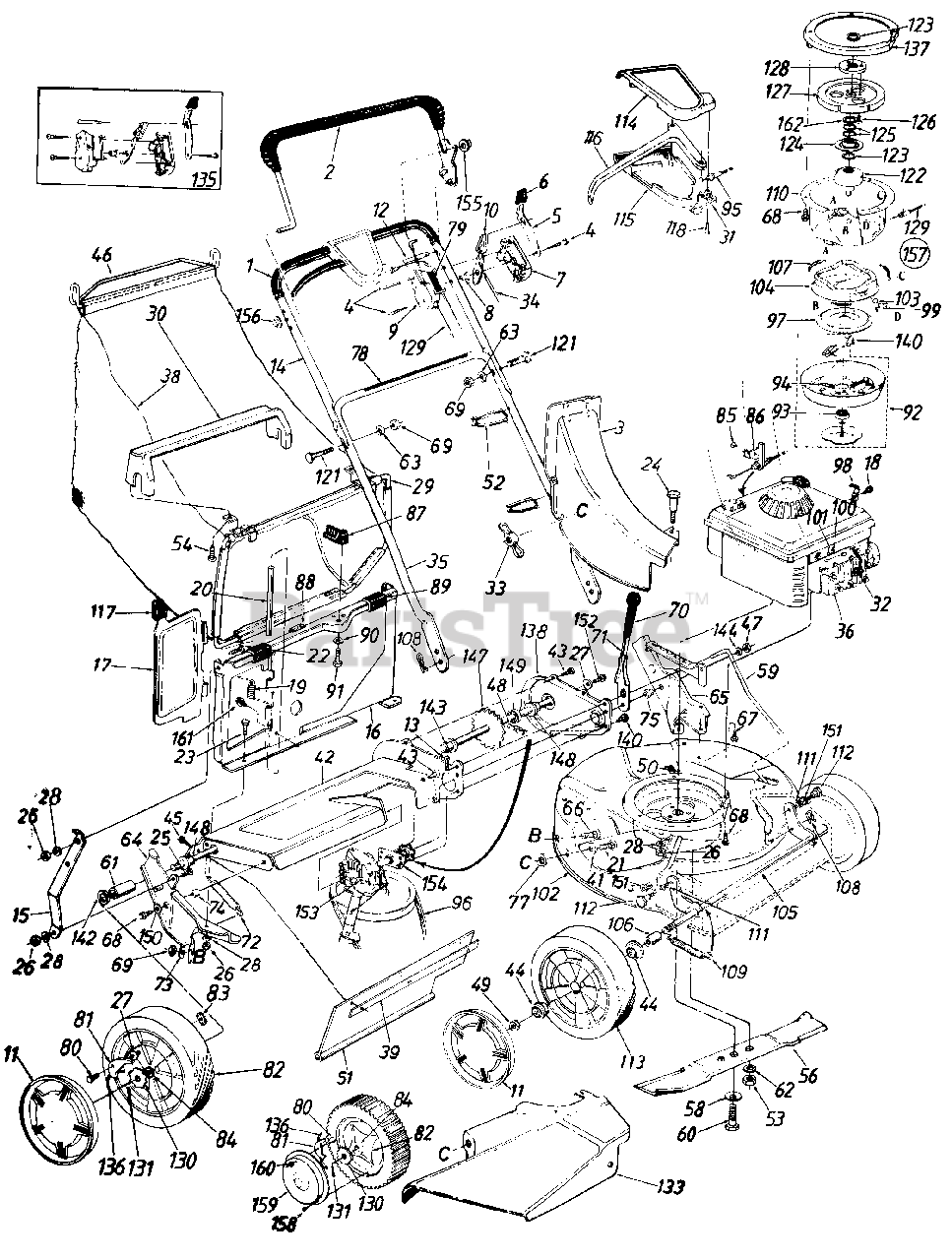

Parts Parts Diagram

  • Title

1

MTD 720-0225

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 16739

Control Handle Ass'y.-L.H.

$

$

Not available

3

MTD 731-0734

Top Discharge Chute Ass'y.

$

$

Not available

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

MTD 732-0401

Lockout Spring

$

$

Not available

6

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

7

MTD 731-0817

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

Hub Cap

$

$

Not available

MTD 731-0354

Black Hub Cap

$

$

Not available

MTD 731-0975

Silver Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

MTD 731-0981

Silver Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

12

MTD 731-0607

Lock Pin .314" Dia. x 1.75"

$

$

Not available

13

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

14

MTD 749-0437

Upper Handle-Chrome

$

$

Currently unavailable

MTD 749-0439

Upper Handle-Painted
(Superseded to 749-0439E-0637)

$47.99

$

In Stock, only 1 left!

0

15

MTD 16129

Panel Support Brkt.
(Superseded to 16129A-0637)

$11.99

$

Usually ships in 3-6 days

0

16

MTD 17196

Top Catcher Panel Ass'y.

$

$

Not available

17

MTD 17095

Top Discharge Door

$

$

Not available

18

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

MTD 732-0483

Torsion Spring
(Superseded to 732-0483A)

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

23

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

MTD 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special

$17.99

$

Usually ships in 3-6 days

0

25

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

29

MTD 16702

Front Grass Catcher Frame

$

$

Not available

30

MTD 731-0801

Grass Catcher Handle

$

$

Not available

31

MTD 731-0619

S.P. Control Cover

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0388

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0672

Throttle Control Wire 58" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0505

Lower Handle-Chrome
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

MTD 749-0504

Lower Handle-Painted
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

38

MTD 764-0212

21" Top Discharge Grass Bag-Black

$

$

Currently unavailable

MTD 764-0216

21" Top Discharge Grass Bag-Grey

$

$

Not available

39

MTD 14835

Retaining Strip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

42

MTD 17055

Chain-Axle Ass'y.
(Superseded to 17055B)

$

$

Not available

43

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

MTD 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

MTD 747-0495

Upper Bag Handle

$

$

Not available

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0353

#48 Chain .500" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

49

MTD 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 6

0

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-0672

Rear Flap 3.75" x 17.30" Lg.
(Superseded to 731-0672A)

$31.99

$

Usually ships in 3-6 days

0

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

MTD 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

54

MTD 710-0969

Hex AB-Tap Scr. #12 x 1.0" Lg.

$4.49

$

In Stock, only 2 left!

0

56

MTD 742-0306

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

58

MTD 736-0412

Bell-Wash. .46" I.D. x .88" O.D.

$

$

Not available

59

MTD 747-0510

Height Adj. Rod 19.42" Ig.

$

$

Not available

60

MTD 710-1002

Hex Bolt 7/16-20 x 2.0" Lg. (Grade 5)

$6.99

$

Usually ships in 3-6 days

0

61

MTD 748-0190

Spacer .513" I.D. x .703" O.D. x .69" Lg.

$6.49

$

In Stock, Qty 11

0

62

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-1007

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.5" Lg.

$6.49

$

Usually ships in 3-6 days

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

MTD 732-0473

Height Adj. Lever
(Superseded to 732-0473B)

$

$

Not available

72

MTD 732-0481

Extension Spring .50" O.D. x 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0526

Spacer .385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

MTD 750-0624

Shld. Spacer .500" Dia. x .1 00

$

$

Not available

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, Qty 20+

0

78

MTD 777-5815

Instruction Label

$

$

Currently unavailable

79

MTD 777-5811

Control Label

$

$

Not available

80

MTD 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

MTD 748-0188

Pawl
(Superseded to 948-0188B)

$

$

Not available

82

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-0922

Waffle Tread (7 x 1.5)

$

$

Not available

MTD 734-1511

"S" Wave Tread (7 x 2.0)

$

$

Not available

MTD 734-1411

Gear Tread (8 x 1.75)

$

$

Not available

MTD 734-1510

"S" Wave Tread (8 x 2.0)
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

83

MTD 712-0189

Flat Weld Nut 1/4-20 Thd.

$

$

Not available

84

MTD 741-0486

Sleeve Bearing 1/2" I.D.

$

$

Not available

85

MTD 728-0171

Pop Rivet .156" Dia. x .379"

$

$

Not available

86

MTD 14924

Cable Bracket

$

$

Not available

87

MTD 720-0224

Grass Catcher Locking Knob
(Superseded to 920-0224)

$

$

Not available

88

MTD 722-0134

Foam Strp 1" Lg.

$

$

Currently unavailable

89

MTD 731-0883

Panel Clip

$

$

Not available

90

MTD 736-0271

Spring Wash. .32" I.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

91

MTD 710-0875

Hex Tap Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

92

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

93

MTD 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

94

MTD 732-0396

Comp. Spring .35" O.D. x 2.0" Lg.

$

$

Not available

95

MTD 746-0650

S.P. Cable x 50" Lg.
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

96

MTD 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 9

0

97

MTD 14304

Clutch Cone

$

$

Not available

98

MTD 12894

Casing Clamp

$

$

Not available

99

MTD 731-0520

Ball Block

$

$

Not available

100

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

MTD 751-0463

Casing Clamp

$

$

Not available

102

MTD 17075

21" Deck Ass'y.

Variations

MTD 17075-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

103

MTD 741-0326

Steel Ball .50" Dia.

$

$

Not available

104

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

105

MTD 10662

Front Axle Ass'y.

$

$

Currently unavailable

106

MTD 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

$

$

Not available

107

MTD 732-0397

Ext. Spring 1.75" Lg.

$

$

Not available

108

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

109

MTD 732-0482

Extension Spring .50" O.D. x 3.20" Lg.

$

$

Not available

110

MTD 14309

Clutch Housing

$

$

Currently unavailable

111

MTD 736-0221

Intern. L-Wash. 3/8 I.D.*

$

$

Not available

112

MTD 738-0705

Shld. Bolt .623" Dia. x .425
(Superseded to 938-0705)

$

$

Not available

113

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-0922

Waffle Tread (7 x 1.5)

$

$

Not available

MTD 734-1511

"S" Wave Tread (7 x 2.0)

$

$

Not available

MTD 734-1411

Gear Tread (8 x 1.75)

$

$

Not available

MTD 734-1510

"S" Wave Tread (8 x 2.0)
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

114

MTD 731-0617

Self-Propelled Control Cover
(Superseded to 731-0617A)

$

$

Not available

115

MTD 731-0618

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

117

MTD 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

118

MTD 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

121

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

MTD 756-0504

Fixed Pulley Adapter

$

$

Not available

123

MTD 736-0409

Serrated Washer 1.0" I.D.
(Superseded to 936-0409)

$

$

Not available

124

MTD 756-0503

Serrated Pulley Half

$7.99

$

Usually ships in 3-6 days

0

125

MTD 736-0408

Wave Washer 1.005" I.D.
(Superseded to 936-0447)

$4.49

$

In Stock, Qty 20+

0

126

MTD 710-0618

Flat HD Tap Scr. 1/4-20 x .625" Lg.

$

$

Not available

127

MTD 748-0319

Flywheel

$

$

Not available

128

MTD 748-0320

Flywheel Adapter

$

$

Not available

129

MTD 746-0406

Control Cable-49" Lg.

$

$

Not available

130

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 15

0

131

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 2 left!

0

133

MTD 731-0886

Side Chute Deflector Ass'y.

$

$

Not available

135

MTD 753-0431

Kit-Control Housing Comp.

$

$

Not available

136

MTD 10622

Spring-Nylon
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

137

MTD 17176

Engine Mounting Plate Cover

$

$

Not available

138

MTD 17053

Chain Cover

$

$

Not available

140

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

142

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 2 left!

0

143

MTD 741-0522

Hex Flange Brg. .506" I.D.

$

$

Not available

144

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

147

MTD 738-0719

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

MTD 741-0324

Hex Flange Bearing .506" I.D. Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

MTD 736-0160

Fl-Wash. .531" I.D. x .9301' O.D.

$4.49

$

In Stock, only 2 left!

0

150

MTD 736-0179

Fl-Wash. .531" I.D. x 1.25" O.D.

$4.99

$

In Stock, only 2 left!

0

151

MTD 741-0491

Flanged Nyliner Brg.

$5.49

$

In Stock, only 3 left!

0

152

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

MTD 717-0417

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500

Hex Bearing Cup
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

155

MTD 726-0245

Push Cap

$

$

Not available

156

MTD 726-0135

Push Cap

$6.99

$

In Stock, only 1 left!

0

157

MTD 717-0845

Blade Brake Clutch Ass'y. Comp.

$

$

Currently unavailable

158

MTD 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

$

$

Not available

159

MTD 10647

Hub Cap

$

$

Not available

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

161

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

162

MTD 736-0405

Serrated Washer 1.0" I.D.

$

$

Not available
