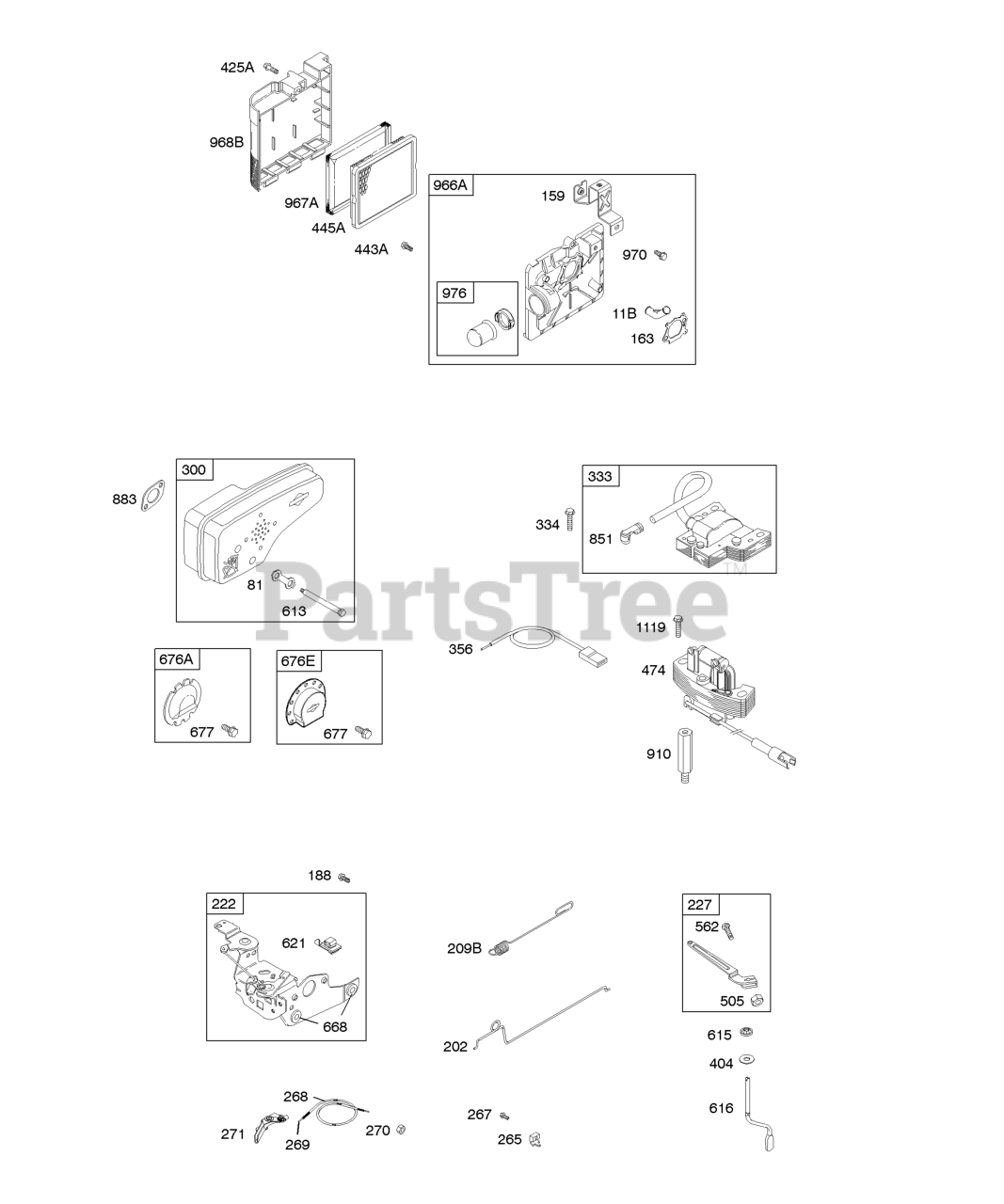

127H07-0112-E1 - Briggs & Stratton Vertical Engine Air Cleaner, Alternator, Controls, Electrical, Exhaust System, Governor Spring, Ignition Parts Diagram

Vertical Engine

Air Cleaner, Alternator, Controls, Electrical, Exhaust System, Governor Spring, Ignition Parts Diagram

  • Title

11B

Briggs & Stratton 691923

Tube-Breather

$9.49

$

In Stock, only 1 left!

0

81

Briggs & Stratton 691740

Lock-Muffler Screw

$5.49

$

In Stock, Qty 5

0

159

Briggs & Stratton 691753

Bracket-Air Cleaner Primer
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

188

Briggs & Stratton 693399

Screw

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 691829

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209B

Briggs & Stratton 691291

Spring-Governor

$7.49

$

In Stock, only 3 left!

0

222

Briggs & Stratton 790143

Bracket-Control

Note: (Remote/Manual Friction)(Primer)

$44.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690783

Lever-Governor Control

$15.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 692038

Muffler

Note: (Super Lo Tone)

$29.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

425A

Briggs & Stratton 690670

Screw

Note: (Air Cleaner Cover)

$5.99

$

In Stock, only 4 left!

0

443A

Briggs & Stratton 692523

Screw

Note: (Air Cleaner Primer Base)

$7.49

$

In Stock, only 2 left!

0

445A

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

474

Briggs & Stratton 691991

Alternator

$118.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 92613

Bolt

Note: (Governor Control Lever)

$

$

Not available

613

Briggs & Stratton 691340

Screw

Note: (Muffler)

$4.99

$

In Stock, Qty 7

0

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 698801

Crank-Governor

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

668

Briggs & Stratton 493823

Spacer

$6.49

$

Usually ships in 2-12 days

0

676A

Briggs & Stratton 393756

Deflector-Muffler
(Superseded to 396548)

$16.99

$

Usually ships in 2-12 days

0

676E

Briggs & Stratton 393760

DEFLECTOR, Muffler

$9.49

$

In Stock, only 1 left!

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 8

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691881

Gasket-Exhaust

$8.99

$

Usually ships in 2-12 days

0

910

Briggs & Stratton 691094

Stud

Note: (Alternator)

$10.99

$

In Stock, only 2 left!

0

966A

Briggs & Stratton 496116

Base-Air Cleaner Primer
(Superseded to 795259)

$32.99

$

In Stock, only 3 left!

0

967A

Briggs & Stratton 493537S

Filter-Pre Cleaner

$6.49

$

In Stock, Qty 19

0

968B

Briggs & Stratton 692298

Cover-Air Cleaner

$27.99

$

In Stock, only 1 left!

0

970

Briggs & Stratton 691669

Screw

Note: (Air Cleaner Primer Bracket)

$3.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0

1119

Briggs & Stratton 691648

Screw

Note: (Alternator)

$4.99

$

Usually ships in 2-12 days

0
