127 (19A-127-100) - Cub Cadet Rear Mount Weight Kit att2 General Assembly 1 Parts Diagram

Rear Mount Weight Kit

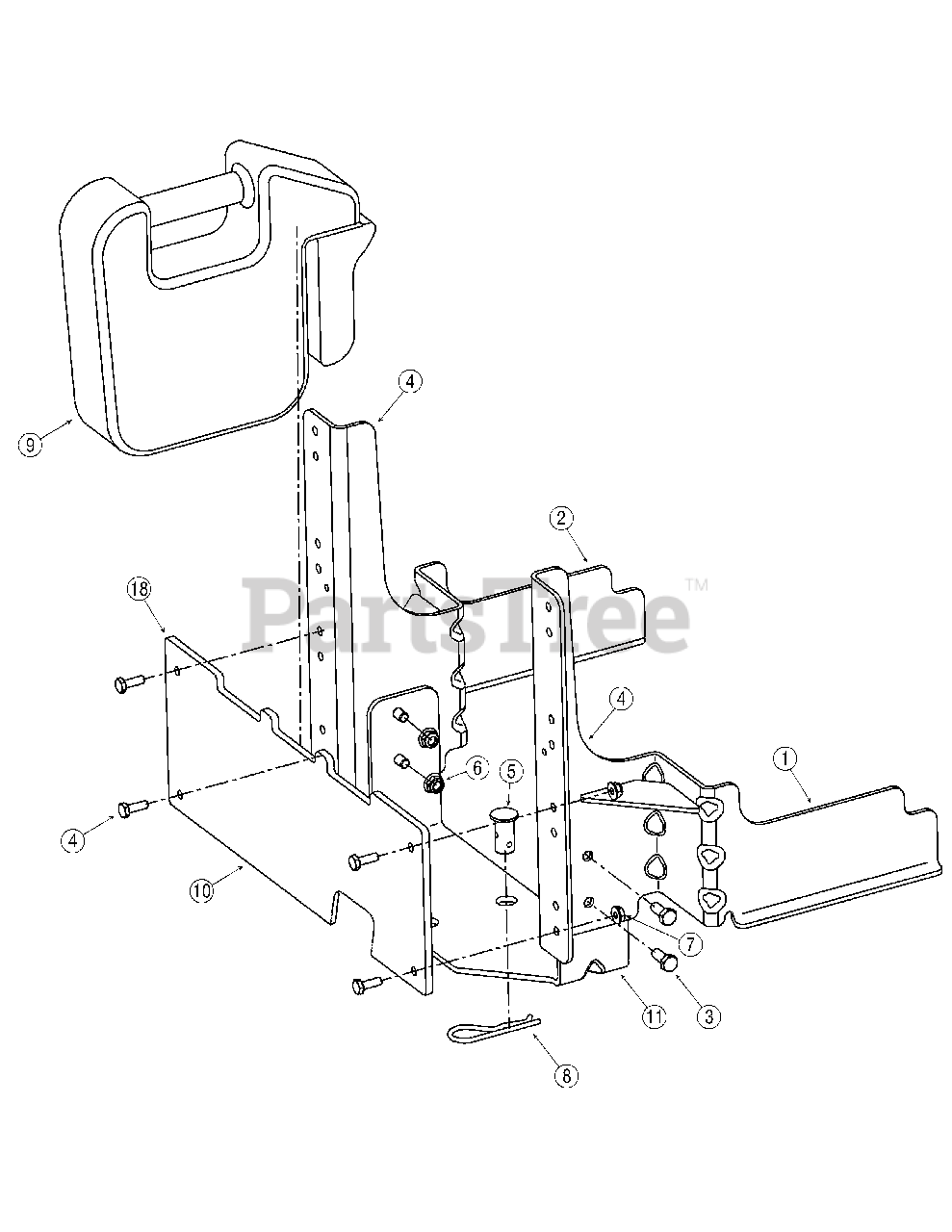

General Assembly 1 Parts Diagram

  • Title

1

MTD 683-04348

Mounting Bracket, Right Hand

Variations

MTD 683-04348-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-04350

Mounting Bracket, Left Hand
(Superseded to 683-04350-0637)

Variations

MTD 683-04350-0637

Fast Bracket Assembly - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

3

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3015

Hex Head Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

5

MTD 711-0309A

Clevis Pin, .62 Dia.

$12.99

$

In Stock, Qty 6

0

6

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 16

0

9

MTD 759-3389

Suitcase Weight, 45 lbs.
(Superseded to 490-900-M059)

$86.99

$

Usually ships in 3-6 days

0

10

MTD 783-05244

Rear Weight Plate
(Superseded to 783-05244-0637)

Variations

MTD 783-05244-0637

PLATE-SUITCASE WEI - POWDER BLACK (0637)

$244.99

$

Usually ships in 3-6 days

0

$244.99

$

Usually ships in 3-6 days

0

11

MTD 783-0765

Cross Support Bracket
(Superseded to 783-0765-0637)

Variations

MTD 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0
