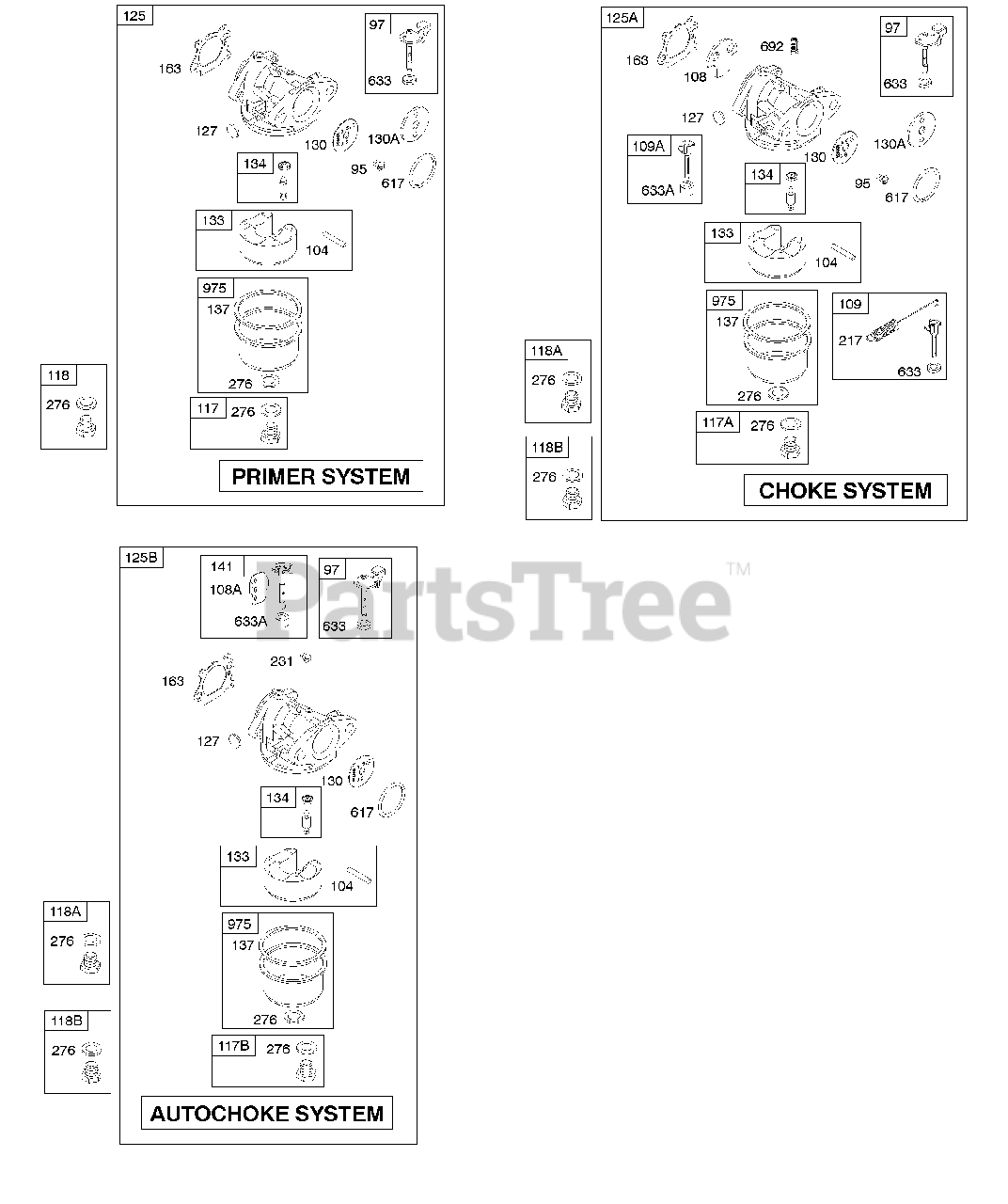

126T07-5213-B1 - Briggs & Stratton Vertical Engine Carburetor Parts Diagram

Vertical Engine

Carburetor Parts Diagram

  • Title
95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 795881

Shaft-Throttle

$14.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 10

0

108

$9.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 795935

Valve-Choke

Note: Used After Code Date 08031200

$9.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 790844

Valve-Choke

Note: Used Before Code Date 08031300

$9.49

$

In Stock, only 1 left!

0

109

$14.99

$

In Stock, only 2 left!

0

109A

$15.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 498978

Jet-Main

Note: (Standard)

$

$

Not available

117A

Briggs & Stratton 498981

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

117B

Briggs & Stratton 691428

Jet-Main

Note: (Standard) Used After Code Date 07020600 Used Before Code Date 08062000

$19.99

$

Usually ships in 2-12 days

0

117B

Briggs & Stratton 697355

Jet-Main

Note: (Standard) Used Before Code Date 07020700

$

$

Not available

117B

Briggs & Stratton 498977

Jet-Main

Note: (Standard) Used After Code Date 08061900

$

$

Not available

118A

Briggs & Stratton 692677

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 799870

Carburetor

Note: (Choke System)

$

$

Not available

127

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 696564

Valve-Throttle

$8.99

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

Note: (1/16" Thick)

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 13

0

141

Briggs & Stratton 796193

Kit-Choke Shaft

Note: Used After Code Date 08031200

$13.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 795629

Gasket-Air Cleaner

$3.49

$

In Stock, Qty 20+

0

217

Briggs & Stratton 690354

Spring-Choke Return

$7.49

$

In Stock, only 1 left!

0

231

Briggs & Stratton 691636

Screw

Note: (Choke Valve)

$3.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 7

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

692

Briggs & Stratton 590931

Spring-Detent

$5.49

$

In Stock, Qty 11

0

975

$

$

Not available
