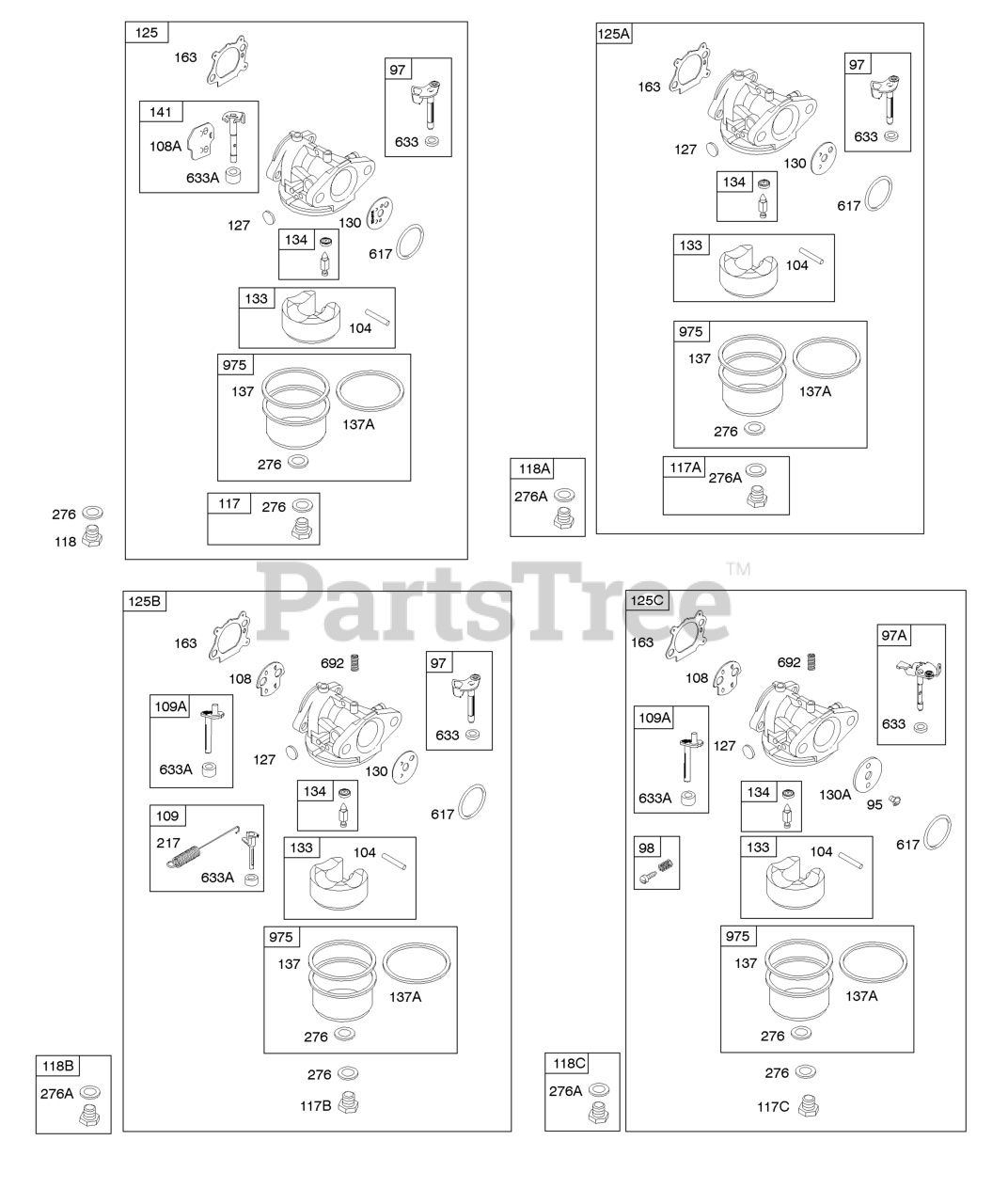

126M02-0015-F1 - Briggs & Stratton Vertical Engine Carburetor Parts Diagram

Vertical Engine

Carburetor Parts Diagram

  • Title
95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 696565

Shaft-Throttle

Note: (Plastic)

$15.99

$

In Stock, only 3 left!

0

98

Briggs & Stratton 398185

Kit-Idle Speed

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 10

0

108

$9.49

$

Usually ships in 2-12 days

0

108A

$9.49

$

Usually ships in 2-12 days

0

109A

$15.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 590440

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 798661

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 799866

Carburetor

Note: (Autochoke System)

$

$

Not available

127

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 696564

Valve-Throttle

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

Note: (Mow N Stow)

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 10

0

137A

Briggs & Stratton 693981

Gasket-Float Bowl

Note: (1/16" Thick)

$3.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 796193

Kit-Choke Shaft

$13.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 795629

Gasket-Air Cleaner

$3.49

$

In Stock, Qty 20+

0

217

Briggs & Stratton 690354

Spring-Choke Return

$7.49

$

In Stock, only 1 left!

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 7

0

276A

Briggs & Stratton 797632

Washer-Sealing

$7.99

$

In Stock, Qty 13

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

692

Briggs & Stratton 590931

Spring-Detent

$5.49

$

In Stock, Qty 11

0

975

$

$
