126E899F190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1996) Main Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

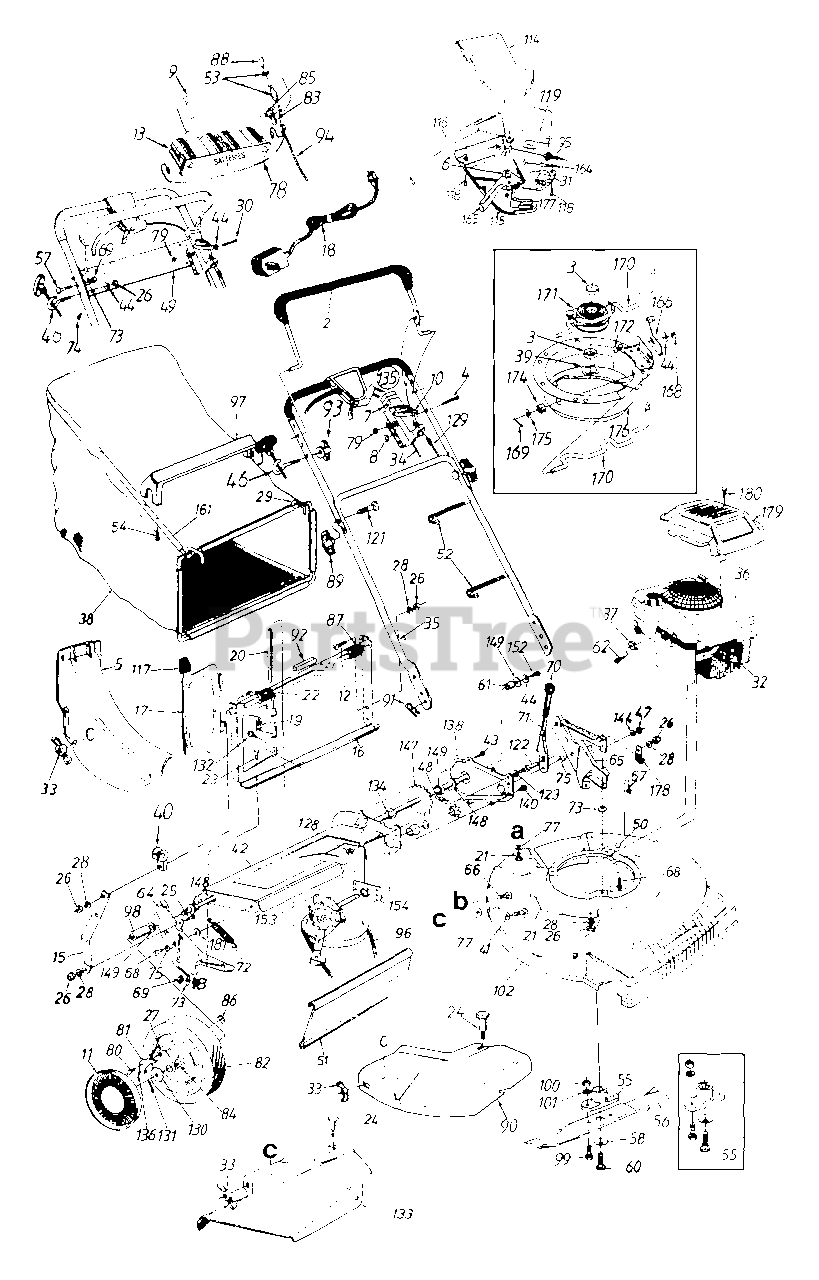

Main Assembly Parts Diagram

  • Title

?1

White Outdoor 720-0225

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

2

White Outdoor 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

3

White Outdoor 750-0968

Spacer .895" I.D. x 1" O.D.
(Superseded to 950-0968)

$5.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

5

White Outdoor 731-1023

Rear Discharge Chute Ass'y.

$

$

Not available

6

White Outdoor 713-0397

3 Tooth Rack Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

7

White Outdoor 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

8

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

710-0891A

Battery Tray

$

$

Not available

10

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

11

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-0946

Truss Mach. Scr. 1/4-20 x .62"

$3.99

$

Usually ships in 3-6 days

0

13

White Outdoor 725-1276

Battery Pack - 12 Volt
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

?14

White Outdoor 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

White Outdoor 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

15

White Outdoor 16129A

Panel Support Brkt.
(Superseded to 16129A-0637)

Variations

White Outdoor 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

16

White Outdoor 16862A

Rear Catcher Panel Ass'y.

Variations

White Outdoor 16862A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16862A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16862A-0638

PANEL ASSY-CATCHER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16862A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 16862A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 16862A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

White Outdoor 17095A

Rear Discharge Door

Variations

White Outdoor 17095A-0637

DOOR-TOP DISCHARGE - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

19

White Outdoor 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

20

White Outdoor 747-0514

Pivot Pin

$

$

Not available

21

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4-20 x .38"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 738-0704

Shoulder Bolt Special

$17.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

28

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

White Outdoor 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

White Outdoor 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

30

White Outdoor 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$7.49

$

Usually ships in 3-6 days

0

31

White Outdoor 731-0906

S.P. Control Cover
(Superseded to 753-0717)

$

$

Not available

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

33

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 746-0674

Throttle Cable 61"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

White Outdoor 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

White Outdoor 749-0907-0637

LOWER HANDLE - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

37

White Outdoor 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

38

White Outdoor 764-0257

Grass Bag
(Superseded to 964-0082)

$

$

Not available

39

White Outdoor 736-0526

Wave Wash. .88" I.D. x 1.38" O.D.

$6.99

$

Usually ships in 3-6 days

0

40

White Outdoor 719-0279

Rope Guide - Lower

$15.99

$

Usually ships in 3-6 days

0

41

White Outdoor 736-0204

Ft-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 8

0

42

White Outdoor 17055B

Chain - Axle Ass'y.

Variations

White Outdoor 17055B-0483

No Longer Available Axle Assy-chain - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17055B-0498

AXLE ASSY-CHAIN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17055B-0629

No Longer Available Axle Assy-chain - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17055B-0648

No Longer Available AXLE ASSY-CHAIN - TECH GRAY (0648)

$

$

Not available

White Outdoor 17055B-0650

AXLE ASSY-CHAIN - RED METALLIC (0650)

$

$

Not available

White Outdoor 17055B-0662

No Longer Available Axle Assy-chain - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17055B-0667

AXLE ASSY-CHAIN - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17055B-0691

AXLE ASSY-CHAIN - BLACK JACK (0691)

$

$

Not available

$

$

43

White Outdoor 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

?45

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 710-1205

Rope Guide - Upper

$3.99

$

In Stock, only 3 left!

0

47

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

White Outdoor 713-0353

#48 Chain .500" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

49

White Outdoor 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

White Outdoor 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 731-0564

Plug

$

$

Not available

51

White Outdoor 731-1488

Rear Flap

$28.99

$

Usually ships in 3-6 days

0

52

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

53

White Outdoor 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

54

White Outdoor 710-1025

Hex AB-Tap Scr. #12 x 1.25"

$6.49

$

Usually ships in 3-6 days

0

55

White Outdoor 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

56

White Outdoor 742-0721

21" Mulching Blade
(Superseded to 942-0721)

$32.99

$

Usually ships in 3-6 days

0

57

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

58

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

60

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5"

$3.99

$

In Stock, Qty 9

0

61

White Outdoor 748-0190

Spacer .513" I.D.

$6.49

$

In Stock, only 1 left!

0

62

White Outdoor 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

?63

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 16136C

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

Variations

White Outdoor 16136C-0637

BRACKET ASSY-RH HN - POWDER BLACK (0637)

$

$

Not available

$

$

65

White Outdoor 16137C

L.H. Handle Wheel Brkt. Ass'y.

Variations

White Outdoor 16137C-0637

BRACKET ASSY-HANDLE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654A

Hex TT-Tap Scr. 3/8-16

$4.49

$

In Stock, only 3 left!

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

White Outdoor 732-0606

Height Adj. Lever

$

$

Not available

72

White Outdoor 732-0481

Extension Spring 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 710-1220

Truss Mach. Tap Scr..75" Lg.

$4.99

$

In Stock, only 4 left!

0

75

White Outdoor 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

77

White Outdoor 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, only 3 left!

0

78

White Outdoor 725-1442

Wire Harness
(Superseded to 925-1442)

$

$

Not available

79

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

80

White Outdoor 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

White Outdoor 748-0188B

Pawl - R.H.
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

White Outdoor 748-0381

Pawl - L.H.

Note: Not shown

$11.99

$

In Stock, only 1 left!

0

82

White Outdoor 734-1794

Wheel Ass'y. Comp.

$

$

Not available

83

White Outdoor 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

84

White Outdoor 741-0486B

Sleeve Bearing 1/2" I.D.

$

$

Not available

85

White Outdoor 725-1428

Fuse Holder
(Superseded to 925-1428)

$

$

Not available

White Outdoor 725-0298

Fuse 7-1/2 Amp
(Superseded to 925-0298)

Note: Not shown. For model E899F only.

$

$

Not available

86

White Outdoor 712-0414

Flat Nut 1/4-20 Thd.

$4.49

$

In Stock, only 4 left!

0

87

White Outdoor 731-0880

Panel Clip

$3.99

$

Usually ships in 3-6 days

0

88

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

89

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

90

White Outdoor 731-1343

Mulching Plug
(Superseded to 731-1343A)

$

$

Not available

91

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 722-0139

Foam Strip 1/4" x 1" Lg.

$

$

Not available

93

White Outdoor 720-0279

Wing Nut 1/4-20 Thd. (899D)

$4.49

$

Usually ships in 3-6 days

0

94

White Outdoor 725-1538

Harness Extension

$

$

Not available

95

White Outdoor 746-0710A

S.P. Cable - 50" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

White Outdoor 754-0343

"V" - Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

97

White Outdoor 731-0801

Bag Handle

$

$

Not available

98

White Outdoor 711-0313

Sleeve .526" I.D.
(Superseded to 911-0313)

$

$

Not available

99

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

100

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

101

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

102

White Outdoor 17051B

21" Deck Ass'y.

Variations

White Outdoor 17051B-0498

No Longer Available DECK-ASSEMBLY-21IN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17051B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17051B-0662

No Longer Available DECK-ASSEMBLY-21IN - OYSTER GRAY (0662)

$

$

Not available

$

$

114

White Outdoor 731-0904

Self-Propelled Control Cover
(Superseded to 753-0717)

$

$

Not available

115

White Outdoor 731-0905

Self-Propelled Control Cover
(Superseded to 753-0717)

$

$

Not available

116

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

117

White Outdoor 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

118

White Outdoor 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

119

White Outdoor 16864

6-Speed Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

?120

White Outdoor 736-0211

Fl-Wash. .285" I.D. x 1.25"

$6.99

$

In Stock, Qty 7

0

121

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

122

White Outdoor 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

123

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

128

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

129

White Outdoor 746-0912

Control Cable - 44"
(Superseded to 946-0912)

$26.99

$

In Stock, only 1 left!

0

130

White Outdoor 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1"

$3.99

$

Usually ships in 3-6 days

0

132

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

133

White Outdoor 731-0885

Side Chute Deflector Ass'y.
(Superseded to 731-0884)

$

$

Not available

134

White Outdoor 741-0522

Hex Flange Bearing

$

$

Not available

135

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Incl. Ref. 4, 7, 8, 10, 79

$36.99

$

In Stock, only 1 left!

0

136

White Outdoor 10622B

Spring - Nylon

$5.49

$

In Stock, Qty 20+

0

138

White Outdoor 17053A

Chain Cover

Variations

White Outdoor 17053A-0480

No Longer Available COVER-CHAIN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17053A-0483

No Longer Available COVER-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17053A-0637

No Longer Available COVER-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17053A-0638

No Longer Available COVER-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17053A-0650

No Longer Available COVER-CHAIN - RED METALLIC (0650)

$

$

Not available

White Outdoor 17053A-0662

No Longer Available COVER-CHAIN - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17053A-0665

No Longer Available COVER-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17053A-0674

No Longer Available COVER-CHAIN - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

White Outdoor 710-0599

Hex S-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

144

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

147

White Outdoor 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

White Outdoor 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

152

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

White Outdoor 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

Note: See "Transmission" illustration and parts list.

$234.99

$

Usually ships in 3-6 days

0

154

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

161

White Outdoor 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

White Outdoor 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

164

White Outdoor 746-0706

Spd. Control Cable - 50" Lg.

$

$

Not available

165

White Outdoor 731-0924

6-Spd. Shift Lever

$

$

Not available

166

White Outdoor 17070

Adjustable Cable Brkt.
(Superseded to 17070-0637)

Variations

White Outdoor 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

168

White Outdoor 712-0291

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

169

White Outdoor 714-0507

Cot-Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

170

White Outdoor 747-0684

Shift Rod

$

$

Not available

171

White Outdoor 656-0611

Pulley Ass'y.
(Superseded to 956-0611)

$268.99

$

Usually ships in 3-6 days

0

172

White Outdoor 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

174

White Outdoor 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

175

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

176

White Outdoor 682-7514

Housing Ass'y.

Variations

White Outdoor 682-7514-0637

HOUSING ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

177

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

178

White Outdoor 726-0175

Clamp

$

$

Not available

179

White Outdoor 751B281451

Engine Cover

$

$

Not available

180

White Outdoor 710-1256

Screw #10 x 1.25" Lg.

$5.99

$

In Stock, only 3 left!

0

181

White Outdoor 736-0258

Fl-Wash. .383" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0
