1267 - Toro Lawn Tractor (1967) Part List For 5060 Transmission Parts Diagram

Lawn Tractor

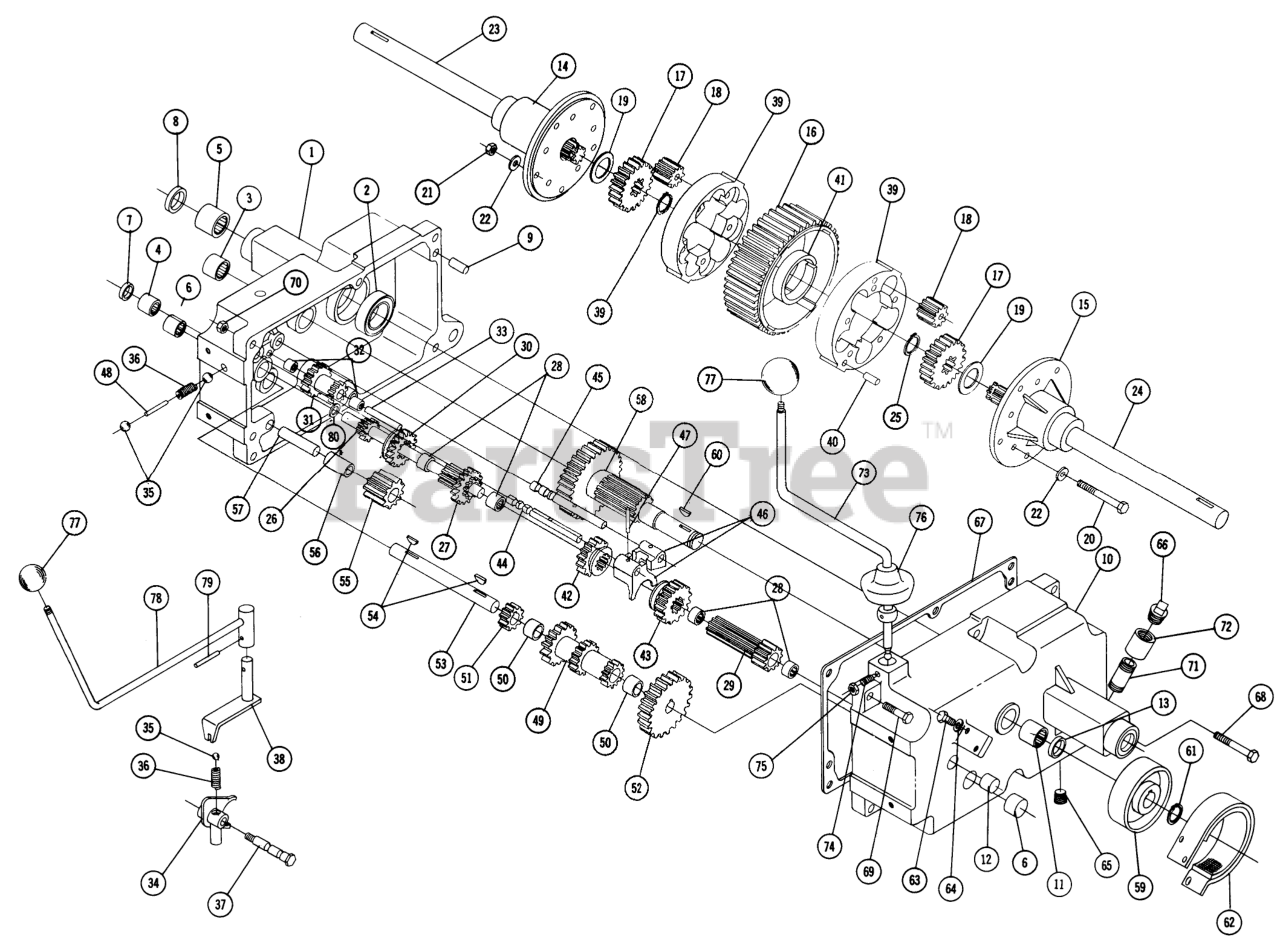

Part List For 5060 Transmission Parts Diagram

  • Title

1

Toro 7066

DISCONTINUED XREF

$

$

Not available

2

Toro 1533

DISCONTINUED

$

$

Not available

3

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

4

Toro 1542

BEARING-NEEDLE

$37.99

$

In Stock, only 2 left!

0

5

Toro 1526

DUP PART SEE $BOOK

$

$

Not available

6

Toro 1529

BEARING-NEEDLE

$43.99

$

Usually ships in 3-6 days

0

7

Toro 1461

See Supercession: 100442
(Superseded to 100442)

$6.49

$

In Stock, Qty 8

0

8

Toro 1213

See Supercession: 100443
(Superseded to 100443)

$11.99

$

Usually ships in 3-6 days

0

9

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

10

Toro 6941

DISCONTINUED PRC4

$

$

Not available

11

Toro 1530

See Supercession: 704019
(Superseded to 704019)

$

$

Not available

12

Toro 1531

DUP PART SEE $BOOK

$

$

Not available

13

Toro 1232

See Supercession: 100863
(Superseded to 100863)

$14.99

$

In Stock, only 4 left!

0

14

Toro 7194

DISCONTINUED

$

$

Not available

15

Toro 7195

DISCONTINUED

$

$

Not available

16

Toro 7196

DISCONTINUED

$

$

Not available

17

Toro 7197

See Supercession: 8053
(Superseded to 8053)

$

$

Not available

18

Toro 7198

See Supercession: 8056
(Superseded to 8056)

$

$

Not available

19

Toro 7199

DISCONTINUED

$

$

Not available

20

Toro 908138-4

Bolt Hex 3 1/4

$

$

Currently unavailable

21

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

22

Toro 920009-4

Washer

$

$

Currently unavailable

23

Toro 7202

See Supercession: 121384
(Superseded to 121384)

$

$

Not available

24

Toro 7203

DISCONTINUED
(Superseded to 121384)

$

$

Not available

25

Toro 7169

DISCONTINUED

$

$

Not available

26

Toro 7201

SHAFT-INPUT

$

$

Not available

27

Toro 7204

GEAR

$

$

Not available

28

Toro 1518

BEARING-NEEDLE

$26.99

$

Usually ships in 3-6 days

0

29

Toro 5175

GEAR

$272.99

$

Usually ships in 3-6 days

0

30

Toro 7205

GEAR-SLIDING

$

$

Not available

31

Toro 7206

See Supercession: 100-1338
(Superseded to 100-1338)

$273.99

$

Usually ships in 3-6 days

0

32

Toro 7207

BEARING-NEEDLE

$30.99

$

Usually ships in 3-6 days

0

33

Toro 7208

GEAR-SHAFT REDUCTION

$11.99

$

In Stock, only 2 left!

0

34

Toro 7209

See Supercession: 116636-03
(Superseded to 116636-03)

$

$

Not available

35

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

36

Toro 3518

See Supercession: 106030
(Superseded to 106030)

$2.99

$

In Stock, only 3 left!

0

37

Toro 7213

BOLT-DETENT

$54.99

$

Usually ships in 3-6 days

0

38

Toro 7214

SHIFT ASM

$40.99

$

Usually ships in 3-6 days

0

39

Toro 7200

BULLT 252

$

$

Not available

40

Toro 933209

DISCONTINUED

$

$

Not available

41

Toro 7235

DISCONTINUED

$

$

Not available

42

Toro 5173

GEAR-HI AND 2ND

$146.99

$

Usually ships in 3-6 days

0

43

Toro 5174

GEAR-LOW AND REVERSE

$192.99

$

Usually ships in 3-6 days

0

44

Toro 5615

RAIL-SHIFT

$116.99

$

Usually ships in 3-6 days

0

45

Toro 5616

RAIL-REAR SHIFT

$78.99

$

Usually ships in 3-6 days

0

46

Toro 3503

FORK-SHIFT

$136.99

$

Usually ships in 3-6 days

0

47

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 9

0

48

Toro 5614

PIN-SHIFT

$

$

Not available

49

Toro 3525

See Supercession: 7269
(Superseded to 7269)

$

$

Not available

50

Toro 1504

BUSHING-BRONZE

$43.99

$

Usually ships in 3-6 days

0

51

Toro 3528

DISCONTINUED

$

$

Not available

52

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

53

Toro 3910

DISCONTINUED

$

$

Not available

54

Toro 937014

Key
(Superseded to 3257-5)

$5.49

$

In Stock, Qty 7

0

55

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$161.99

$

Usually ships in 3-6 days

0

56

Toro 1516

BUSHING

$12.99

$

Usually ships in 3-6 days

0

57

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

58

Toro 4166

DISCONTINUED XREF

$

$

Not available

59

Toro 3902

DISCONTINUED

$

$

Not available

60

Toro 937022

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

61

Toro 936131

See Supercession: 32151-29
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 16

0

62

Toro 4437

See Supercession: 7376
(Superseded to 7376)

$151.99

$

Usually ships in 3-6 days

0

63

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

64

Toro 920081-4

Lockwasher

$

$

Currently unavailable

65

Toro 943460

See Supercession: 285-22
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

66

Toro 943420

See Supercession: 281-2
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

67

Toro 3912

GASKET-TRANSMISSION

$8.99

$

In Stock, only 2 left!

0

68

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

69

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

70

Toro 915113-6

Nut

$

$

Currently unavailable

71

Toro 943322

DISCONTINUED

$

$

Not available

72

Toro 943003

Coupling 3/8 Pipe

$

$

Not available

73

Toro 5632

See Supercession: 95-7684
(Superseded to 95-7684)

Note: Not Included in No. 5060 Assembly.

$171.99

$

In Stock, only 1 left!

0

74

Toro 1239

SETSCREW

Note: Not Included in No. 5060 Assembly.

$10.99

$

In Stock, Qty 8

0

75

Toro 915111-4

Nut 1/4-20

Note: Not Included in No. 5060 Assembly.

$

$

Currently unavailable

76

Toro 3577

COVER-DUST

Note: Not Included in No. 5060 Assembly.

$

$

Not available

77

Toro 1001

DUP PART SEE $BOOK

Note: Not Included in No. 5060 Assembly.

$

$

Not available

78

Toro 7217

See Supercession: 110727
(Superseded to 110727)

Note: Not Included in No. 5060 Assembly.

$79.99

$

Usually ships in 3-6 days

0

79

Toro 933184

PIN-SPIROL

Note: Not Included in No. 5060 Assembly.

$1.49

$

In Stock, Qty 8

0

80

Toro 7418

WASHER-THRUST

$6.49

$

In Stock, only 4 left!

0
