126-7506 - Exmark Bagger for 42" Quest Mower (SN: 316000000 - 399999999) (2016) Frame and Bag Assembly Parts Diagram

Bagger for 42" Quest Mower

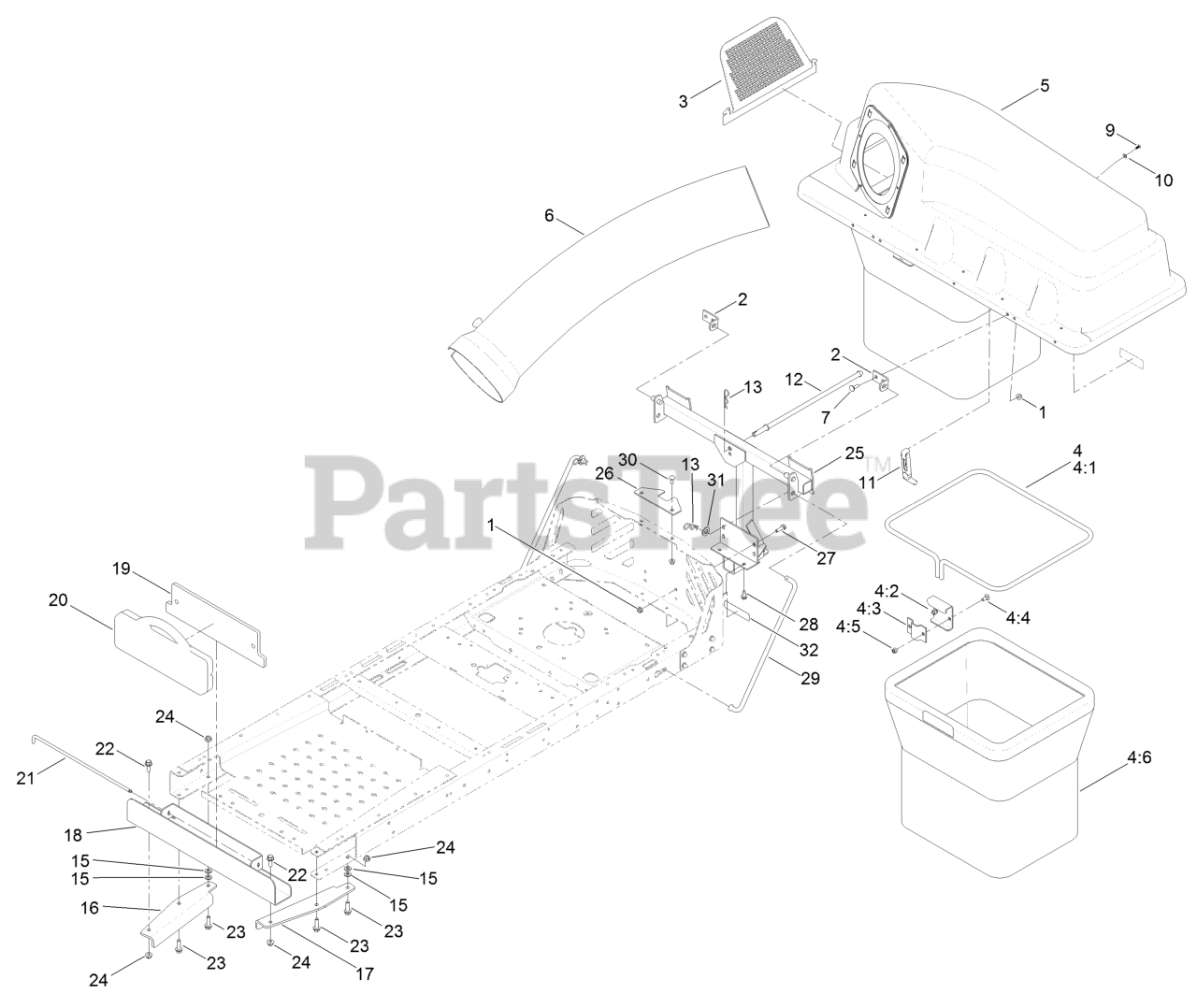

Frame and Bag Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 112-3987

BRACKET-PIVOT, HOPPER

$7.99

$

Usually ships in 3-6 days

0

3

Exmark 112-3993

SCREEN-BAGGER

$29.99

$

In Stock, only 1 left!

0

4

Exmark 112-3994

BAG ASM

$175.99

$

In Stock, only 2 left!

0

4:1

Exmark 114972-03

FRAME-BAG

$111.99

$

Usually ships in 3-6 days

0

4:2

Exmark 114973-03

HANGER-BAG

$25.99

$

In Stock, only 2 left!

0

4:3

Exmark 114974-03

CLAMP

$14.99

$

Usually ships in 3-6 days

0

4:4

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4:5

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4:6

Exmark 110-6674

BAG

$79.99

$

In Stock, only 2 left!

0

5

Exmark 131-8654

BAGGER TOP ASM

$236.99

$

Usually ships in 3-6 days

0

6

Exmark 112-3995

TUBE-BAGGER

$206.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 132-6919

SCREW-PLASTIC, PTH

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

11

Exmark 116-4992

LATCH-RUBBER

$49.99

$

In Stock, only 1 left!

0

12

Exmark 131-4189

ROD-HOOD, DOWN (HOLD)

$22.99

$

In Stock, only 1 left!

0

13

Exmark 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

15

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 120-5502-03

DISCONTINUED

$27.99

$

Usually ships in 3-6 days

0

17

Exmark 120-5497-03

BRACKET-BAGGER WEIGHT, LH

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 120-5491-03

CHANNEL-WEIGHT, BAGGER

$103.99

$

Usually ships in 3-6 days

0

19

Exmark 120-5495-03

PLATE

$72.99

$

Usually ships in 3-6 days

0

20

Exmark 109-9742-03

109-9742-05
(Superseded to 109-9742-05)

$450.99

$

Usually ships in 3-6 days

0

21

Exmark 109-9759

PIN-WEIGHT

$

$

Not available

22

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

23

Exmark 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 131-3969-03

133-4320-03
(Superseded to 144-1829-03)

$270.99

$

Usually ships in 3-6 days

0

26

Exmark 131-3967-03

BRACKET-STABILIZER

$6.49

$

Usually ships in 3-6 days

0

27

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

28

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

29

Exmark 119-8853

ROD-SUPPORT

$22.99

$

In Stock, only 1 left!

0

30

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 131-4036

DECAL

$2.99

$

In Stock, only 3 left!

0
