Exmark 126-6954 - Exmark Ultra Vac Bagger for Radius Mower, Heavy Duty (SN: 408644346 - 411294211) (Rev A) (2021) Blower Assembly-cont Parts Lookup with Diagrams

1

Exmark 126-6289-03

FRAME- BLOWER

$500.99

$

Usually ships in 3-6 days

2

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

3

Exmark 1-653346

BEARING

$71.99

$

In Stock, Qty 7

4

Exmark 103-3815

IMPELLER

$310.99

$

In Stock, Qty 5

5

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

6

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

7

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

8

Exmark 126-9913

UPPER-HOUSING W/DECAL

$426.99

$

Usually ships in 3-6 days

8:2

Exmark 126-7211

DECAL-ULTRAVAC S-SERIES

$7.49

$

Usually ships in 3-6 days

8:3

Exmark 126-9451

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

9

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

10

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

11

Exmark 126-9785

COVER-BEARING W/DECAL

$40.99

$

Usually ships in 3-6 days

11:2

Exmark 126-9595

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

12

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

13

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

14

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

15

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

16

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

17

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

18

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

19

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

20

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

21

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

22

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

23

Exmark 1-653365

SPACER

$27.99

$

Usually ships in 3-6 days

24

Exmark 103-1047

SHEAVE-BLOWER

$75.99

$

In Stock, Qty 6

25

Exmark 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

26

Exmark 1-653366

HUB

$25.99

$

In Stock, only 1 left!

27

Exmark 1-653322

IDLER-INSIDE

$64.99

$

In Stock, only 2 left!

28

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

29

Exmark 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

30

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

31

Exmark 1-654330

ASM, IDLER

$123.99

$

Usually ships in 3-6 days

32

Exmark 103-0130

BUSHING-PIVOT, IDLER

$18.99

$

In Stock, Qty 6

33

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

34

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

35

Exmark 109-1985

ASM,BLOWER CHUTE LHP

$455.99

$

Usually ships in 3-6 days

35:2

Exmark 103-4752-03

PLATE-REINFORCEMENT

$13.99

$

Usually ships in 3-6 days

35:3

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

35:4

Exmark 126-4853

Decal-Blower-Impeller Hazard

$7.49

$

Usually ships in 3-6 days

36

Exmark 1-653596-03

PLATE-BACKING, BLOWER

$50.99

$

In Stock, only 1 left!

37

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

38

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

39

Exmark 103-4080

LATCH-RUBBER

$31.99

$

In Stock, Qty 5

40

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

41

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

42

Exmark 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

43

Exmark 109-1122-01

BUMPER

$119.99

$

In Stock, only 1 left!

44

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

45

Exmark 3274-107

SCREW-HSBH

$5.49

$

In Stock, only 4 left!

46

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

47

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

48

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

49

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

50

Exmark 126-4659

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

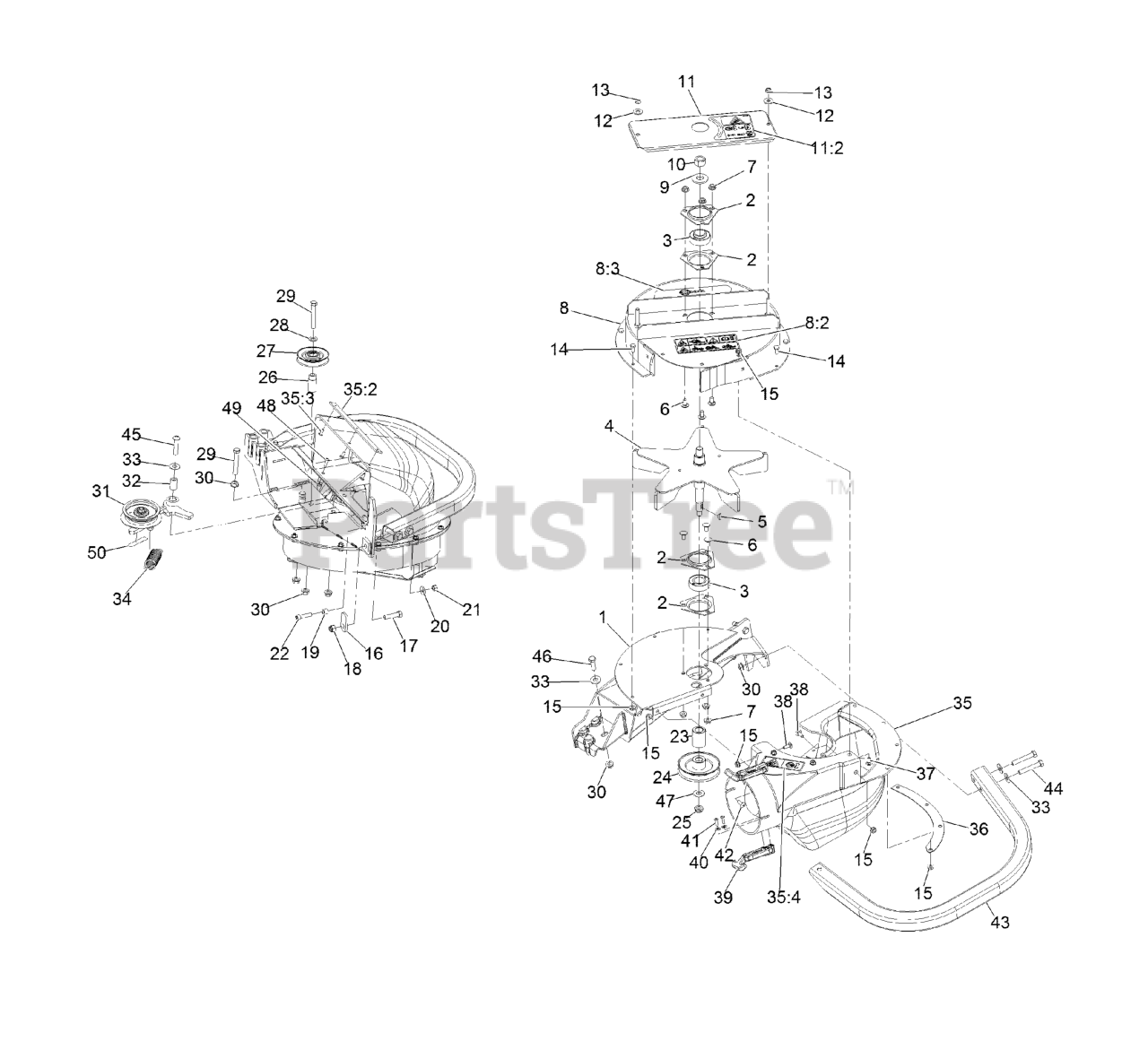

126-6954 - Exmark Ultra Vac Bagger for Radius Mower, Heavy Duty (SN: 408644346 - 411294211) (Rev A) (2021) Blower Assembly-cont Parts Diagram

Blower Assembly-cont Parts Diagram
