126-6954 - Exmark Ultra Vac Bagger for Radius Mower, Heavy Duty (SN: 400000000 - 402082299) (Rev C) (2017) Bagger Top and Mounting Assembly Parts Diagram

Ultra Vac Bagger for Radius Mower, Heavy Duty

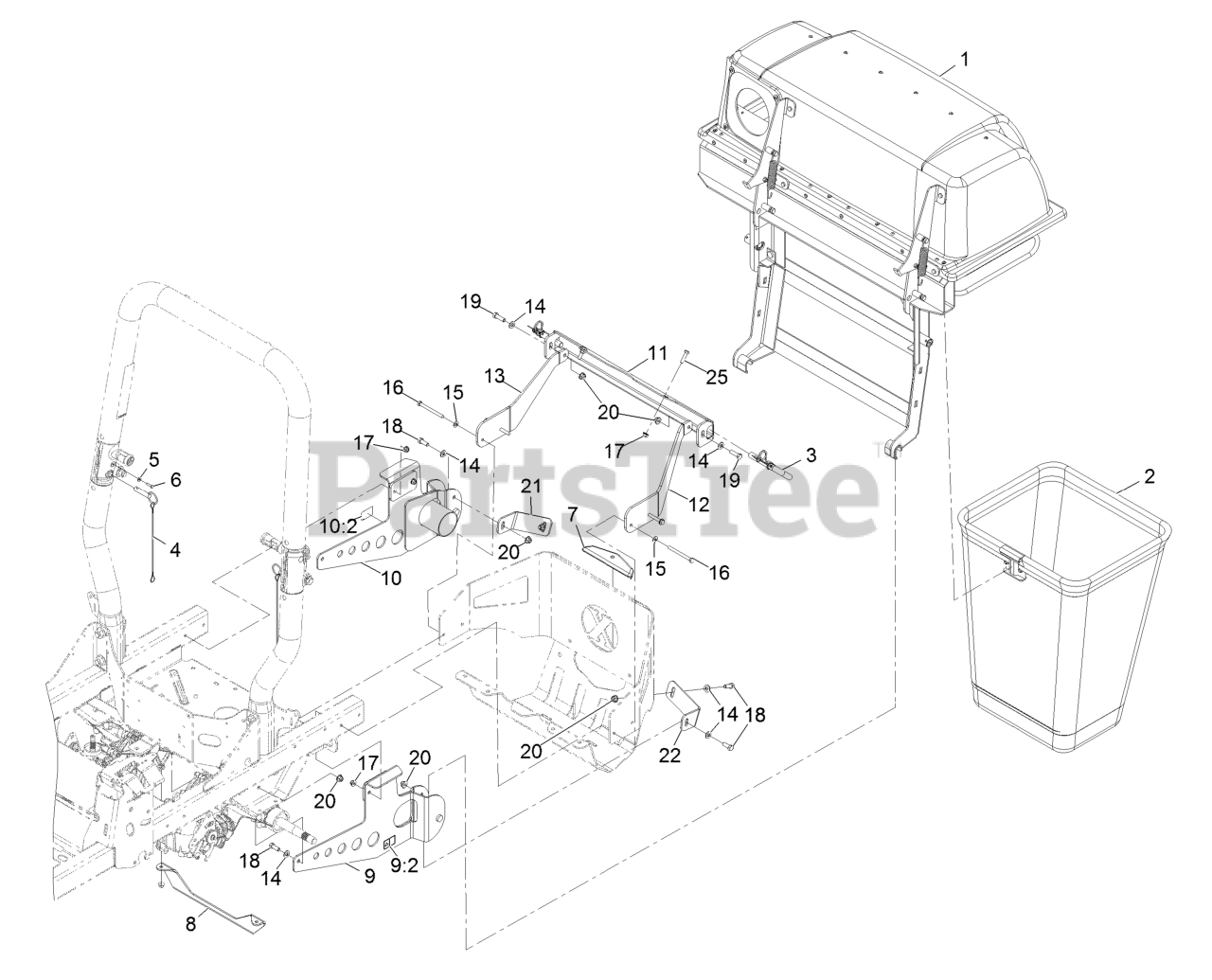

Bagger Top and Mounting Assembly Parts Diagram

  • Title

1

Exmark 109-5941

ASM,Hood Uv 2-Bag

$

$

Currently unavailable

2

Exmark 116-0754

BAG AND FRAME ASM

$191.99

$

Usually ships in 3-6 days

0

3

Exmark 116-0458

PIN-MOUNT, BAGGER

$15.99

$

In Stock, only 2 left!

0

4

Exmark 106-9951

HITCH PIN ASM

$51.99

$

In Stock, only 2 left!

0

5

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 32104-4

SCREW

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 126-8299

COVER-HITCH

$7.99

$

Usually ships in 3-6 days

0

8

Exmark 126-5672-03

SUPPORT-TRANSMISSION

$72.99

$

Usually ships in 3-6 days

0

9

Exmark 126-9661

SUPPORT-BAGGER, LOWER LH

$220.99

$

Usually ships in 3-6 days

0

9:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

10

Exmark 126-9660

SUPPORT-BAGGER, LOWER RH

$234.99

$

Usually ships in 3-6 days

0

10:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

11

Exmark 126-6386-03

MOUNT-BAGGER LWR

$159.99

$

Usually ships in 3-6 days

0

12

Exmark 126-9266-03

BRACKET-UPPER, LH

$42.99

$

Usually ships in 3-6 days

0

13

Exmark 126-9265-03

BRACKET-UPPER, RH

$42.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Exmark AU426-556

BOLT

$0.99

$

Usually ships in 3-6 days

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

18

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 126-9612-03

BRACKET-BAGGER, RH

$20.99

$

Usually ships in 3-6 days

0

22

Exmark 126-9613-03

BRACKET-BAGGER, LH

$20.99

$

Usually ships in 3-6 days

0

25

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0
