126-6122 - Exmark Ultra Vac Bagger for Radius Mower (SN: 400000000 - 402082299) (Rev D) (2017) Blower Assembly 2 Parts Diagram

Ultra Vac Bagger for Radius Mower

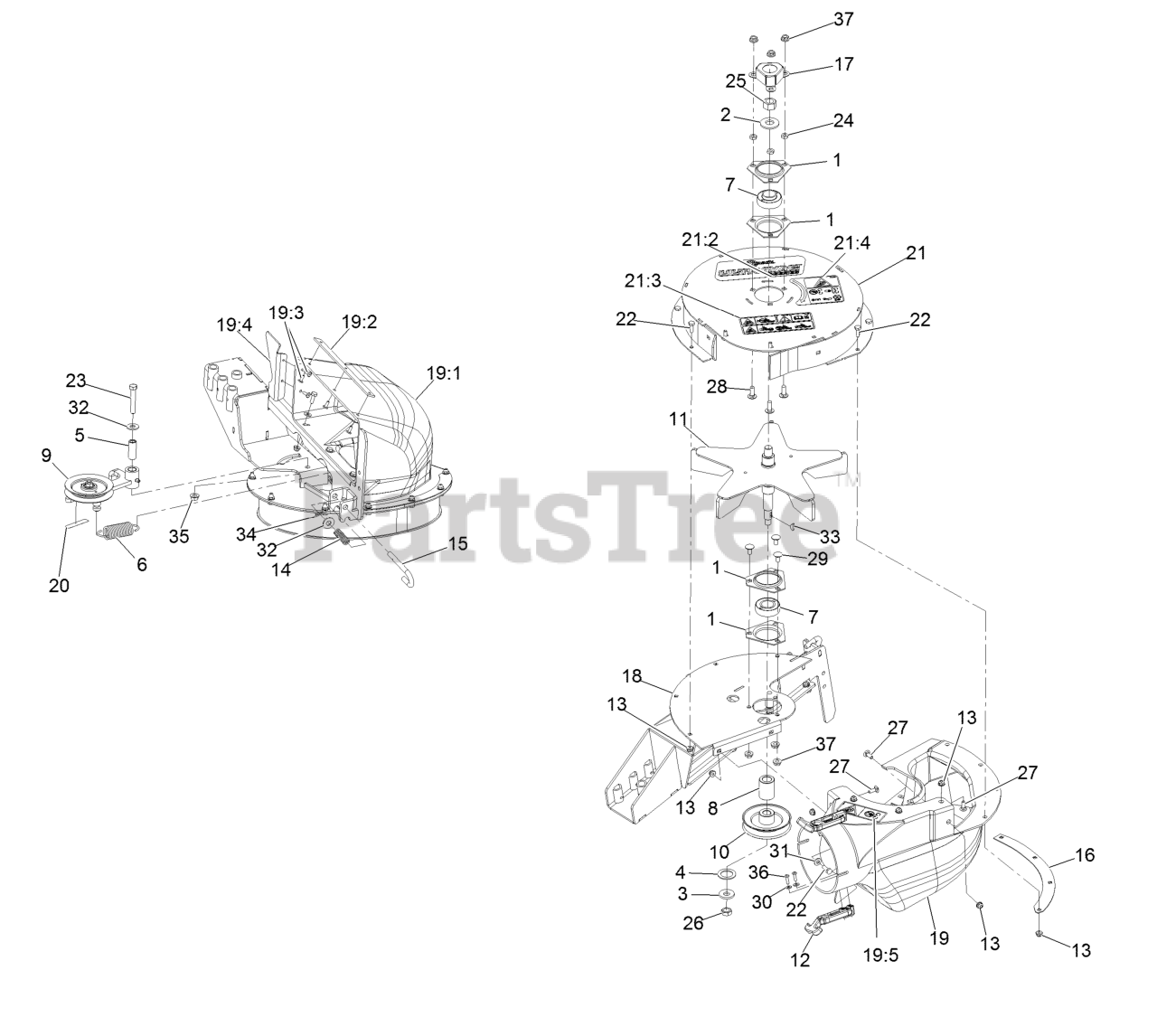

Blower Assembly 2 Parts Diagram

  • Title

1

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

2

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

3

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

4

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

6

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

7

Exmark 1-653346

BEARING

$71.99

$

In Stock, Qty 7

0

8

Exmark 1-653365

SPACER

$27.99

$

Usually ships in 3-6 days

0

9

Exmark 103-0459

Asm, Idler

$

$

Currently unavailable

10

Exmark 103-1047

SHEAVE-BLOWER

$75.99

$

In Stock, Qty 6

0

11

Exmark 103-3815

IMPELLER

$310.99

$

In Stock, Qty 5

0

12

Exmark 103-4080

LATCH-RUBBER

$31.99

$

In Stock, Qty 5

0

13

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Exmark 109-7694

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

0

15

Exmark 116-4356

PIN-LATCH

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 116-4434-03

PLATE-BACKING

$19.99

$

Usually ships in 3-6 days

0

17

Exmark 116-4776

COVER-NUT

$30.99

$

Usually ships in 3-6 days

0

18

Exmark 116-6484-03

BLOWER FRAME ASM

$500.99

$

Usually ships in 3-6 days

0

19

Exmark 116-6487

BLOWER CHUTE ASM

$353.99

$

Usually ships in 3-6 days

0

19:1

Exmark 116-4991

CHUTE-BLOWER, SMALL

$340.99

$

Usually ships in 3-6 days

0

19:2

Exmark 103-4752-03

PLATE-REINFORCEMENT

$13.99

$

Usually ships in 3-6 days

0

19:3

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

19:4

Exmark 116-6486-03

PLATE-FILLER

$15.99

$

Usually ships in 3-6 days

0

19:5

Exmark 126-4853

Decal-Warning

$7.49

$

Usually ships in 3-6 days

0

20

Exmark 126-4659

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

21

Exmark 126-9784

UPPER-HOUSING W/DECAL

$320.99

$

Usually ships in 3-6 days

0

21:2

Exmark 126-7212

DECAL-ULTRAVAC E-SERIES

$18.99

$

Usually ships in 3-6 days

0

21:3

Exmark 126-9451

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

21:4

Exmark 126-9595

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

25

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

26

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

27

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

29

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

30

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

34

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

35

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
