126-6122 - Exmark Ultra Vac Bagger for Radius Mower (SN: 400000000 - 402082299) (Rev D) (2017) Bagger Top and Mounting Assembly Parts Diagram

Ultra Vac Bagger for Radius Mower

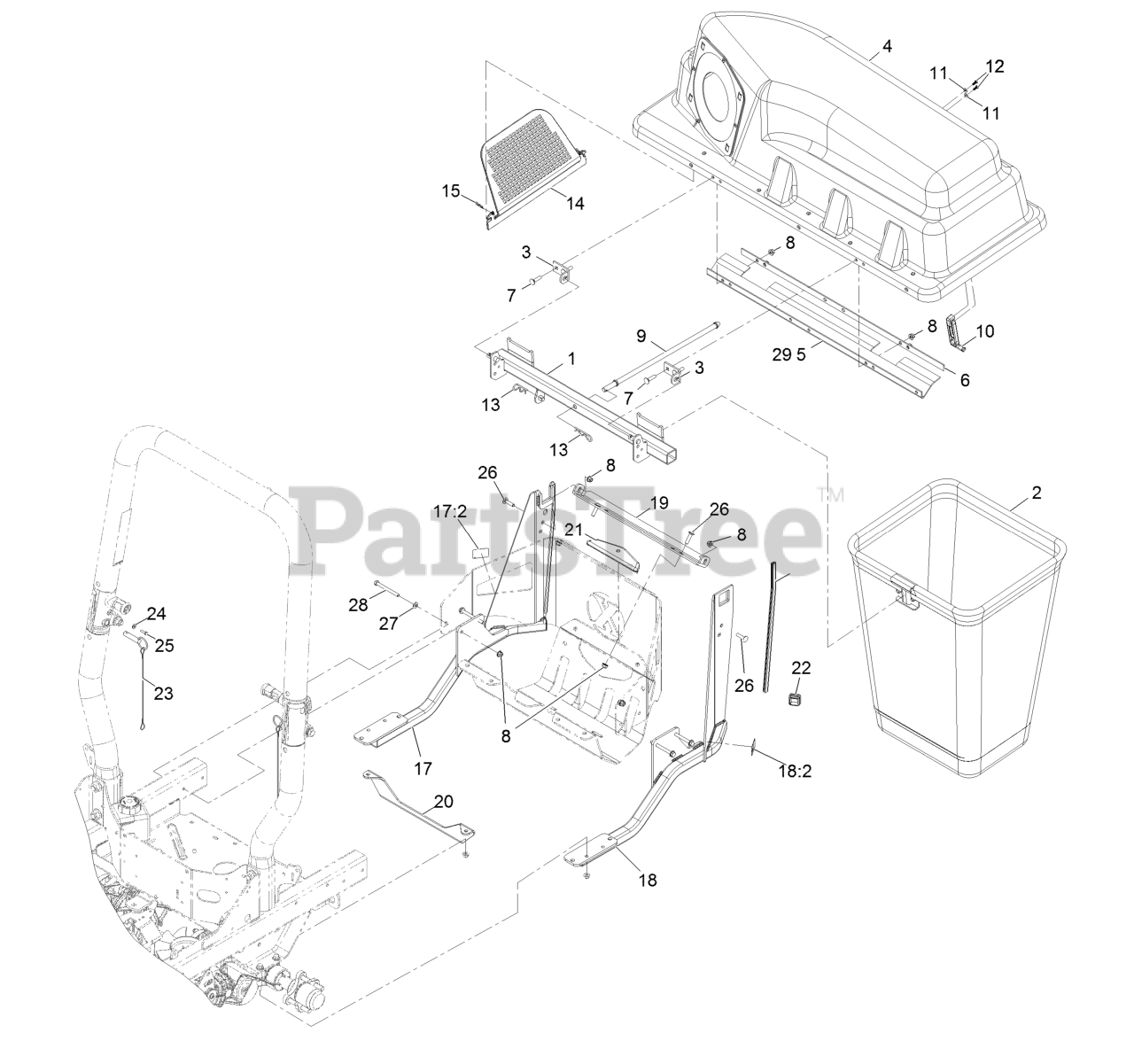

Bagger Top and Mounting Assembly Parts Diagram

  • Title
1

Exmark 116-4783-03

FRAME PIVOT ASM

$176.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0754

BAG AND FRAME ASM

$191.99

$

Usually ships in 3-6 days

0

3

Exmark 112-3987

BRACKET-PIVOT, HOPPER

$8.49

$

Usually ships in 3-6 days

0

4

Exmark 116-4537

BAGGER HOOD ASM

$555.99

$

Usually ships in 3-6 days

0

$33.99

$

In Stock, only 1 left!

0

6

Exmark 116-4127-03

PLATE-BACKING

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-6491

ROD-HOLD DOWN, HOOD

$58.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4992

LATCH-RUBBER

$50.99

$

In Stock, only 2 left!

0

11

Exmark 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

12

Exmark 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

13

Exmark 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

14

Exmark 112-3993

SCREEN-BAGGER

$30.99

$

In Stock, only 1 left!

0

15

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 126-9662

RH BAGGER SUPPORT ASM

$274.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

18

Exmark 126-9663

LH BAGGER SUPPORT ASM

$274.99

$

Usually ships in 3-6 days

0

18:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

19

Exmark 126-7612-03

ANGLE-SUPPORT

$36.99

$

Usually ships in 3-6 days

0

20

Exmark 126-5672-03

SUPPORT-TRANSMISSION

$72.99

$

Usually ships in 3-6 days

0

21

Exmark 126-8299

COVER-HITCH

$7.99

$

Usually ships in 3-6 days

0

22

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 106-9951

HITCH PIN ASM

$51.99

$

In Stock, only 2 left!

0

24

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 12

0

27

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Exmark 126-8742

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

29

Exmark 126-9923

Strip-Trim

$7.99

$

Usually ships in 0 days

0
