126-560-033 - MTD Walk-Behind Mower (1986) (Ace Hardware) Parts04 Parts Diagram

Walk-Behind Mower

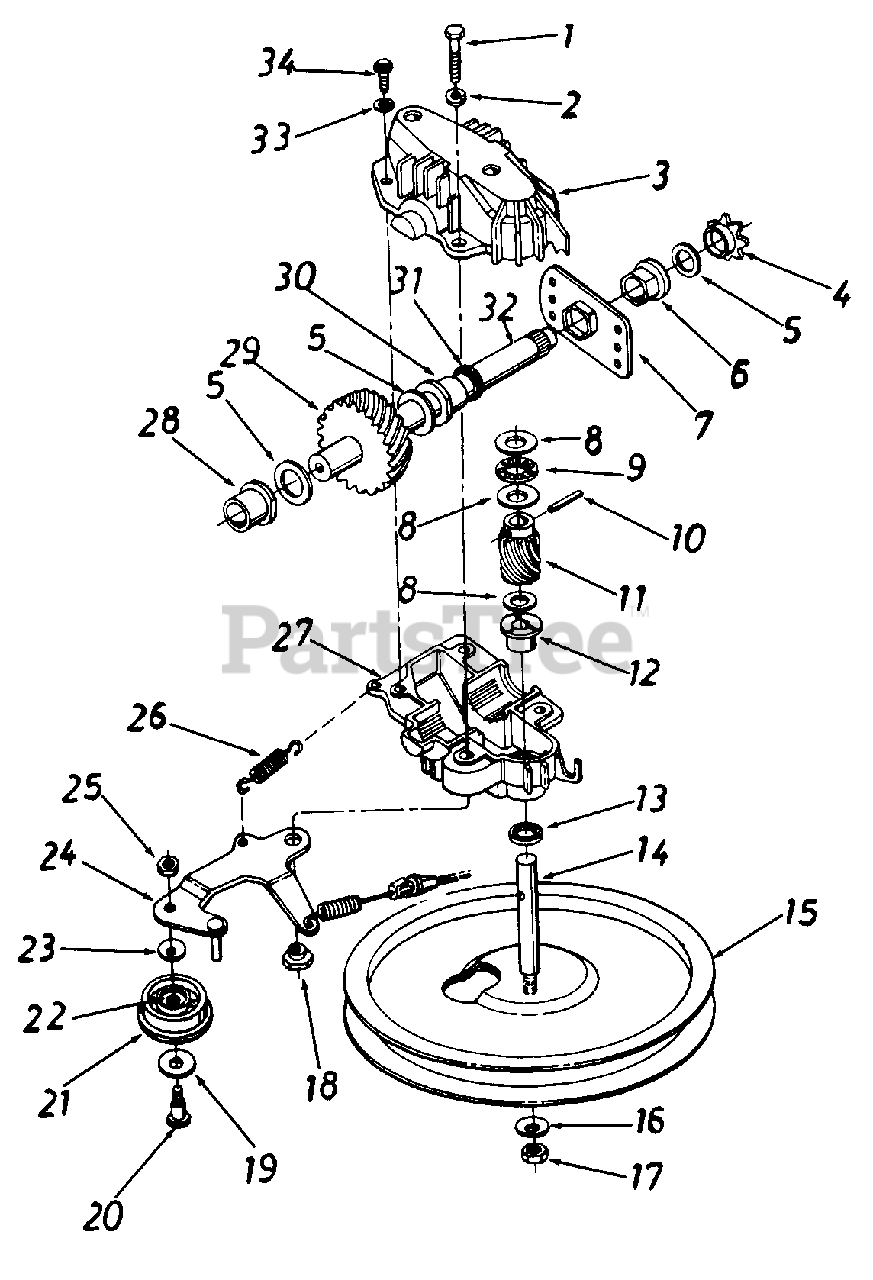

Parts04 Parts Diagram

  • Title

1

MTD 710-0106

Hex Boit 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

2

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

MTD 717-0418

Upper Transmission Hsg. Half
(Superseded to 717-0418A)

$

$

Not available

4

MTD 713-0400

#48 Sprocket 7 Tooth x 1/2 Pitch

$

$

Not available

5

MTD 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

MTD 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

7

MTD 16500

Hex Bearing Cup
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

8

MTD 736-0314

Thrust Wash. .382" I.D. x .70" O.D.

$6.99

$

Usually ships in 3-6 days

0

9

MTD 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

10

MTD 715-0152

Spring Pin Spir. 1/8" x .62" Heavy

$

$

Not available

11

MTD 717-0420

11 Tooth Helical Gear

$

$

Not available

12

MTD 748-0208

Flange Bearing
(Superseded to 748-0208A)

$4.49

$

Usually ships in 3-6 days

0

13

MTD 721-0212

Oil Seal

$

$

Not available

14

MTD 738-0708

Pulley-Transmission Shaft .375 O.D.
(Superseded to 753-0448)

$

$

Not available

15

MTD 756-0330

Fl-Pulley 5.06" O.D.
(Superseded to 756-0330A)

$

$

Not available

16

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0107

Hex Lock Nut 1/2-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

18

MTD 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

19

MTD 736-0344

Fl-Wash. .390" I.D. x 1.0" O.D.

$4.99

$

In Stock, Qty 20+

0

20

MTD 738-0691

Shld. Bolt .375" Dia. x .400" Lg.
(Superseded to 938-0691)

$

$

Not available

21

MTD 756-0447

Fl-Idler Plastic 1.50" Dia. x .48
(Superseded to 753-0518)

$27.99

$

Usually ships in 3-6 days

0

22

MTD 741-0482

Needle Brg. .375" x .31
(Superseded to 741-0875)

$

$

Not available

23

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

24

MTD 16501

Idler Brk't. Ass'y.

$

$

Not available

25

MTD 712-0107

Hex Patch L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

26

MTD 732-0357

Extension Spring 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

27

MTD 717-0419

Lower Transmission Hsg. Half

$

$

Not available

28

MTD 741-0415

Flange Bearing .566 Dia.
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

MTD 717-0422

33 Tooth Helical Gear
(Superseded to 717-0616A)

$

$

Not available

30

MTD 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

MTD 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, Qty 15

0

32

MTD 738-0607

Gear Sprocket Shaft
(Superseded to 717-0616A)

$

$

Not available

33

MTD 736-0722

L-Wash. #10

$6.99

$

Usually ships in 3-6 days

0

34

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0
