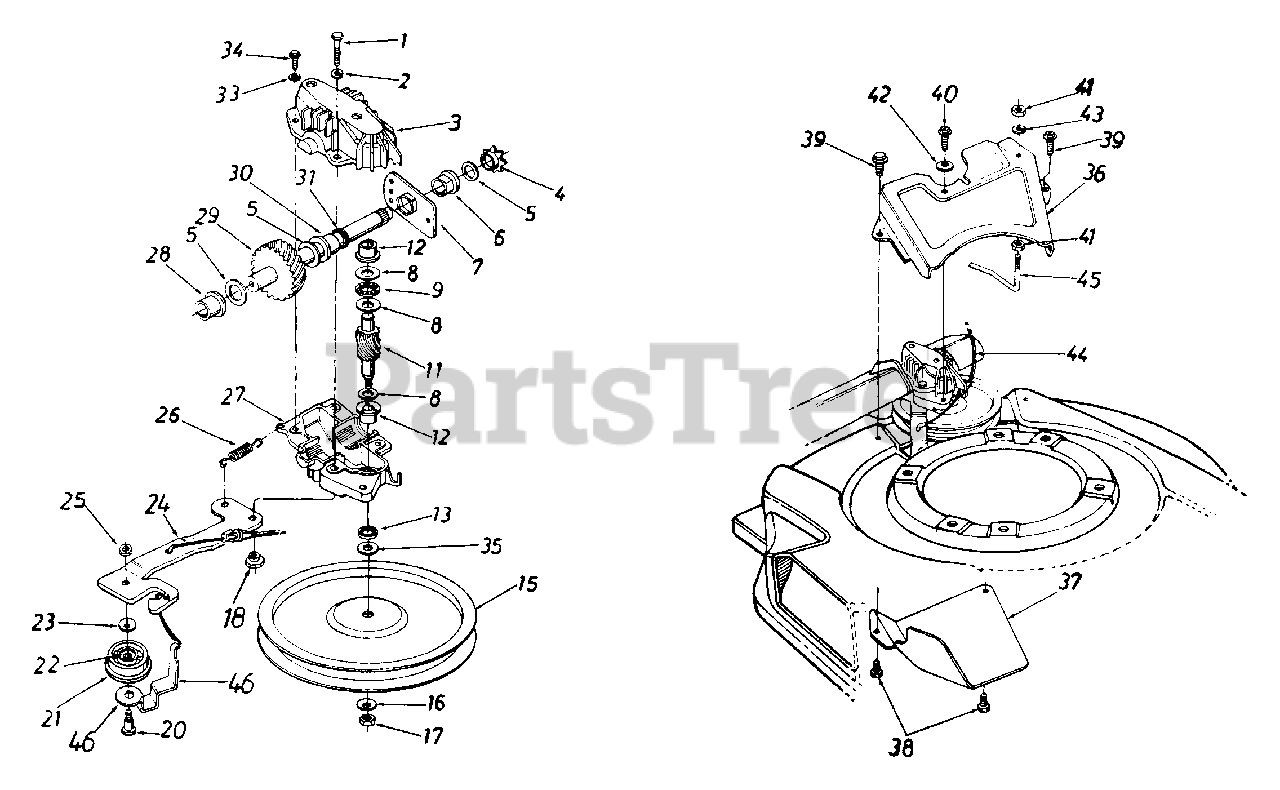

126-539D190 - White Outdoor Lawn Boss 22" Walk-Behind Mower (1996) Transmission and Deck Parts Diagram

Lawn Boss 22" Walk-Behind Mower

Transmission and Deck Parts Diagram

  • Title

1

White Outdoor 710-1062

Hex Patch Bolt 1/4-20 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

2

726-0329

L-Wash. 1/4" I.D.

$

$

Not available

3

White Outdoor 717-0418A

Upper Hsg. Half

$

$

Not available

4

White Outdoor 713-0400

#48 Sprocket 7 Tooth x 1/2 Pitch

$

$

Not available

5

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

White Outdoor 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

7

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

White Outdoor 736-0314

Thrust Wash. .382" I.D. x .70" O.D.

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

11

White Outdoor 717-1216

11 Tooth Helical Gear
(Superseded to 917-1216)

$

$

Not available

12

White Outdoor 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

White Outdoor 721-0212

Oil Seal

$

$

Not available

15

White Outdoor 756-0330A

Fl-Pulley 5.06" I.D.

$

$

Not available

16

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0351

Hex Nut 1/4-28 L.H. Thd.
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

White Outdoor 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

20

White Outdoor 738-0826

Shld. Bolt .375" Dia. x .40"

$12.99

$

In Stock, only 1 left!

0

21

White Outdoor 656-0008

Fl-Idler Plastic 1.50" Dia.
(Superseded to 956-0008)

Note: Incl. Ref. No. 22

$20.99

$

In Stock, only 2 left!

0

22

White Outdoor 741-0556

Needle Brg. .375" x .375"

$17.99

$

In Stock, Qty 5

0

23

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 782-7570

Idler Brk't. Ass'y.
(Superseded to 682-0054)

$25.99

$

Usually ships in 3-6 days

0

25

White Outdoor 712-0138

Hex Patch L-Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-0357A

Extension Spring 1.12" Lg.

$4.49

$

In Stock, Qty 13

0

27

White Outdoor 717-0419B

Lower Hsg. Half

Note: Code: N notates a new part (not previously existing).

$

$

Not available

28

White Outdoor 741-0415

Flange Bearing .56 Dia.
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

White Outdoor 717-0616A

Shaft Ass'y.

$

$

Not available

30

White Outdoor 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

White Outdoor 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, Qty 12

0

33

White Outdoor 736-0722

L-Wash. #10 I.D.

$6.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0410

Hex Washer .26" x .88"
(Superseded to 936-0410)

$

$

Not available

36

White Outdoor 17718

Transmission Belt Guard

Variations

White Outdoor 17718-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17718-0638

No Longer Available GUARD-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17718-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17718-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

$

$

37

White Outdoor 17064

Belt Cover

Variations

White Outdoor 17064-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0599

Hex AB-Tap Scr. 1/4 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 710-0896

Hex B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

42

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

44

White Outdoor 746-0710A

S.P. Cable - 48" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

45

White Outdoor 747-0549

S.P. Belt Guard

$

$

Not available

46

White Outdoor 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

White Outdoor 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0
