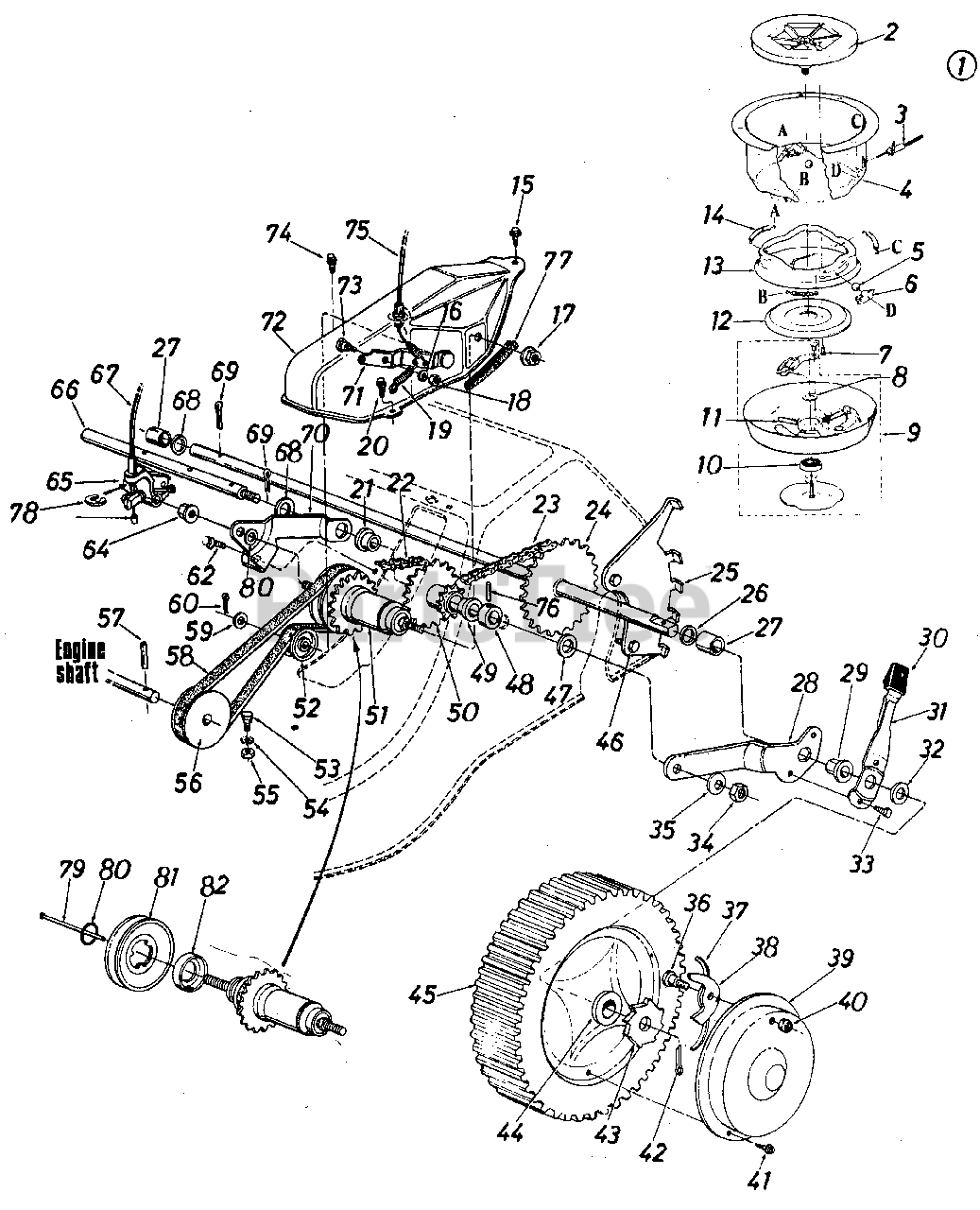

126-365-095 - MTD Walk-Behind Mower (1986) (Cenex) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 717-0485

Blade/Brake Clutch Ass'y.

$

$

Not available

2

MTD 719-0256

Fan Adapter

$

$

Not available

3

MTD 746-0400A

BBC-Clutch Cable-46"
(Superseded to 946-0405)

$53.99

$

Usually ships in 3-6 days

0

4

MTD 14307

Clutch Housing

$

$

Not available

5

MTD 741-0326

Steel Ball .500" Dia.

$

$

Not available

6

MTD 731-0520

Ball Block

$

$

Not available

7

MTD 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

8

MTD 736-0333

Fl-Wash. .690" I.D. x 1.060 " O. D.

$

$

Not available

9

MTD 14300

Clutch Blade Hsg. Ass'y.

$

$

Not available

10

MTD 741-0124

Ball Brg. .669" I.D. x 1.574" O.D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

11

MTD 732-0396

Compression Spring .32" O.D. x 2.00" Lg.

$

$

Not available

12

MTD 14304

Clutching Cone

$

$

Not available

13

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

14

MTD 732-0397

Extension Spring-1.75" Lg.

$

$

Not available

15

MTD 710-0456

Hex Drilling Scr. #10 x .50"

$

$

Not available

16

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 712-0340

Hex Nut 3/8-24 Thd.

Note: (Special)

$

$

Not available

18

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

19

MTD 732-0357

Extension Spring-1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, only 3 left!

0

20

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

21

MTD 741-0248

Flg. Brg. .506" I.D.-Plastic

$9.49

$

Usually ships in 3-6 days

0

22

MTD 713-0361

#48 Chain 1/2" Pitch x 38 Links
(Superseded to 913-0361)

Note: (Endless)

$

$

Not available

23

MTD 713-0256

#48 Chain 1/2" Pitch x 32 Links
(Superseded to 913-0144)

Note: (Endless)

$

$

Not available

24

MTD 13414

Rear Shaft Ass'y.-20.75"

$

$

Not available

25

MTD 16097

Index Plate Rear-L.H.

$

$

Not available

MTD 16098

Index Plate Rear-R.H.

Note: (Not Shown)

$

$

Currently unavailable

26

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

27

MTD 750-0190

Spacer.740" I.D.

$

$

Not available

28

MTD 16099

Pivot Brkt.-L.H.

$

$

Not available

MTD 16100

Pivot Brkt.-R.H.

Note: (Not Shown)

$

$

Not available

29

MTD 741-0324

Hex Flange Brg. .506" I .D.-Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

30

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

31

MTD 732-0467

Spring Lever

$

$

Not available

32

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

33

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38"

$4.99

$

Usually ships in 3-6 days

0

34

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

35

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

36

MTD 738-0137

Shld. Bolt .342" Dia. x .268

$

$

Not available

37

MTD 10622

Spring-Nylon
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

38

MTD 748-0188

Pawl
(Superseded to 948-0188B)

$

$

Not available

39

MTD 10647

H ub Cap

$

$

Not available

40

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

41

MTD 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

$

$

Not available

42

MTD 714-0115

Cotter Pin 1/8" Dia. x l.O

$3.99

$

Usually ships in 3-6 days

0

43

MTD 748-0187

Ratchet Wheel 1.62" O.D.

$

$

Not available

44

MTD 741-0180

Fl-Ball Brg. 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

MTD 734-1026

Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

46

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

47

MTD 736-0219

Bell-Wash. .40" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

48

MTD 750-0387

Spacer. 505" I.D.

$

$

Not available

49

MTD 741-0248

Flg. Brg. .506" I.D. Plastic

$9.49

$

Usually ships in 3-6 days

0

50

MTD 713-0359

9 and 21 Tooth Sprocket Ass'y.

$

$

Not available

51

MTD 717-0825

Shimano 3-Sp. Hub w/18 Tooth Sprocket

$

$

Not available

52

MTD 756-0360

Fl-Idler Plastic 1.62" Dia.

$

$

Not available

53

MTD 738-0140

Shld. Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

54

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 756-0462

1/2" "V"Engine Pulley .50" I.D. x 2.80" O.D.

$

$

Not available

57

MTD 715-0144

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.

$

$

Not available

58

MTD 754-0292

"V"Belt 1/2" x 26.0" Lg.

$

$

Not available

59

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

60

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.0"

$3.99

$

Usually ships in 3-6 days

0

62

MTD 710-0726

Hex Wash. Hd. Tap Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

MTD 736-0226

Fl-Wash. .469" I.D. x .88"
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

64

MTD 712-0340

Hex Nut 3/8-24 Thd.

Note: (Special)

$

$

Not available

65

MTD 717-0824

Shimano 3-Sp. Shift Bell Crank

$

$

Currently unavailable

66

MTD 738-0471

Pulley Shaft 10" Lg.

$

$

Not available

67

MTD 717-0823

Shimano 3-Sp. Solid Shift Cable

$

$

Not available

68

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

69

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.0"

$4.99

$

In Stock, Qty 13

0

70

MTD 16304

3-Sp. Hub Bracket

$

$

Currently unavailable

71

MTD 13415

Idler Bracket Ass'y.

$

$

Not available

72

MTD 16305

3-Sp. Belt Cover

$

$

Currently unavailable

73

MTD 738-0255

Shld. Bolt .375" Dia. x .181
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

74

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

75

MTD 746-0466

S.P. Cable-53" Lg.-Blue

$

$

Not available

76

MTD 715-0120

Spring Pin Spir. 3/16" Dia. x 1.0" Lg.

$10.99

$

In Stock, only 1 left!

0

77

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

78

MTD 717-0832

Snap Ring

Note: (Special)

$

$

Currently unavailable

79

MTD 717-0830

Shifting Pin

Note: (Special)

$

$

Not available

80

MTD 717-0826

Pulley Snap Ring

Note: (Special)

$

$

Not available

81

MTD 756-0463

1/2" V-Pulley 1.375" I.D. x 3.25" O.D.

$

$

Not available

82

MTD 717-0831

Shimano 3-Sp. Dust Cover

$

$

Currently unavailable
