126-280B700 - Yard Machines Walk-Behind Mower (1996) Rear Pinion Pivot Parts Diagram

Walk-Behind Mower

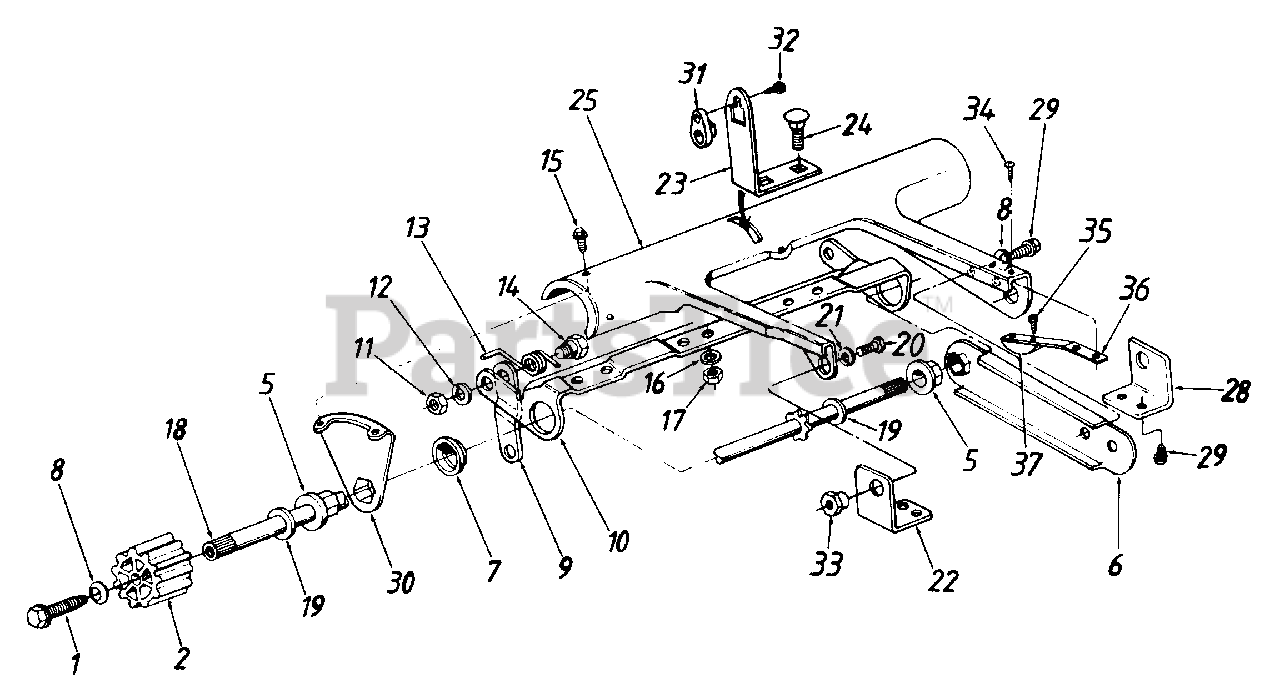

Rear Pinion Pivot Parts Diagram

  • Title

1

MTD 710-3015

Hex Scr. 1/4 - 20 x .62" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

2

MTD 731-0908

Wheel Drive Pinion
(Superseded to 931-0908)

$16.99

$

Usually ships in 3-6 days

0

5

MTD 741-0503

Hex Flange Brg. .504" I.D.

$3.49

$

Usually ships in 3-6 days

0

6

MTD 17018

Hex Bearing Support

Variations

MTD 17018-0637

No Longer Available SUPPORT-BE - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 741-0504

Flange Bearing .879" I.D.

$

$

Not available

8

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

9

MTD 14760A

Link 4.58" Lg.

Variations

MTD 14760A-0637

No Longer Available LINK - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 16832A

Drive Engagement Cam

$

$

Not available

11

MTD 712-0267

Hex Nut 5/16 - 18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 732-0569A

Torsion Spring - R.H.

$

$

Not available

MTD 732-0570A

Torsion Spring - L.H.

Note: (Not Shown)

$

$

Not available

14

MTD 738-0754

Shoulder Bolt .437" Dia.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0896

Hex Hd. AB-Tap Scr. 1/4" x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 712-0287

Hex Nut 1/4 - 20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

18

MTD 638-0004

Drive Shaft Ass'y.

$

$

Not available

19

MTD 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

20

MTD 710-0168

Hex Bolt 3/8 - 16 x .5" Lg.

$3.99

$

Usually ships in 3-6 days

0

21

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

MTD 17614

Pivot Bracket - R.H. (B & S)

Variations

MTD 17614-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17616

Pivot Bracket - R.H. (Tec.)

Variations

MTD 17616-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 16756

Engagement Arm - L.H.

Variations

MTD 16756-0637

No Longer Available ARM-ENGAGE - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 710-0258

Hex Bolt 1/4 - 20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

25

MTD 17726

Rear Pinion Pivot Cover

Variations

MTD 17726-0637

No Longer Available COVER-REAR - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 17613

Pivot Bracket - L.H. (B & S)

Variations

MTD 17613-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17617

Pivot Bracket - L.H. (Tec.)

Variations

MTD 17617-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 710-0896

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

30

MTD 17017

Hex Bearing Axle Brkt.

Variations

MTD 17017-0637

No Longer Available BRACKET-AX - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 746-0606

Barrel Cable Hold - Down - R.H.

$

$

Not available

32

MTD 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 8

0

33

MTD 738-0529

Shld. Nut .625" Dia. x .165" Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

34

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

MTD 710-1268

Hex Wash. B-Tap Scr. #10 x 3/8" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 732-0634

Cantilever Spring

$

$

Not available

37

MTD 731-1136

Chain Tensioner

$2.49

$

In Stock, only 1 left!

0
