126-234-000 - MTD Walk-Behind Mower (1986) Parts02 Parts Diagram

Walk-Behind Mower

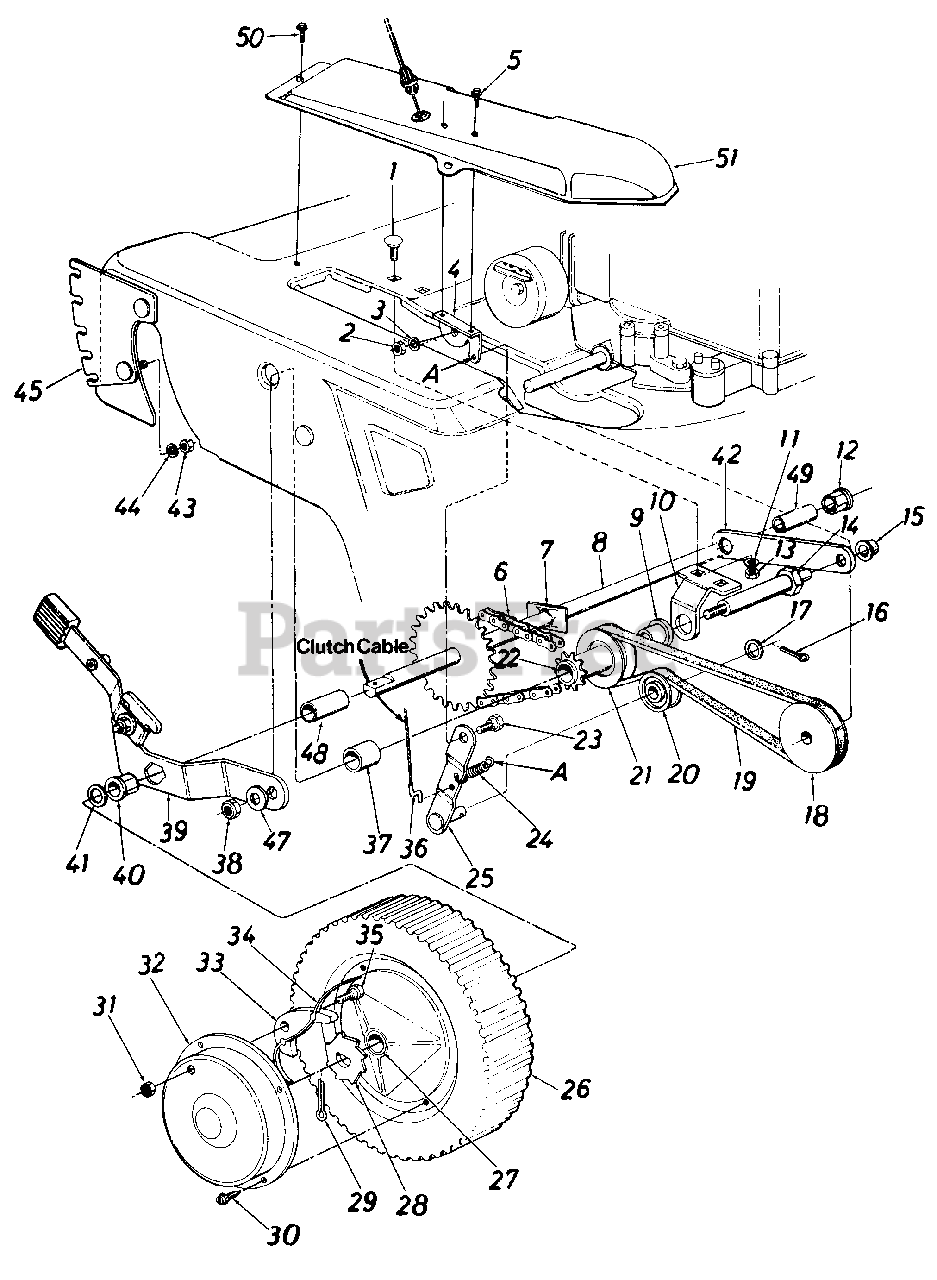

Parts02 Parts Diagram

  • Title

1

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

2

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

MTD 14245

Cam Bracket

$

$

Currently unavailable

5

MTD 710-0892

Hex Wash. Hd. "AB" Tap L-Wash Scr. 1/4-20 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

6

MTD 713-0144

#48 Chain 1/2" Pitch x 31 Links
(Superseded to 913-0144)

$

$

Not available

MTD 713-0122

#48 Master Link 1/2" Pitch

$

$

Not available

7

MTD 726-0163

Push Clip .692 Dia.

$

$

Not available

8

MTD 10646

Rear Shaft Ass'y.

$

$

Not available

9

MTD 741-0249

Flange Bearing .631" I.D.

$3.49

$

In Stock, Qty 6

0

10

MTD 10644

Bracket

$

$

Not available

11

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 748-0142

Flange Bearing

$15.99

$

Usually ships in 3-6 days

0

13

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 738-0473

Shld. Bolt .625" Dia. x 3.380

Note: (Special)

$

$

Not available

15

MTD 726-0221

Cap Speed Nut .50" Dia.

$6.49

$

In Stock, only 1 left!

0

16

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

17

MTD 736-0160

Fl-Wash. .531 I.D. x .930 O.D. x .050

$4.49

$

In Stock, only 2 left!

0

18

MTD 756-0384

Engine Pulley

$

$

Not available

19

MTD 754-0114

"V"Belt 1/2" x 24" Lg.

$

$

Not available

20

MTD 756-0360

Plastic Flat Idler

$

$

Not available

21

MTD 756-0191

Pulley with 9 Tooth Sprocket Ass'y.

$

$

Not available

22

MTD 741-0181

Sleeve Bearing .62" I.D. x .75" O.D. x .94 Lg.
(Superseded to 941-0181)

$

$

Not available

23

MTD 738-0255

Shld. Bolt .375" Dia. x .171 Lg.
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

24

MTD 732-0357

Ext. Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, only 3 left!

0

25

MTD 14181

Idler Bracket Ass'y.

$

$

Currently unavailable

26

MTD 734-1411

Rear Wheel Ass'y. Comp. 8.0 x 1.75

$

$

Not available

27

MTD 741-0180

Flange Bearing .50" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

28

MTD 748-0187

Ratchet-Rear Wheel

$

$

Not available

29

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*

$3.99

$

Usually ships in 3-6 days

0

30

MTD 710-0748

Pan Hd. "AB" Tap Scr. #12 x .50" Lg.

$

$

Not available

31

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

32

MTD 10647

Hub Cap

$

$

Not available

33

MTD 748-0188

Pawl-Rear Wheel
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

34

MTD 10622

Spring-Nylon
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

35

MTD 738-0137

Shld. Bolt .342" Dia. x .268" Lg.

$

$

Not available

36

MTD 746-0464

Drive Clutch Cable 59" Lg.

$

$

Not available

37

MTD 750-0477

Spacer .635 I.D. x .88 O.D. x .910

$

$

Not available

38

MTD 712-0342

Hex Jam Nut 5/16-18 Thd.*
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

39

MTD 14926

Pivot Bracket Ass'y.-R.H.

$

$

Not available

MTD 14927

Pivot Bracket Ass'y.-L.H.

$

$

Not available

40

MTD 741-0324

Flange Bearing
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

41

MTD 736-0160

Fl-Wash. .531 I.D. x .93 O.D. x .050

$4.49

$

In Stock, only 2 left!

0

42

MTD 12967

Support Link

$

$

Not available

43

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 10642

Index Plate Ass'y.-R.H.

$

$

Currently unavailable

MTD 710-0200

Hex Wash. Hd. Self-Tap Scr. #8 x .50" Lg.

$

$

Not available

47

MTD 736-0105

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

48

MTD 750-0459

Spacer

$

$

Not available

49

MTD 750-0190

Spacer

$

$

Not available

50

MTD 710-0224

Hex Wash. Hd. AB-Tap Scr. #10 x 50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

51

MTD 16029

Belt Cover

$

$

Not available
