126-204-190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1986) Mower Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

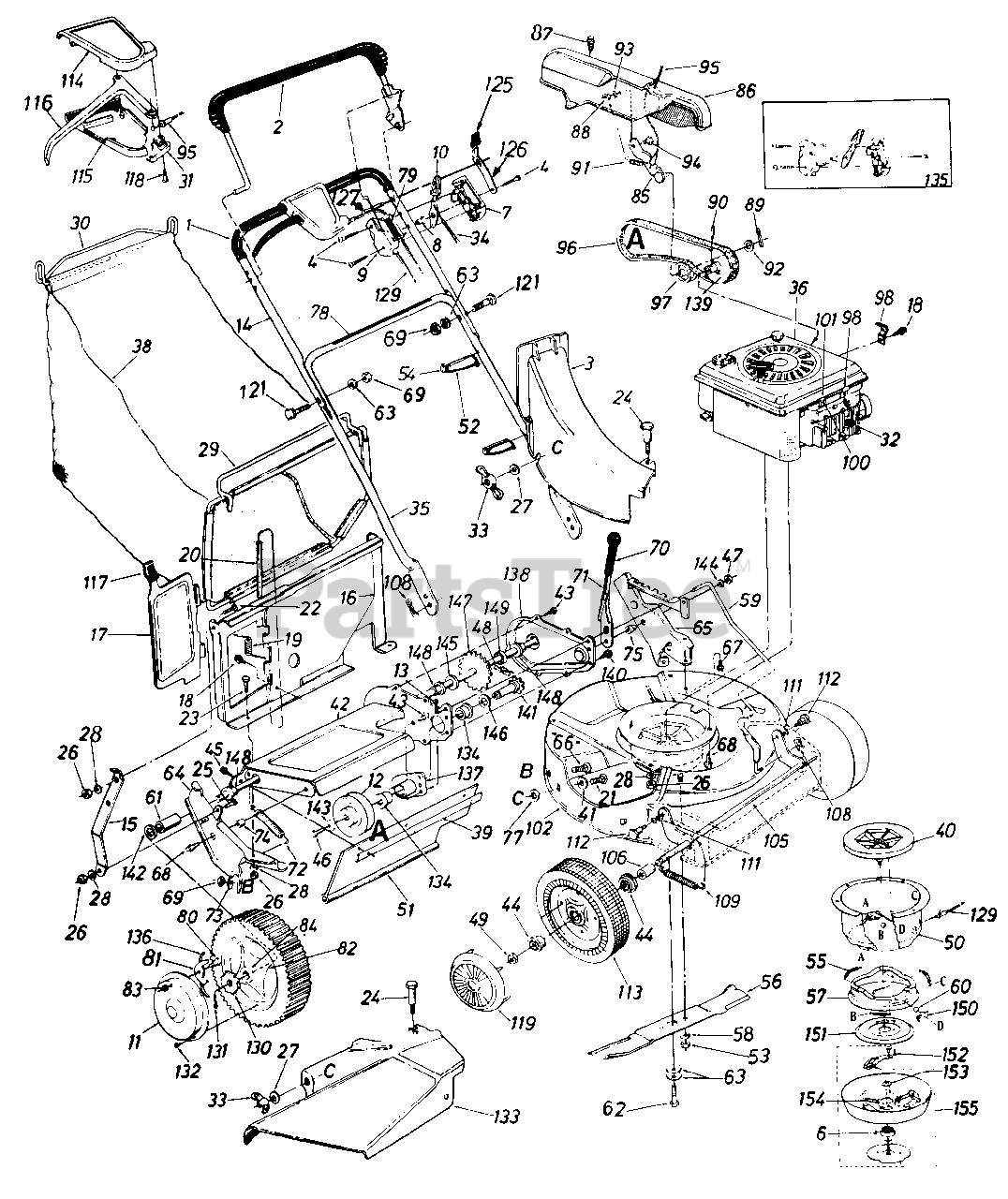

Mower Assembly Parts Diagram

  • Title

1

718-0145

Grip

$

$

Not available

2

White Outdoor 731-0609

Control Handle Ass'y. L.H.

$

$

Not available

3

White Outdoor 731-0733

Top Discharge Chute Ass'y.

$

$

Not available

4

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

6

White Outdoor 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

7

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

8

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

9

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

10

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

White Outdoor 10647

Hub Cap

Note: (Rear)

$

$

Not available

12

White Outdoor 756-0459

1/2" V-Pulley

$

$

Not available

13

White Outdoor 714-0507

Cotter Pin 8/32" Dia. x .75"*

$4.49

$

In Stock, Qty 12

0

14

White Outdoor 749-0436

Upper Handle Chrome
(Superseded to 749-0438D-0637)

$

$

Not available

15

White Outdoor 16129

Panel Support Brkt.
(Superseded to 16129A-0637)

$11.99

$

Usually ships in 3-6 days

0

16

White Outdoor 16140

Top Catcher Panel

$

$

Not available

17

16145

Top Door

$

$

Not available

18

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

White Outdoor 732-0483

Torsion Spring
(Superseded to 732-0483A)

$10.99

$

Usually ships in 3-6 days

0

20

White Outdoor 747-0514

Pivot Pin

$

$

Not available

21

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"*

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0286

Truss Mach . Scr. 1/4-20 x-1/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

23

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

White Outdoor 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special

$17.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

White Outdoor 736-0463

Fl-Wash. .280" I.D. x .620"

$4.49

$

In Stock, Qty 12

0

28

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

White Outdoor 747-0494

Front Grass Catcher Frame

$

$

Not available

30

White Outdoor 747-0495

Grass Catcher Handle

$

$

Not available

31

White Outdoor 731-0619

S.P. Control Cover

$

$

Not available

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

33

White Outdoor 712-0109

Wing Nut

$

$

Not available

34

White Outdoor 746-0633

Throttle Control Wire 58"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

White Outdoor 749-0505

Lower Handle Chrome
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

White Outdoor 717-0485

Blade Brake Clutch Comp.

$

$

Not available

38

764-0212

21" Top Discharge Grass Bag

$

$

Not available

39

White Outdoor 14835

Retaining Strip

$

$

Not available

40

White Outdoor 719-0256

Fan Adapter

$

$

Not available

41

White Outdoor 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 16121

Chain Axle Ass'y.

$

$

Not available

43

White Outdoor 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 710-0875

Hex Wash. TT-Tap Scr. 1/4-20

$3.99

$

In Stock, only 2 left!

0

47

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

White Outdoor 713-0353

#48 Chain .500" Pitch x .30 Links
(Superseded to 913-0353)

$

$

Not available

49

White Outdoor 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 6

0

50

White Outdoor 14307

Clutch Housing

$

$

Not available

51

731-0671

Rear Flap 3.75" x 17.30" Lg.

$

$

Not available

52

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 712-0328

Hex Nut 3/8-24 Thd.
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

54

White Outdoor 726-0241

Cable Anchor
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 732-0397

Extension Spring .35" O.D. x 1.75" Lg.

$

$

Not available

56

White Outdoor 742-0290

21" Blade

$

$

Not available

57

14305

Brake Cup Cone

$

$

Not available

58

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 747-0496

Height Adj. Rod 19.42" Lg.

$

$

Not available

60

White Outdoor 741-0326

Steel Ball .500" Dia.

$

$

Not available

61

White Outdoor 748-0191

Spacer .51" I.D. x .69" O.D. x.69" Lg.
(Superseded to 750-0190)

$

$

Not available

62

White Outdoor 710-0818

Hex Cent. L-Bolt 3/8-24 x 2.0" Lg. (Grade 8)

$6.99

$

Usually ships in 3-6 days

0

63

White Outdoor 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 16136

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

White Outdoor 16137

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0143

Grip

$

$

Not available

71

White Outdoor 732-0473

Height Adj. Lever
(Superseded to 732-0473B)

$

$

Not available

72

White Outdoor 732-0481

Extension Spring .50" O.D. x 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 750-0526

Spacer .385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

White Outdoor 750-0624

Shld. Spacer .500" Dia. x .100

$

$

Not available

77

White Outdoor 726-0233

Bolt Retainer 1/4 X .50" O.D.

$4.49

$

In Stock, Qty 20+

0

78

777-5775

Instruction Label

$

$

Not available

79

777-5772

Control Label

$

$

Not available

80

White Outdoor 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

White Outdoor 748-0188

Pawl
(Superseded to 948-0188B)

$

$

Not available

82

White Outdoor 734-1411

Wheel Ass'y. Comp. Rear 8 x 1.75

$

$

Not available

83

White Outdoor 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

84

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

85

White Outdoor 16134

Belt Idler Bracket Ass'y.

$

$

Not available

86

16146

Belt Cover

$

$

Not available

87

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

89

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg. *

$3.99

$

In Stock, only 2 left!

0

90

White Outdoor 715-0247

Spring Pin Spir. 3/16" Dia. x 1.00" Lg.
(Superseded to 915-0247)

$

$

Not available

91

White Outdoor 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

92

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D. x .050

$4.49

$

In Stock, only 2 left!

0

93

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

94

White Outdoor 738-0255

Shld. Bolt .375" Dia. x .181
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

95

White Outdoor 746-0466

S.P. Cable x 53.0" Lg.
(Superseded to 946-0466)

$

$

Not available

96

White Outdoor 754-0104

"V"-Belt 1/2 " X 32.0" Lg.

$

$

Not available

97

White Outdoor 756-0360

Fl-Idler Plastic 1.62" Dia. (Grade 8)

$

$

Not available

98

White Outdoor 12894

Casing Clamp

$

$

Not available

100

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

White Outdoor 751-0442

Casing Clamp

$

$

Not available

102

White Outdoor 16126

21" Deck Ass'y.

Variations

White Outdoor 16126-0638

No Longer Available DECK ASSEMBLY-TOP- - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

105

10662

Front Axle Ass'y.

$

$

Not available

106

White Outdoor 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.
(Superseded to 911-0313)

$

$

Not available

108

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

109

White Outdoor 732-0482

Extension Spring .50" O.D. x 3.20" Lg.

$

$

Not available

111

White Outdoor 736-0221

Intern. L-Wash. 3/8 I.D.*

$

$

Not available

112

White Outdoor 738-0615

Shld. Bolt .623" Dia. x .425

$

$

Not available

113

White Outdoor 734-0922

Front-Wheel Ass'y. Comp. 7 x 1.50

$

$

Not available

114

White Outdoor 731-0617

Self-Propelled Control Cover
(Superseded to 731-0617A)

$

$

Not available

115

White Outdoor 731-0618

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

116

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

117

White Outdoor 720-0208

Door Grip

$

$

Not available

118

White Outdoor 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

119

White Outdoor 731-0124

Hub Cap Plastic

$

$

Not available

121

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

125

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

126

White Outdoor 732-0401

Lockout Spring

$

$

Not available

127

White Outdoor 731-0607

Lock Pin .314" Dia. x 1.75"

$

$

Not available

129

White Outdoor 746-0400

Blade Brake/Clutch Cable 46" Lg.

$

$

Not available

130

White Outdoor 748-0187

Ratchet Wheel 1.62" O.D.

$

$

Not available

131

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*

$3.99

$

In Stock, only 2 left!

0

132

White Outdoor 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

$

$

Not available

133

White Outdoor 16559

Side Chute Deflector Ass'y.

$

$

Not available

134

White Outdoor 748-0249

Flange Bushing

$

$

Not available

135

White Outdoor 753-0431

Kit Control Housing Comp.

$

$

Not available

136

White Outdoor 10622

Spring Nylon
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

137

16118

Bearing Hub Flange Ass'y.

$

$

Not available

138

16119

Chain Cover

$

$

Not available

139

White Outdoor 756-0460

Engine Pulley 1/2"

$

$

Not available

140

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

141

White Outdoor 713-0355

Sprocket Shaft Ass'y.

$

$

Not available

142

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

143

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

144

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

145

White Outdoor 736-0326

Fl-Wash. .51" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

146

White Outdoor 736-0254

Fl-Wash. .62" I.D. x 1.12" O.D.
(Superseded to 936-0349)

$4.49

$

In Stock, Qty 20+

0

147

White Outdoor 738-0614

Rear Shaft Ass'y. 22.05" Lg.

$

$

Not available

148

White Outdoor 741-0324

Hex Flange Bearing .506" I.D. Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

748-0301

Spacer .510" I.D. x 1.00" O.D. x .210" Lg.

$

$

Not available

150

White Outdoor 731-0520

Ball Block

$

$

Not available

151

White Outdoor 14304

Clutching Cone

$

$

Not available

152

White Outdoor 710-0875

Hex Tap L-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

153

White Outdoor 736-0333

Fl-Wash. .690" I.D. x 1.060" O.D.

$

$

Not available

154

White Outdoor 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available

155

White Outdoor 14300

Clutch Blade Housing Ass'y.

$

$

Not available

White Outdoor 726-0111

Push Cap

$

$

Not available

8204-000-6

Hardware Pack

$

$

Not available
