126 (19A-126-100) - Cub Cadet 42" Two Stage Snow Thrower Attachment (2009 & After) Auger Housing & Discharge Chute Parts Diagram

42" Two Stage Snow Thrower Attachment

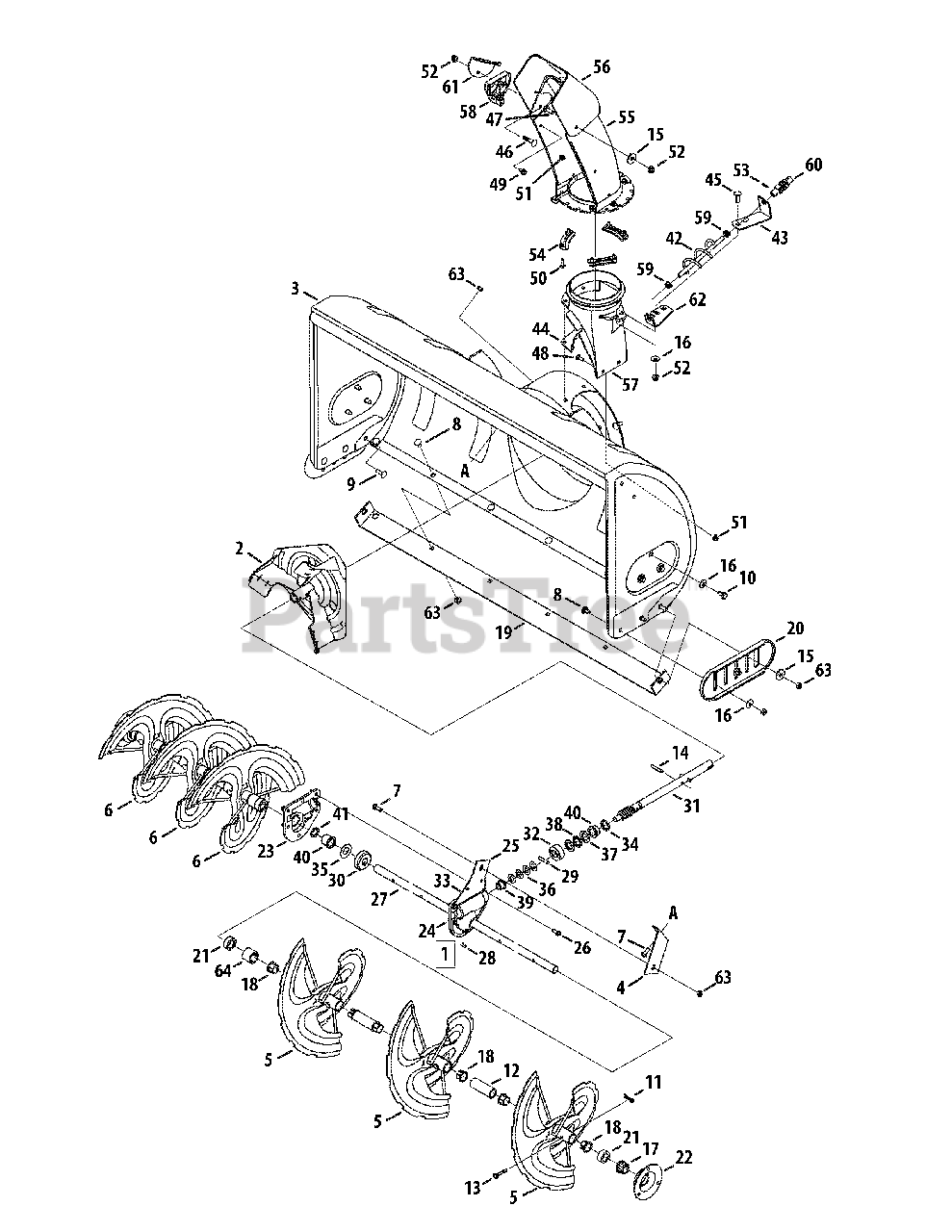

Auger Housing & Discharge Chute Parts Diagram

  • Title

1

Cub Cadet 918-04315

Auger Gear Box (Incl. Ref. 23-41)

$518.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-0158-0637

Impeller Assembly, 12"
(Superseded to 684-06296-0637)

$89.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-0148-0637

Housing Assembly

$885.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-2734-0637

Housing Brace Bracket

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet 684-04163-0637

LH Spiral Auger
(Superseded to 684-04163A-0637)

$116.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 684-04164-0637

RH Spiral Auger
(Superseded to 684-04164A-0637)

$116.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0759

Hex Cap Screw, 5/16-18 x .625

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0260A

Carriage Bolt, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0276

Splined Carriage Screw

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet 710-04484

Self Tapping Screw

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet 731-1086A

Sleeve .758 x 1.00 x 2.70

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

14

Cub Cadet 915-0114

Spirol Pin, 1/4 x 1-1/2
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 5

0

15

Cub Cadet 936-0231

Flat Washer, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

16

Cub Cadet 736-0242

Bell Washer, .340 x .872

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 941-0245

Hex Flange Bearing, .75 ID

$9.99

$

In Stock, Qty 20+

0

18

Cub Cadet 741-0493A

Flange Bushing, .80 x .91
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 784-0396B-0637

Skid Plate Bracket, 42"
(Superseded to 784-0396C-0637)

$64.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 784-5038B-0637

Slide Shoe

$27.99

$

In Stock, Qty 11

0

21

Cub Cadet 711-0469

Spacer, .75 x .125 x .5

$7.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 784-5618A-0637

Hex Bearing Housing, 1.0

$13.99

$

In Stock, Qty 6

0

23

Cub Cadet 918-0123A

RH Reducer Housing

$52.99

$

In Stock, Qty 10

0

24

Cub Cadet 918-0124A

LH Reducer Housing

$52.99

$

In Stock, Qty 12

0

25

Cub Cadet 703-2733A-0637

Housing Brace Plate

$19.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 711-04468

Spiral Axle, 41.5"

$198.99

$

In Stock, only 1 left!

0

28

Cub Cadet 914-0161

Hi-Pro Key, 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 915-0143

Spring Spirol Pin, .25 x 1.25
(Superseded to 715-0143)

$

$

Not available

30

Cub Cadet 917-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

31

Cub Cadet 717-3320

Worm Shaft

$135.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 718-0513

Thrust Collar

$13.99

$

In Stock, only 4 left!

0

33

Cub Cadet 721-0325

Grease Plug

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0351

Flat Washer, .76 x 1.5 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 936-0369

Flat Washer, .508 x 1.0 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 8

0

37

Cub Cadet 736-0617

Thrust Washer, .75 x 1.25 x .0615

$11.99

$

In Stock, Qty 5

0

38

Cub Cadet IH-324105-R92

Thrust Bearing, .75 x 1.25 x .078

$11.99

$

In Stock, only 1 left!

0

39

Cub Cadet 948-0108

Flange Bearing, .503 x .75

$8.99

$

In Stock, only 4 left!

0

40

Cub Cadet 741-0700

Flange Bearing, .75 x 1.0 x .59

$11.99

$

In Stock, only 1 left!

0

41

Cub Cadet 921-0179

Grease Seal
(Superseded to 721-0179)

$8.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 684-0061A

Chute Crank Assembly

$41.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 703-2735A-0637

Chute Crank Bracket

$19.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 705-5226-0637

Chute Reinforcer

$10.99

$

In Stock, Qty 7

0

45

Cub Cadet 710-0276

Splined Carriage Screw

$3.99

$

In Stock, Qty 14

0

46

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 13

0

47

Cub Cadet 710-04071

Carriage Screw, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 15

0

48

Cub Cadet 710-0703

Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

49

Cub Cadet 710-0896

Hex Index Washer Screw

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 710-0597

Hex Cap Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

51

Cub Cadet 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 715-04095

Spirol Pin, .156 x .875

$5.49

$

In Stock, only 2 left!

0

54

Cub Cadet 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 731-1300E

Lower Chute

$56.99

$

In Stock, Qty 8

0

56

Cub Cadet 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

57

Cub Cadet 731-1379D

Adapter Chute

$65.99

$

In Stock, only 1 left!

0

58

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

59

Cub Cadet 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

61

Cub Cadet 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

62

Cub Cadet 784-5647-0637

Chute Crank Bracket

$14.99

$

In Stock, Qty 7

0

63

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 731-04870

Spacer 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 20+

0
