126 (19A-126-100) - Cub Cadet 42" Two Stage Snow Thrower Attachment (2009 & After) att Linkage Controls & Under Carriage Assembly Parts Diagram

42" Two Stage Snow Thrower Attachment

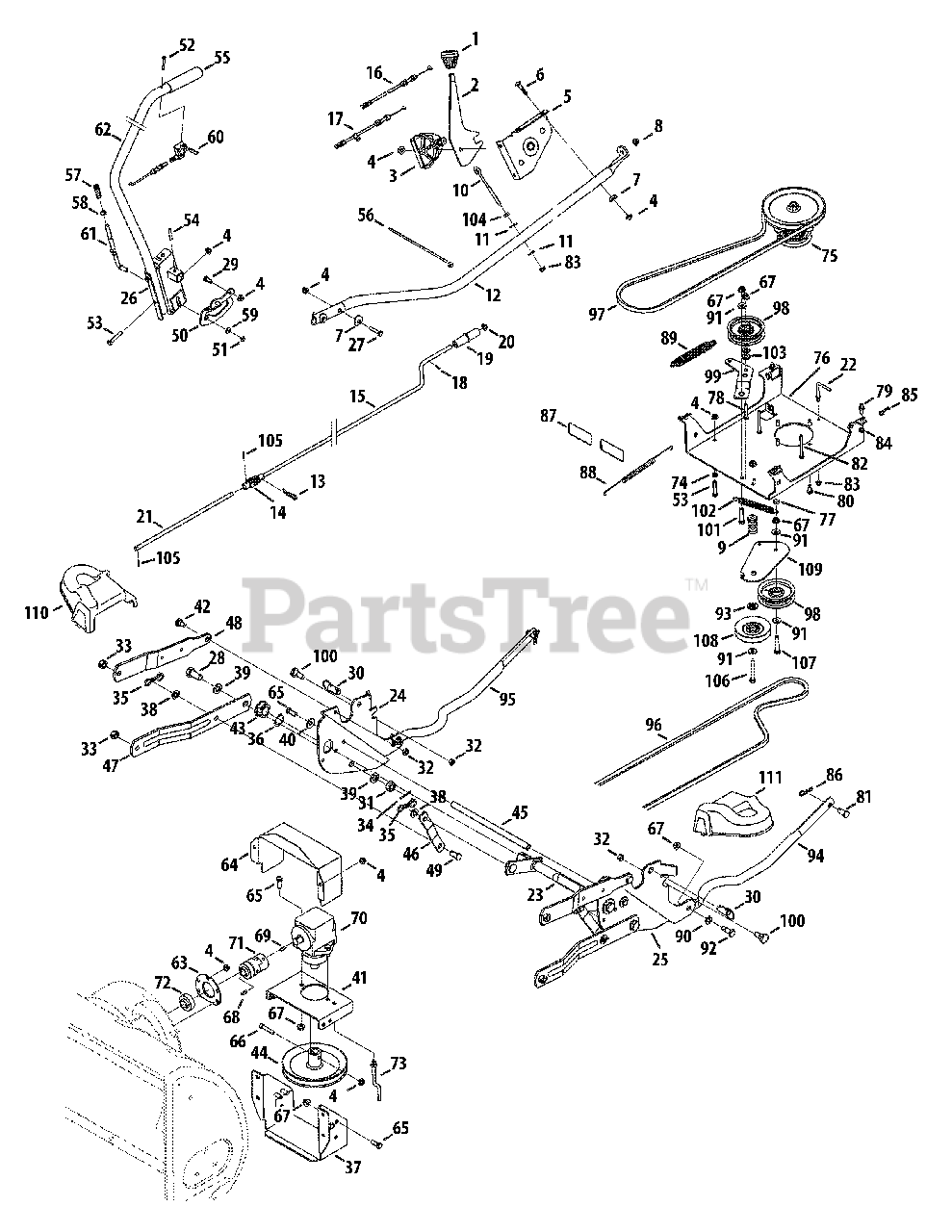

Linkage Controls & Under Carriage Assembly Parts Diagram

  • Title

1

Cub Cadet 720-04039

Knob

$10.99

$

In Stock, only 1 left!

0

2

Cub Cadet 784-5604A-0637

Chute Tilt Handle

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 603-0302-0637

Chute Tilt Bracket Assembly
(Superseded to 603-0302A-0637)

$69.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 9

0

7

Cub Cadet 936-0451

Saddle Washer, .32 x .93
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

8

Cub Cadet 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 911-0242

Spacer

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 710-05050

Eye Bolt

$7.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0270

Bell Washer, .265 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 750-04467

Support Chute Tube

Variations

Cub Cadet 750-04467-0637

TUBE:CHUTE:SUPPORT - POWDER BLACK (0637)

$127.99

$

Usually ships in 3-6 days

0

$118.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 914-0101

Cotter Pin, .08 x 1.42
(Superseded to 714-0101)

$

$

Not available

14

Cub Cadet 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

15

Cub Cadet 747-1201A

Chute Crank Rod, .38 x 35

$80.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 746-1108

Chute Cable, 62"
(Superseded to 946-1108)

$62.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 746-1109

Chute Cable w/ Clip, 62"
(Superseded to 746P1109)

$68.99

$

In Stock, Qty 5

0

18

Cub Cadet 915-0138

Rolled Pin, 1/8 x .63

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 720-0201A

Crank Knob

$10.99

$

In Stock, Qty 5

0

20

Cub Cadet 926-0100

Push Cap, 3/8 ID
(Superseded to 726-0100)

$

$

Not available

21

Cub Cadet 747-04400A

Rod, .375 x 13.50

$22.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 711-04741

Belt keeper Pin

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 611-0132A-0637

Rod Assembly

$352.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 783-05434-0637

RH Support Plate Assembly

$

$

Not available

25

Cub Cadet 783-05435-0637

LH Support Plate Assembly

$

$

Not available

26

Cub Cadet 683-04150-0637

Lift Bracket Assembly

$83.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0964A

Hex Cap Screw, 5/8-18 x 1.31

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 714-04061

Quick Release Pin

$21.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0386A

Slotted Hex Nut, 5/8-18

$7.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

33

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 12

0

36

Cub Cadet 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

37

Cub Cadet 784-0402-0637

Skid Plate

$112.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 936-0272

Flat Washer, .51 x 1.0 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0366

Flat Washer, .64 x 1.12 x .125

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 936-0452

Bell Washer, .396 x 1.14 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

41

Cub Cadet 783-1014A-0637

Drive Mounting Bracket

$86.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-0234

Shoulder Screw, .5 x .29, 3/8-16

$10.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 741-0192

Flange Bearing w/ Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

44

Cub Cadet 756-1181A

Drive Pulley, 7"

$113.99

$

In Stock, only 1 left!

0

45

Cub Cadet 747-1192

Rod, 1/2 x 11.55

$50.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 783-0876

Link, 5.875

Variations

Cub Cadet 783-0876-0637

LINK - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 783-0877

Link, 15.4
(Superseded to 783-0877-0637)

Variations

Cub Cadet 783-0877-0637

LINK 15.3"LG - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 783-0878B-0637

Link, 13.25

$50.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 911-0332

Clevis Pin, .50 x .78

$16.99

$

In Stock, Qty 14

0

50

Cub Cadet 790-00110-0637

Snow Thrower Lift Bracket

$39.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 01001864

Hex Index Washer Screw #10-24
(Superseded to 1767754)

$

$

Not available

52

Cub Cadet 710-3143

Pan Phillips Screw, #10-24 x .75

$11.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

54

Cub Cadet 915-0114

Heavy Duty Spirol Pin, 1/4 x 1.5
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

55

Cub Cadet 720-0274

Handle Grip

$11.99

$

In Stock, Qty 8

0

56

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 932-0306A

Compression Spring

$8.49

$

In Stock, only 2 left!

0

58

Cub Cadet 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

59

Cub Cadet 936-0400

Flat Washer, .194 x .62 x .063
(Superseded to 736-0400)

$

$

Not available

60

Cub Cadet 746-1103A

Lift Cable, 42" w/ Trigger Control
(Superseded to 946-1103A)

$73.99

$

In Stock, only 1 left!

0

61

Cub Cadet 747-1203

Lift Index Rod

$55.99

$

In Stock, only 3 left!

0

62

Cub Cadet 750-1221-0637

Lift Handle Tube

$279.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 05931A

Bearing Housing, 1.85 ID

$10.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 703-2736-0637

Belt Cover

$33.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 710-3251

Socket Head Cap Screw

$5.99

$

In Stock, only 2 left!

0

67

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

68

Cub Cadet 914-0122

Square Key, 3/16 x .75
(Superseded to 714-0122)

$

$

Not available

69

Cub Cadet 914-0126

Hi-pro Key, 3/16 x .75
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

70

Cub Cadet 917-1714A

Right Angle Drive
(Superseded to 917-1714B)

$621.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 918-0691

Coupling

$170.99

$

In Stock, only 3 left!

0

72

Cub Cadet 941-0309

Flange Ball Bearing, .75 x 1.85

$74.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 747-1257

Belt Keeper Rod

$21.99

$

In Stock, only 2 left!

0

74

Cub Cadet 912-3010

Flange Nut, 5/16
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 618-0411

Spindle Assembly
(Superseded to 918-0411A)

$125.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 683-04605-0637

Pulley Mounting Bracket

$350.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 912-0266

Nut, 3/8-16, Jamlock
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

78

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

79

Cub Cadet 710-04511

Pin 5/16-18

$34.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 710-1260A

Carriage Bolt, 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

81

Cub Cadet 911-0310

Clevis Pin, .5 x 1.18
(Superseded to 711-0310)

$

$

Not available

82

Cub Cadet 911-1000

Belt Keeper Pin

$10.99

$

In Stock, only 2 left!

0

83

Cub Cadet 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

84

Cub Cadet 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

85

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

86

Cub Cadet 714-0147

Internal Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 6

0

87

Cub Cadet 930-3000

Reflector

$17.99

$

In Stock, only 2 left!

0

88

Cub Cadet 732-04237

Extension Spring .50 x 12.00

$23.99

$

In Stock, Qty 5

0

89

Cub Cadet 932-0594A

Extension Spring .91 x 7.33

$14.99

$

In Stock, Qty 20+

0

90

Cub Cadet 936-0192

Flat Washer, .531 x .93 x .09

$4.49

$

In Stock, Qty 18

0

91

Cub Cadet 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

92

Cub Cadet 938-0145

Shoulder Screw, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 938-0347

Shoulder Spacer, .625 x .169

$10.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 749-1103-0637

LH Support Tube

$52.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 749-1104-0637

RH Support Tube

$52.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 954-3053

V-Belt

$54.99

$

In Stock, Qty 8

0

97

Cub Cadet 954-0498

V-Belt

$44.99

$

In Stock, Qty 7

0

98

Cub Cadet 756-0627D

Idler Pulley 3.50 dia.

$30.99

$

In Stock, Qty 20+

0

99

Cub Cadet 783-1291-0637

Idler Bracket
(Superseded to 783-1291A-0637)

$12.99

$

In Stock, only 3 left!

0

100

Cub Cadet 738-0143

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

101

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

102

Cub Cadet 732-0978

Extension Spring, .620 x 5.62

$10.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

104

Cub Cadet 712-3006

Hex Lock Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

105

Cub Cadet 715-04095

Spirol Pin, .156 x .875

$5.49

$

In Stock, Qty 14

0

106

Cub Cadet 710-3022

Hex Cap Screw, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

107

Cub Cadet 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

108

Cub Cadet 756-0487

Idler pulley, 4" Diameter

$48.99

$

In Stock, only 1 left!

0

109

Cub Cadet 784-5727-0637

Idler Pivot Arm

$73.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 731-05980

RH Wheel Cover

$

$

Not available

111

Cub Cadet 731-05981

LH Wheel Cover

$

$

Not available
