126 (19A-126-100) - Cub Cadet 42" Two Stage Snow Thrower Attachment (2008 & Before) Linkage & Controls Parts Diagram

42" Two Stage Snow Thrower Attachment

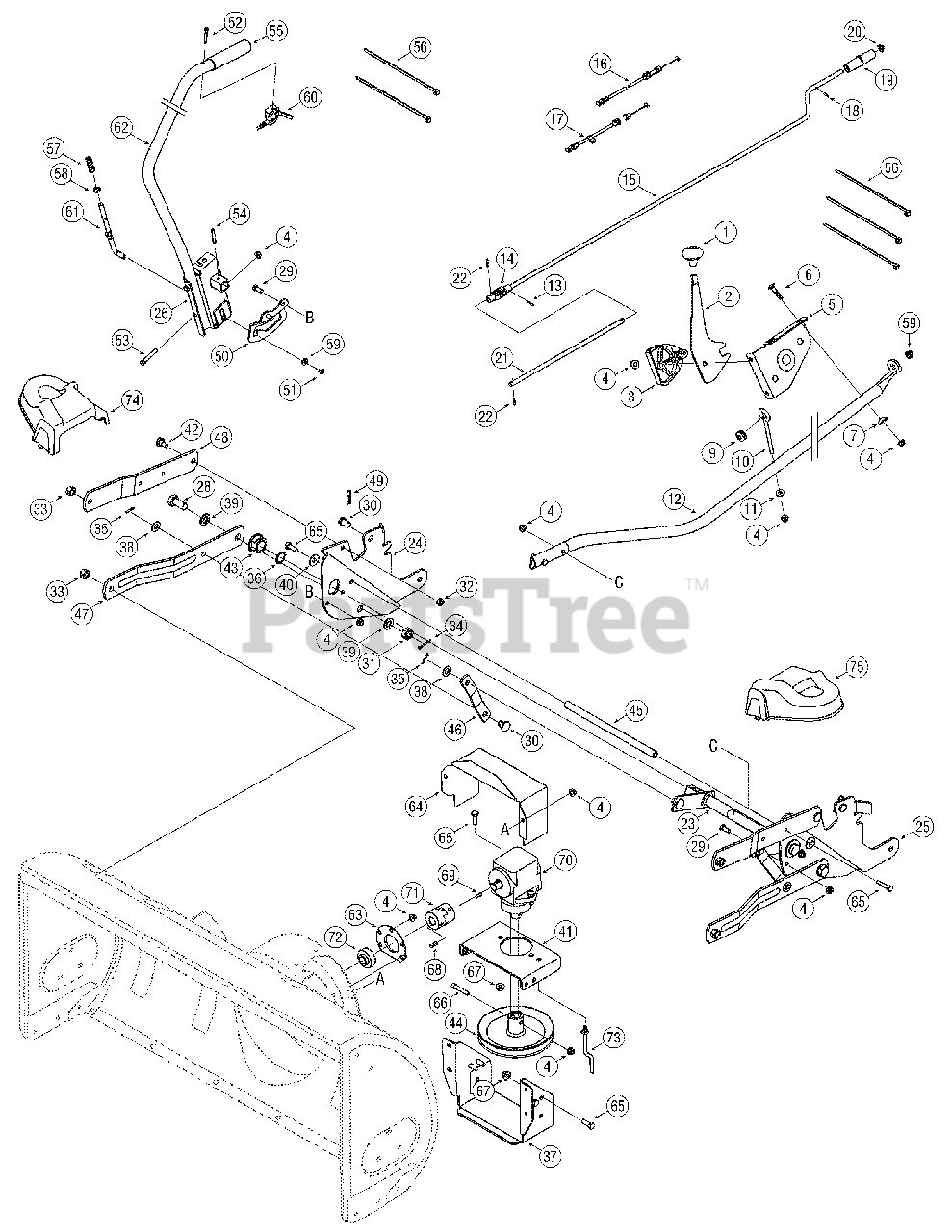

Linkage & Controls Parts Diagram

  • Title

1

Cub Cadet 720-04039

Knob

$10.99

$

In Stock, only 2 left!

0

2

Cub Cadet 784-5604A

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604A-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-1313C

Chute Til Cable Guide

$11.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 603-0302

Chute Tilt Bracket Assembly
(Superseded to 603-0302A-0637)

Variations

Cub Cadet 603-0302-0498

Chute Tilt Bracket - OLD CUB YELLOW (0498)

$69.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0302-0637

Chute Tilt Bracket - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0302-0716

Chute Tilt Bracket - CUB YELLOW-99 (0716)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet 736-0451

Saddle Washer, .32 x .93

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 735-0234

Rubber Grommet, .44 x .94 x .5

$5.49

$

In Stock, only 2 left!

0

10

Cub Cadet 747-0697

Eye Bolt

$8.49

$

In Stock, only 1 left!

0

11

Cub Cadet 736-0242

Bell Washer, .340 x .872

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 750-04467

Support Chute Tube

Variations

Cub Cadet 750-04467-0637

TUBE:CHUTE:SUPPORT - POWDER BLACK (0637)

$127.99

$

Usually ships in 3-6 days

0

$118.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 784-5149

Joint Block Assembly
(Superseded to 684-04350)

$29.99

$

In Stock, only 4 left!

0

15

Cub Cadet 747-1201

Chute Crank Rod, .375 x 33
(Superseded to 747-1201A)

$80.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 746-1108

Chute Cable, 62"
(Superseded to 946-1108)

$62.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 746-1109

Chute Cable w/ Clip, 62"
(Superseded to 746P1109)

$68.99

$

In Stock, Qty 5

0

18

Cub Cadet 715-0138

Rolled Pin, 1/8 x .63
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 720-0201A

Crank Knob

$10.99

$

In Stock, only 4 left!

0

20

Cub Cadet 726-0100

Push Cap, 3/8 ID

$4.49

$

In Stock, only 3 left!

0

21

Cub Cadet 747-04400

Rod, .375 x 11.375
(Superseded to 747-04400A)

$22.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 715-0129

Spirol Pin, .125 x .82

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 611-0132A

Rod Assembly
(Superseded to 611-0132A-0637)

Variations

Cub Cadet 611-0132A-0637

ROD ASM - POWDER BLACK (0637)

$352.99

$

Usually ships in 3-6 days

0

$352.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 783-05434

RH Support Plate Assembly

Variations

Cub Cadet 783-05434-0637

PLATE-RH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 783-05435

LH Support Plate Assembly

Variations

Cub Cadet 783-05435-0637

PLATE-LH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 683-04150

Lift Bracket Assembly

Variations

Cub Cadet 683-04150-0716

BRACKET:LIFT SNOW - CUB YELLOW-99 (0716)

$83.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-04150-0637

BRACKET:LIFT SNOW - POWDER BLACK (0637)

$83.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

28

Cub Cadet 710-0964A

Hex Cap Screw, 5/8-18 x 1.31

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 18

0

31

Cub Cadet 712-0386A

Slotted Hex Nut, 5/8-18

$7.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-3000

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

33

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 8

0

34

Cub Cadet 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 714-0474

Cotter Pin, .125 x .75

$4.99

$

In Stock, Qty 14

0

36

Cub Cadet 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

37

Cub Cadet 784-0402

Skid Plate
(Superseded to 784-0402-0637)

Variations

Cub Cadet 784-0402-0637

PLATE-SKID - POWDER BLACK (0637)

$112.99

$

Usually ships in 3-6 days

0

$112.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 736-0272

Flat Washer, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0366

Flat Washer, .64 x 1.12 x .125

$4.49

$

In Stock, only 2 left!

0

40

Cub Cadet 736-0452

Bell Washer, .396 x 1.14 x .095

$4.99

$

In Stock, Qty 7

0

41

Cub Cadet 783-1014A

Drive Mounting Bracket
(Superseded to 783-1014A-0637)

Variations

Cub Cadet 783-1014A-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

$86.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-0234

Shoulder Screw, .5 x .29, 3/8-16

$10.99

$

In Stock, only 1 left!

0

43

Cub Cadet 741-0170

Flange Bearing w/ Flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

44

Cub Cadet 756-1181A

Drive Pulley, 7"

$113.99

$

In Stock, only 1 left!

0

45

Cub Cadet 747-1192

Rod, 1/2 x 11.55

$50.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 783-0876

Link, 5.875

Variations

Cub Cadet 783-0876-0637

LINK - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 783-0877

Link, 15.4
(Superseded to 783-0877-0637)

Variations

Cub Cadet 783-0877-0637

LINK 15.3"LG - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 783-0878

Link, 13.35
(Superseded to 783-0878B-0637)

Variations

Cub Cadet 783-0878-0637

USE 783-0878B-0637 LINK-UPPER - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 790-00110

Snow Thrower Lift Bracket

Variations

Cub Cadet 790-00110-0637

BRACKET:LOCKOUT - POWDER BLACK

$39.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-1268

Hex Index Washer Screw #10-16

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 710-3143

Pan Phillips Screw, #10-24 x .75

$11.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0

54

Cub Cadet 715-0114

Heavy Duty Spirol Pin, 1/4 x 1.5

$9.49

$

In Stock, Qty 5

0

55

Cub Cadet 720-0274

Handle Grip

$11.99

$

In Stock, only 1 left!

0

56

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

57

Cub Cadet 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

58

Cub Cadet 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

59

Cub Cadet 736-0400

Flat Washer, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

60

Cub Cadet 746-1103A

Lift Cable, 42" w/ Trigger Control
(Superseded to 946-1103A)

$73.99

$

In Stock, only 3 left!

0

61

Cub Cadet 747-1203

Lift Index Rod

$55.99

$

In Stock, only 4 left!

0

62

Cub Cadet 750-1221

Lift Handle Tube

Variations

Cub Cadet 750-1221-0637

TUBE-LIFT HANDLE - POWDER BLACK (0637)

$279.99

$

Usually ships in 3-6 days

0

Cub Cadet 750-1221-0716

TUBE-LIFT HANDLE - CUB YELLOW-99 (0716)

$279.99

$

Usually ships in 3-6 days

0

$279.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 05931A

Bearing Housing, 1.85 ID

$10.99

$

In Stock, only 2 left!

0

64

Cub Cadet 703-2736

Belt Cover

Variations

Cub Cadet 703-2736-0498

COVER-BELT - OLD CUB YELLOW (0498)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2736-0637

COVER-BELT - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 710-3251

Socket Head Cap Screw

$5.99

$

In Stock, only 2 left!

0

67

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

68

Cub Cadet 714-0122

Square Key, 3/16 x .75

$3.99

$

In Stock, Qty 15

0

69

Cub Cadet 714-0126

Hi-pro Key, 3/16 x .75

$4.99

$

In Stock, Qty 19

0

70

Cub Cadet 717-1714A

Right Angle Drive
(Superseded to 917-1714B)

$621.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 718-0691

Coupling
(Superseded to 918-0691)

$170.99

$

In Stock, only 4 left!

0

72

Cub Cadet 741-0309

Flange Ball Bearing, .75 x 1.85
(Superseded to 941-0309)

$74.99

$

In Stock, only 2 left!

0

73

Cub Cadet 747-1257

Belt Keeper Rod

$21.99

$

In Stock, only 2 left!

0

74

Cub Cadet 731-05980

Steering Linkage Cover RH

$

$

Not available

75

Cub Cadet 731-05981

Steering Linkage Cover LH

$

$

Not available
