125P4B-0032-H5 - Briggs & Stratton Vertical Engine Crankshaft Group Parts Diagram

Vertical Engine

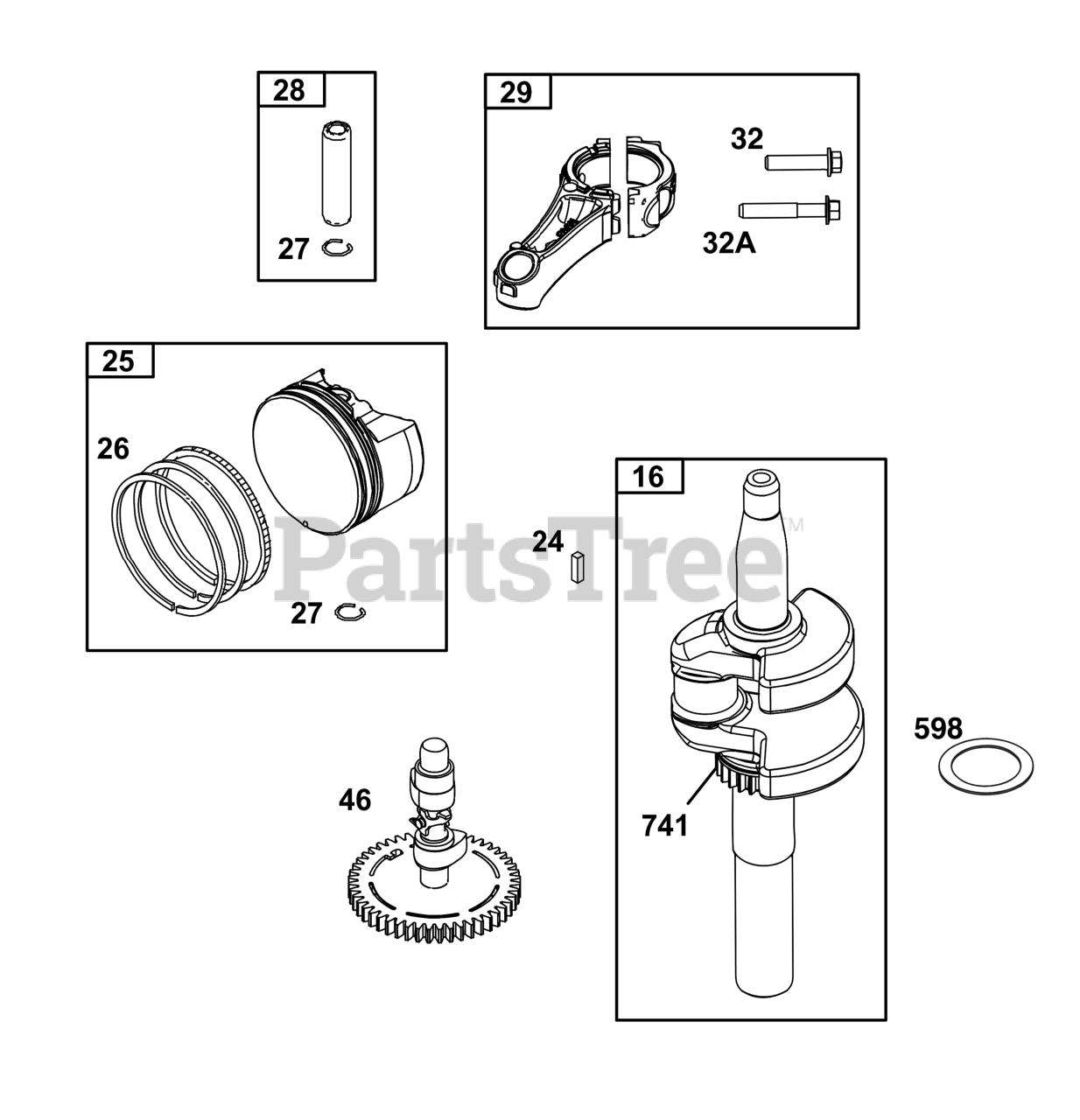

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 597407

CRANKSHAFT ASSY

$229.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 590404

Piston Assembly

Note: (Standard)

$71.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 590405

Piston Assembly
(Superseded to 590407)

Note: (.020" Oversize)

$116.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 590402

Ring Set

Note: (Standard)

$49.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 590403

Ring Set

Note: (.020" Oversize)

$52.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 691588

Lock-Piston Pin

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 796470

Rod-Connecting

$43.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)(Short)

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw (Connecting Rod)

Note: (Connecting Rod)(Long)

$4.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 694040

Camshaft

$74.99

$

Usually ships in 2-12 days

0

598

Briggs & Stratton 592587

Shims-End Play Kit

$5.49

$

In Stock, only 1 left!

0

741

Briggs & Stratton 797521

Gear-Timing

$13.99

$

In Stock, only 3 left!

0
