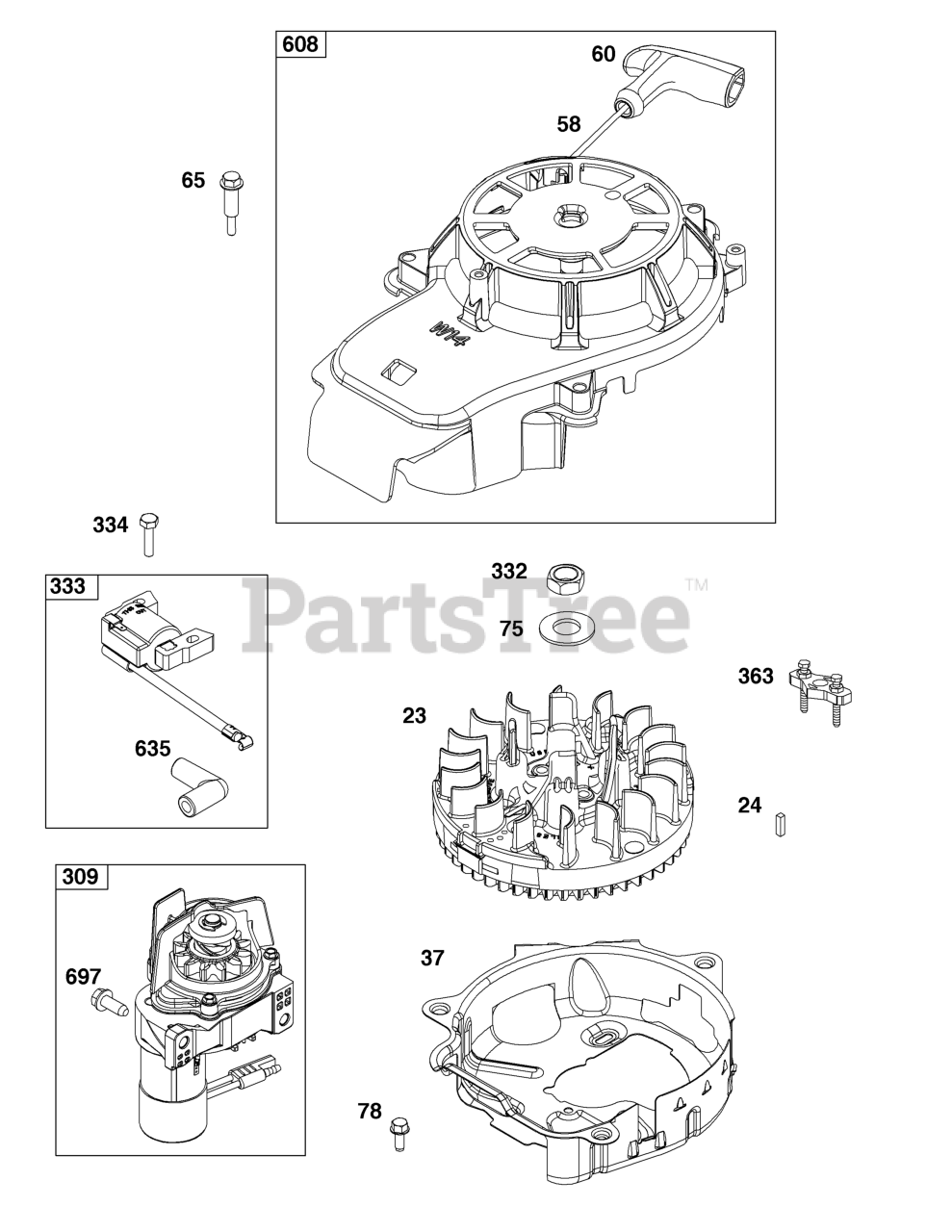

125P05-0010-F1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 597477

FLYWHEEL ASSY

$185.99

$

Usually ships in 2-12 days

0

24

KEY, Flywheel

Note: (Part information located in Crankshaft Group.)

$

$

Not available

37

Briggs & Stratton 597479

GUARD, Flywheel

$35.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 591108

Rope-Starter

$7.99

$

In Stock, only 1 left!

0

60

Briggs & Stratton 281434S

Grip-Starter Rope

$3.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 590586

SCREW

Note: (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

75

Briggs & Stratton 691736

Washer (Flywheel)

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 597274

MOTOR, Starter
(Superseded to 84005205)

$211.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690662

Nut

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 595554

ARMATURE-MAGNETO

$38.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 793454

Screw

Note: (Magneto Armature)

$4.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

608

Briggs & Stratton 597268

STARTER, Rewind

$87.99

$

In Stock, Qty 12

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 691108

SCREW

$3.49

$

In Stock, Qty 20+

0
