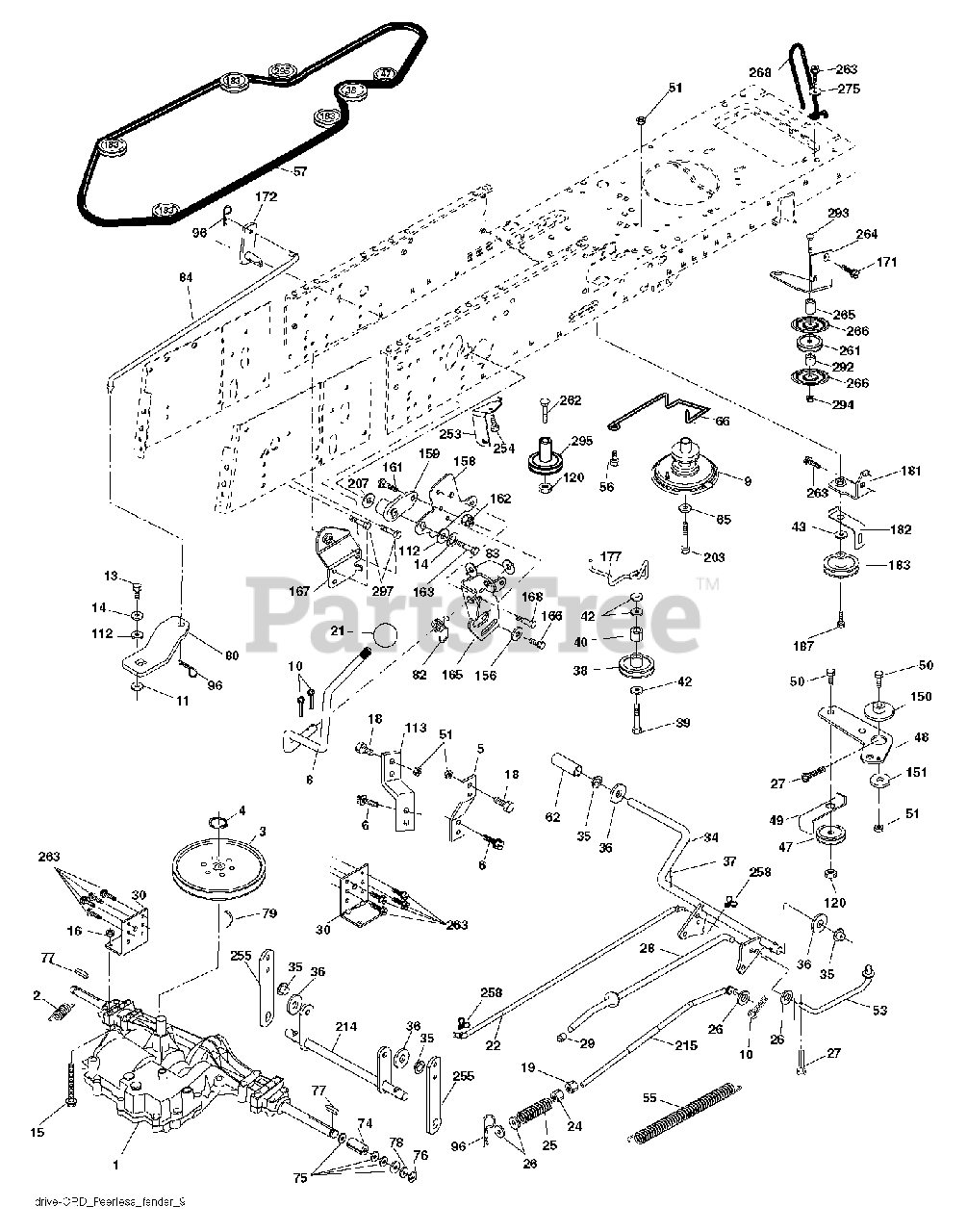

12597 RB (960610341-00) - Poulan Pro Lawn Tractor (2011-12) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Poulan 000000000

Note: TRANSAXLE PEERLESS 206-546 (165628)

$

$

Not available

2

Poulan 532146682

SPRING,BRAKE RETURN

$8.99

$

In Stock, only 2 left!

0

3

Poulan 532165999

(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

4

Poulan 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 7

0

5

Poulan 532121520

STRAP TORQUE

$7.99

$

In Stock, only 3 left!

0

6

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 532192706

ROD SHIFT FENDER ADJUST LT
(Superseded to 585139901)

$20.99

$

Usually ships in 3-10 days

0

9

Poulan 532408579

$

$

Not available

10

Poulan 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 532105701

WASH-SHFT PLT LT

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 874550412

Bolt, 1/4-20 unf Grade 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Poulan 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 532106933

KNOB T (1/2-HOLE)

$7.99

$

In Stock, only 1 left!

0

22

Poulan 532175607

(Superseded to 583070201)

$27.99

$

Usually ships in 3-10 days

0

24

Poulan 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

27

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Poulan 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Poulan 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

35

Poulan 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

36

Poulan 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532124963

(Superseded to 532002882)

$

$

Not available

38

Poulan 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

39

Poulan 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532124965

SPACER T

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

43

Poulan 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 532127783

Idler Pulley
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Poulan 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

49

Poulan 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

53

Poulan 532199652

LINK.CLUTCH.7.66.2005

$13.99

$

Usually ships in 3-10 days

0

55

Poulan 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

56

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

57

Poulan 532165631

V-BELT.KEV.111"

$84.99

$

In Stock, only 2 left!

0

62

Poulan 532124872

(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

74

Poulan 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

75

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

78

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

79

Poulan 532125096

KEY STD (1373) DANA

$9.49

$

In Stock, only 1 left!

0

80

Poulan 532145090

ARM SHIFT

$7.99

$

Usually ships in 3-10 days

0

82

Poulan 532165711

SHIFT SPRING

$7.49

$

In Stock, only 1 left!

0

83

Poulan 819171216

WASHER
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Poulan 532165620

$

$

Not available

96

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Poulan 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

113

Poulan 532127285

STRAP TORQUE LH LT

$

$

Not available

120

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

150

Poulan 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

151

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Poulan 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

158

Poulan 532437458

BRACKET.SHIFT.MOUNT

$7.49

$

Usually ships in 3-10 days

0

159

Poulan 532183900

HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Poulan 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Poulan 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

163

Poulan 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

165

Poulan 532438250

BRACKET.PIVOT.LEVER

$7.49

$

Usually ships in 3-10 days

0

166

Poulan 817490510

SCREW

$4.99

$

Usually ships in 3-10 days

0

167

Poulan 532165588

BRACKET.SUPT.SHIFT.CRD
(Superseded to 574988801)

$

$

Not available

168

Poulan 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

171

Poulan 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

172

Poulan 532165635

(Superseded to 584324101)

$14.99

$

Usually ships in 3-10 days

0

177

Poulan 532165932

KEEPER

$7.99

$

Usually ships in 3-10 days

0

181

Poulan 532180211

(Superseded to 583099101)

$5.99

$

Usually ships in 3-10 days

0

182

Poulan 532182682

(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

183

Poulan 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

187

Poulan 817580520

Bolt, 5/16-18 X 1.25

$4.99

$

In Stock, only 3 left!

0

203

Poulan 871170780

(Superseded to 71170780)

$9.49

$

In Stock, only 1 left!

0

207

Poulan 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

214

Poulan 532175609

(Superseded to 583070401)

$11.99

$

Usually ships in 3-10 days

0

215

Poulan 532410142

$

$

Not available

253

Poulan 532175028

$

$

Not available

254

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

255

Poulan 532175608

(Superseded to 583070301)

$2.99

$

Usually ships in 3-10 days

0

258

Poulan 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

261

Poulan 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

263

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

262

Poulan 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

264

Poulan 532431174

(Superseded to 583467201)

$13.99

$

Usually ships in 3-10 days

0

265

Poulan 532426913

$

$

Not available

266

Poulan 532182061

(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

268

Poulan 532182402

(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

275

Poulan 819131614

(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

292

Poulan 532400271

(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

293

Poulan 872140628

$4.99

$

In Stock, only 2 left!

0

294

Poulan 532197033

NUT, HEX 3/8-16

$4.99

$

Usually ships in 3-10 days

0

295

Poulan 532179114

PULLEY IDLER COMPOSITE

$31.99

$

Usually ships in 3-10 days

0

297

Poulan 817490610

SCREW LT.3/8-46X5/8

$4.99

$

Usually ships in 3-10 days

0
