12590 - Troy-Bilt Bumper Bumper Attachment Parts Diagram

Bumper

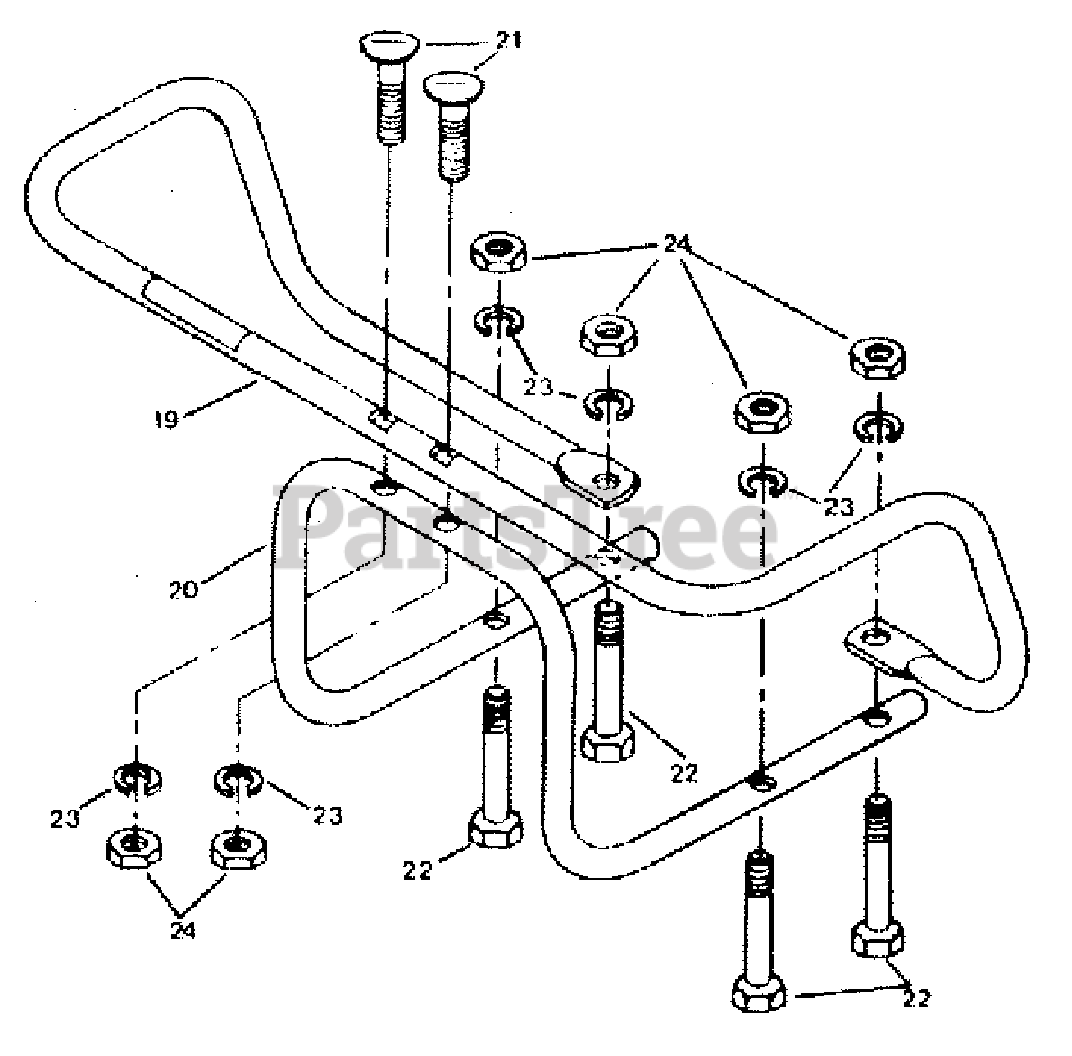

Bumper Attachment Parts Diagram

  • Title

19

MTD 1901456001

Bumper-top section

$

$

Not available

20

Troy-Bilt 1900769001

Bumper-bottom section

$

$

Currently unavailable

21

Troy-Bilt 9795

Bolt-curved head, 5/16-18 x 2
(Superseded to 710-1174)

Note: (special bolt); also see #1874 hardware kit

$7.49

$

In Stock, Qty 20+

0

22

MTD 1111608

Bolt-hex hd., 5/16-18 x 2-1/2",

Note: not avail. separately (order #1874 hardware kit)

$

$

Not available

23

Troy-Bilt 1100242

lockwasher-5/16,
(Superseded to 936-0119)

Note: not avail. separately (order #1874 hardware kit)

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1186230

Nut-hex. 5/16-18,
(Superseded to 912-3010)

Note: not avail. separately (order #1874 hardware kit)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1874

Hardware Kit -

Note: includes: two #9795 curved head bolts; four #1111608 hex hd. bolts; six #1100242 lockwashers; six #1186230 hex nuts

$

$

Currently unavailable

Troy-Bilt 1901457

Bumper Attachment -

Note: complete attachment with mounting instructions included

$

$

Currently unavailable
