12589 - Troy-Bilt Row Marker MAIN ASSEMBLY Parts Diagram

Row Marker

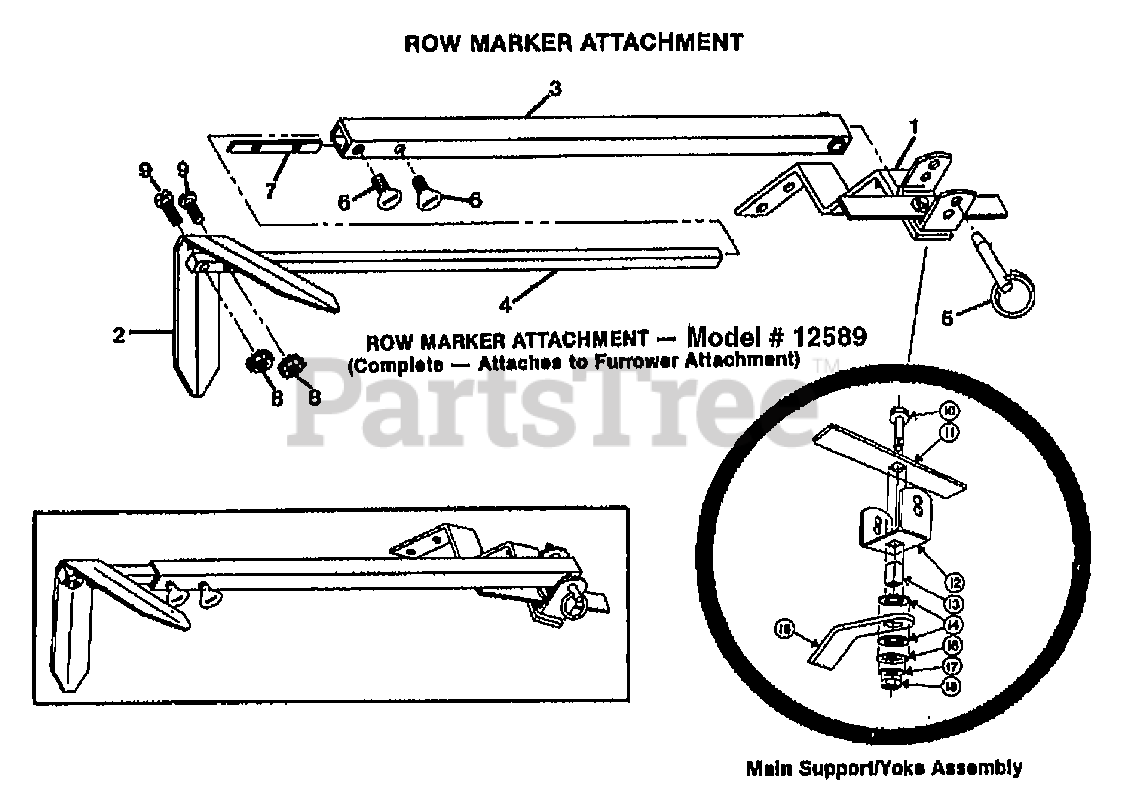

MAIN ASSEMBLY Parts Diagram

  • Title

Troy-Bilt 12589

ROW MARKER II

$

$

Currently unavailable

1

Troy-Bilt 1904522001

MAIN SUPPORT ASSY

$

$

Currently unavailable

2

MTD 1594

MARKER-ROW MARKER

$

$

Not available

3

MTD 1904524001

MARKER ARM

$

$

Not available

4

MTD 1904523001

MARKER ARM EXTENSION

$

$

Not available

5

Troy-Bilt 9347

PIN # COTTERLESS HITCH ZP
(Superseded to GW-9347)

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

SCR-THUMB 1/4-20 X .75 ZP

$

$

Currently unavailable

7

MTD 1596

BAR-NUT

$

$

Not available

8

MTD 9828

NUT W/LKWASHER 10-24 ZP

$

$

Not available

9

Troy-Bilt 1100135

SCR-RH M10-24X1.0 NC-2A

$

$

Not available

MTD 1837

HDWE PKG-ROW MARKER

$

$

Not available

Troy-Bilt 12582

H/F & ROWMARKER-SM FR (2 BXS)

$

$

Currently unavailable

Troy-Bilt 1569

ASSM-MAIN SUPT PAINT

$

$

Currently unavailable

10

Troy-Bilt 90047

SCR-HFLK 3/8-16X1.50

$

$

Currently unavailable

11

MTD 1593

BAR-STOP

$

$

Not available

12

MTD 1592

YOKE-ROW MARKER

$

$

Not available

13

MTD 1591

TUBING-SQ .5 X .907

$

$

Not available

14

Troy-Bilt 1590

WASHER-.375X.51X.125
(Superseded to GW-1590)

$7.99

$

Usually ships in 3-6 days

0

15

MTD 1588

SUPT-MAIN ROW MARKER

$

$

Not available

16

MTD 1589

WASHER-SQ HOLE 1.38X5SQX.12

$

$

Not available

17

MTD 9925

WASHER-.994X.413X.145

$

$

Not available

18

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0
