12583 - Troy-Bilt Tine Attachment Tine Attachment Cradle Parts Diagram

Tine Attachment

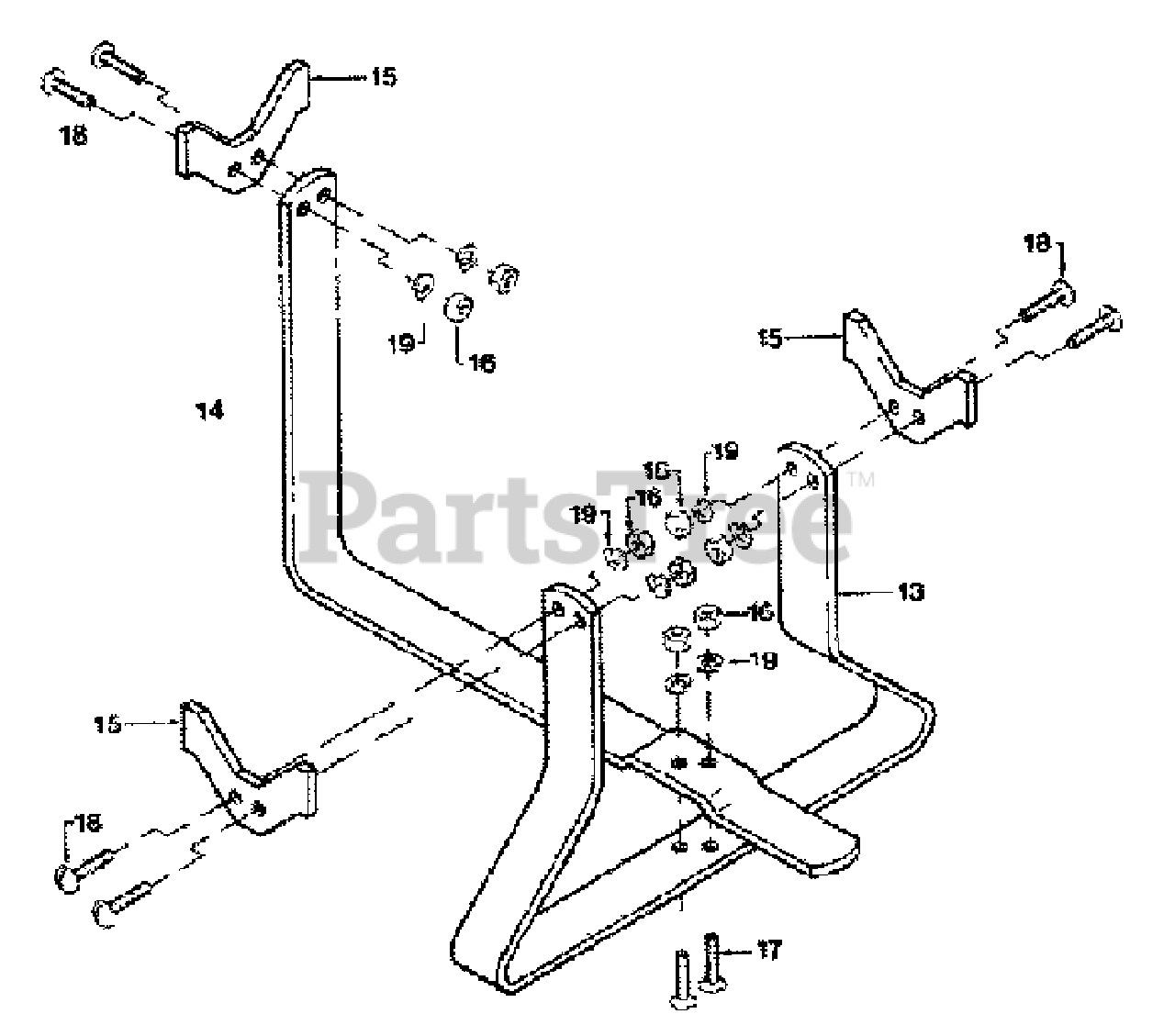

Tine Attachment Cradle Parts Diagram

  • Title

Troy-Bilt 12583

Tine Attachment Cable-complete

Note: (Incl. Ref. No.'s 13 - 19). For storing the tine attachment when removed from power unit. Also assists in removal and replacement of tine attachment.

$

$

Currently unavailable

13

Troy-Bilt 1900894001

Rear Cradle Support

$

$

Currently unavailable

14

Troy-Bilt 1900893001

Front Cradle Support

$

$

Currently unavailable

15

Troy-Bilt 1900895001

Tine Cradle Plate

$

$

Currently unavailable

16

Troy-Bilt 1186229

Nut-hex, 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

17

MTD 9580

Screw-hex hd., 1/4-20 x 3/4"

$

$

Not available

18

Troy-Bilt 90070

Screw-Round-head, 1/4-20 x 3/4"

$

$

Currently unavailable

19

Troy-Bilt 1100241

Lockwasher-spring lock, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
