12580 - Troy-Bilt Kickstand Attachment Kickstand Attachment Parts Diagram

Kickstand Attachment

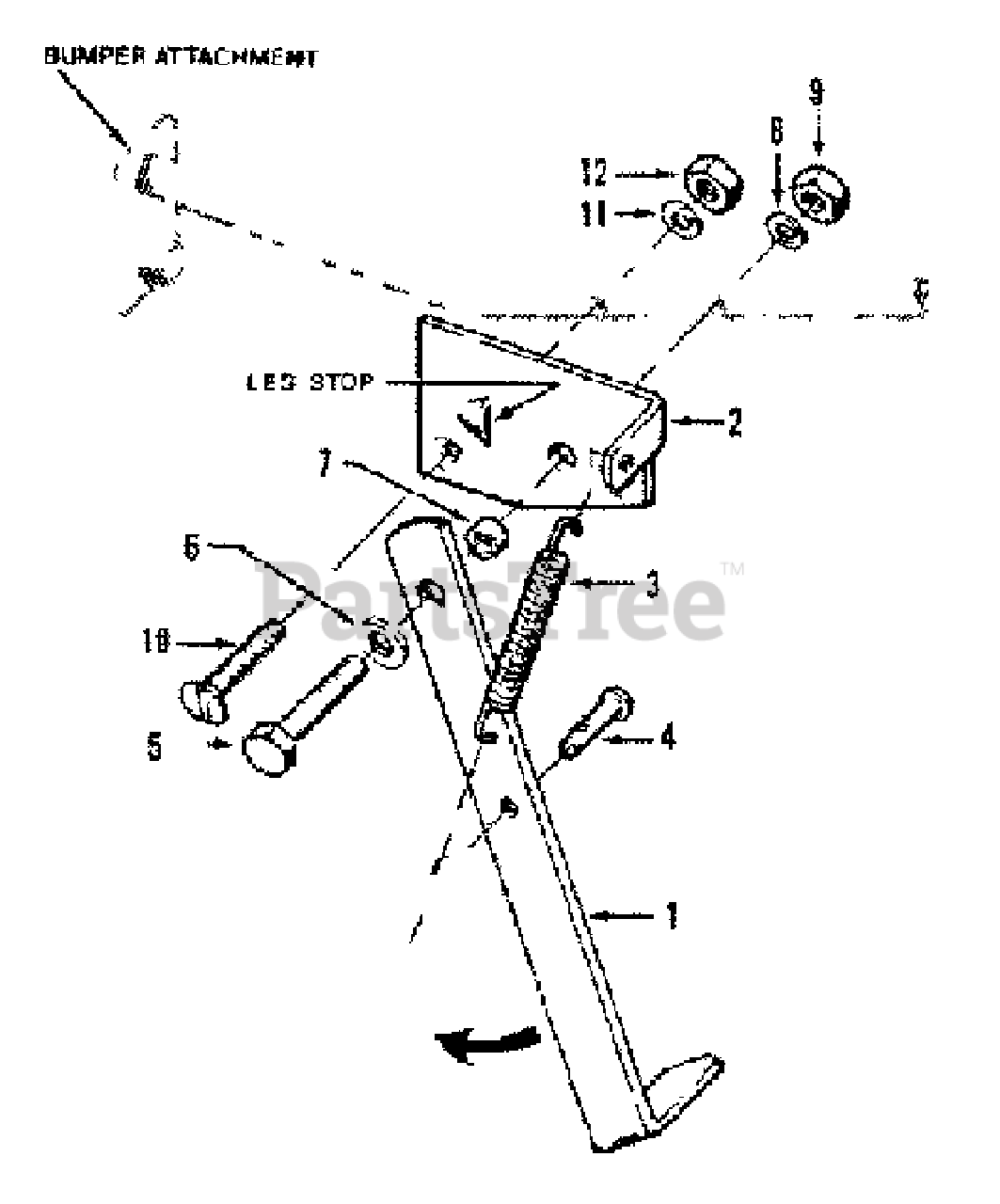

Kickstand Attachment Parts Diagram

  • Title

Troy-Bilt 12580

Kickstand - complete

Note: (incl. Ref. No.'s 1 through 12). Kickstand attaches to lower brace of bumper attachment (1932)

$

$

Currently unavailable

1

Troy-Bilt 1904520001

Leg-kickstand

$

$

Currently unavailable

2

Troy-Bilt 1904521001

Plate-kickstand mounting

$

$

Currently unavailable

3

Troy-Bilt 1492

Spring-kickstand
(Superseded to GW-1492099)

$10.99

$

In Stock, only 3 left!

0

4

MTD 9336

Pin-clevis

$

$

Not available

5

MTD 1111606

Bolt-hex hd., 5/16-18 x 2", Grade 5

$

$

Not available

6

Troy-Bilt 9902

Washer - flat, 5/16", S.A.E.

$

$

Currently unavailable

7

MTD 9473

Bushing-.438"/g. (.313" O.D., .275" I.D.)

$

$

Not available

8

Troy-Bilt 1100242

Lockwasher-spring lock, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186230

Nut-hex, 5/16"-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 9567

Screw-flat hd., 1/4"-20 x 1-1/2"

$

$

Not available

11

Troy-Bilt 1100241

Lockwasher-spring lock, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 1186229

Nut-hex, 1/4"-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0
