12576 - Troy-Bilt PTO Log Splitter HYDRAULIC SYSTEM Parts Diagram

PTO Log Splitter

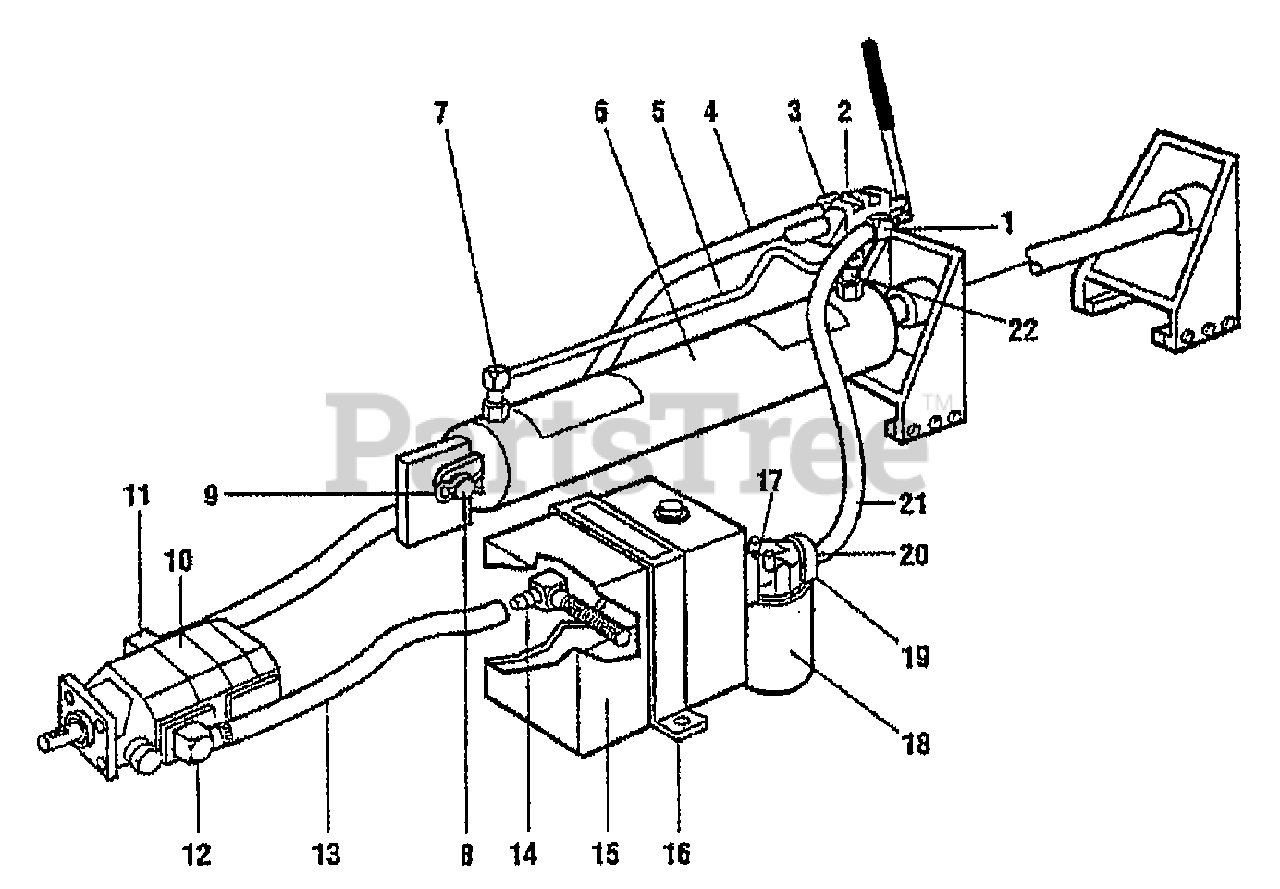

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

MTD 1915124

FITTING-90 DEG. 4501-12MP-12HI

$

$

Not available

2

MTD 1915151

VALVE-ENERGY

$

$

Not available

3

MTD 1915127

FITTING-90 DEG. 2501-10MJ-12MP

$

$

Not available

4

MTD 1915157

HOSE-HP 8C2AT-8MP-10FJX-45"

$

$

Not available

5

MTD 1915153

TUBING-FORMED 21-1/16"LONG

$

$

Not available

6

MTD 1915150

CYLINDER-3 1/2" TMC

$

$

Not available

7

MTD 1915149

FITTING-90 DEG. 2501-08MJ-08MP

$

$

Not available

8

MTD 1915163

PIN-CLEVIS F/CYL

$

$

Not available

9

MTD 1915142

CLIP-CLEVIS PIN F/CYL

$

$

Not available

10

MTD 1915144

PUMP-2 STAGE BARNES 11 GPM

$

$

Not available

11

MTD 1915126

FITTING-90 DEG. 5502-08MP-08FP

$

$

Not available

12

MTD 1915123

FITTING-90 DEG.4404-12HI-08MP

$

$

Not available

13

MTD 1915158

HOSE-LP 3/4" ID X 24"

$

$

Not available

14

Troy-Bilt 1915125

STRAINER & FTG F/PLASTIC TANK

$

$

Currently unavailable

15

MTD 1915161

TANK-PLASTIC

$

$

Not available

16

MTD 1915166

STRAP-TANK 14 GAX1"X24-1/4"

$

$

Not available

17

MTD 1915130

NIPPLE-BLK PIPE 3/4"X2"

$

$

Not available

18

Troy-Bilt 1915133

ELEMENT-FILTER

$

$

Currently unavailable

19

MTD 1915132

HOUSING-FILTER

$

$

Not available

20

MTD 1915129

FITTING-90 DEG. 4244-12HB-12MP

$

$

Not available

21

MTD 1915159

HOSE-LP 3/4" ID X 17"

$

$

Not available

22

MTD 1915131

STRAIGHT MALE CONNECTOR

$

$

Not available
