12575 - Troy-Bilt Power Rake Power Rake Attachment (Part 2) Parts Diagram

Power Rake

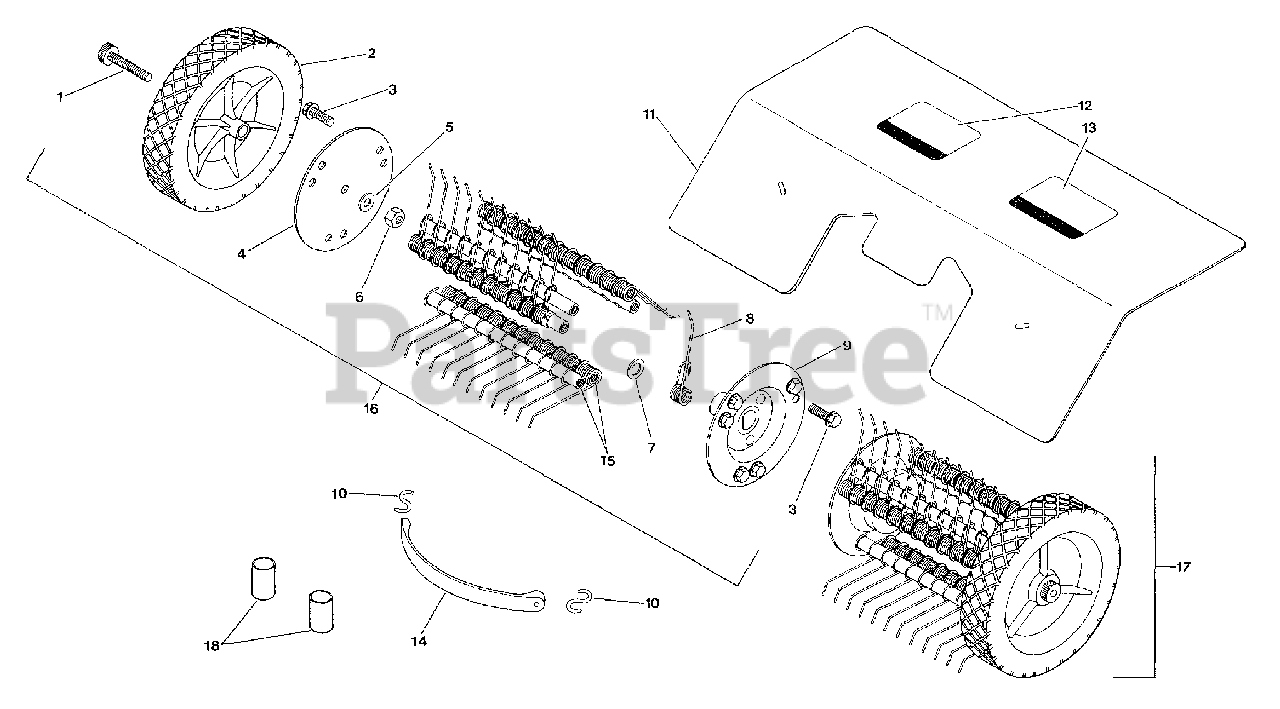

Power Rake Attachment (Part 2) Parts Diagram

  • Title

1

Troy-Bilt H213909

Bolt, Socket Hd., 3/8-16 x 1-1/2

$

$

Currently unavailable

2

Troy-Bilt H213911

Wheel/Tire Assembly

$

$

Currently unavailable

3

Troy-Bilt H213910

Whiz Bolt, 5/16-18 x 3/4

$

$

Currently unavailable

4

Troy-Bilt H213907

End Cap - outer

$

$

Currently unavailable

5

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt H200830

Washer, Flat, 1/2

$

$

Currently unavailable

8

Troy-Bilt H214174

Spring Tine Kit

Note: (Contains 12 spring tines)

$

$

Currently unavailable

Troy-Bilt H214175

Spring Tine Kit

Note: (Contains 36 spring tines)

$

$

Currently unavailable

9

Troy-Bilt H213908

End Cap - inner

$

$

Currently unavailable

10

Troy-Bilt H214186

S Hook

$

$

Currently unavailable

11

MTD 1915063

Debris Shield

Note: (Includes Ref. 12 and 13)

$

$

Not available

12

MTD 1983094

Decal - Caution

$

$

Not available

13

MTD 1983095

Decal - Warning

$

$

Not available

14

Troy-Bilt H214187

Strap, Debris Shield

$

$

Currently unavailable

15

Troy-Bilt H213904

Bar, tine retaining/tine attachment

$

$

Currently unavailable

16

Troy-Bilt H213912

Rake Assembly - Right

$

$

Currently unavailable

17

Troy-Bilt H213913

Rake Assembly - Left

$

$

Currently unavailable

18

Troy-Bilt 1983648

Spacer

$6.49

$

Usually ships in 3-6 days

0
