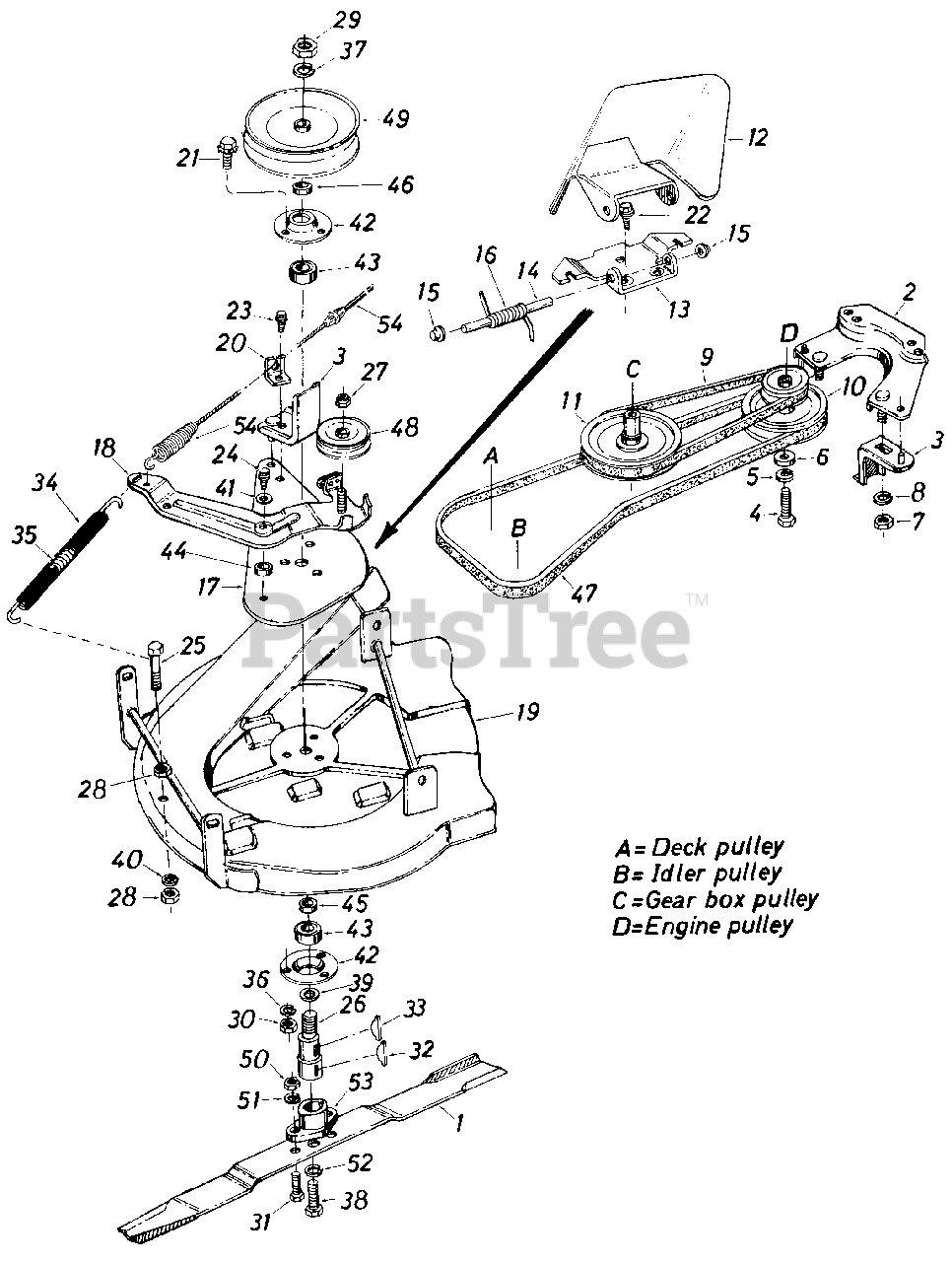

12574S - MTD Walk-Behind Mower (1985) Rotary (Part 3) Parts Diagram

Walk-Behind Mower

Rotary (Part 3) Parts Diagram

  • Title

1

MTD 742-0147

26" Blade
(Superseded to 942-0147)

$

$

Not available

2

MTD 10423

Belt Guard Cup Ass'y.

$

$

Not available

3

MTD 10426

Belt Keeper Ass'y.

$

$

Not available

4

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

6

MTD 736-0235

Fl-Wash. .406" I.D. x 1.25" O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

7

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 754-0143

3V-Belt 28" Lg.

$

$

Not available

10

MTD 756-0154

Double Pulley

$

$

Not available

11

MTD 756-0155

3/8" V-Pu I ley .502" I.D. x 6.5" O.D.

$

$

Not available

12

MTD 11634

Chute Cover Ass'y. Comp.

$

$

Not available

13

MTD 11396

Adapter Plate

$

$

Not available

14

MTD 711-0571

Hinge Pin

$

$

Not available

15

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

16

MTD 732-0261

Torsion Spring

$

$

Not available

17

MTD 12453

Deck Belt Guard Plate

$

$

Currently unavailable

18

MTD 12469

Deck Idler Brk't. Ass'y.

$

$

Not available

19

MTD 15325

26" Deck Ass'y.

$

$

Currently unavailable

20

MTD 15343

Cable Support Brk't.

$

$

Currently unavailable

21

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

22

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

24

MTD 710-0643

Hex L-Bolt 5/16-18 x 1.00" Lg.

$6.99

$

In Stock, Qty 5

0

25

MTD 710-0698

Hex Bolt 1/4-28 x 1.50" Lg.

$

$

Not available

26

MTD 711-0405

Blade Spindle

$

$

Not available

27

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

28

MTD 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

29

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

30

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 8)

$4.49

$

In Stock, Qty 20+

0

32

MTD 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

33

MTD 714-0388

#61 Hi-Pro Key 3116" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

34

MTD 731-0675

Plastic Tube .52" I.D. x 7.0" Lg.

$

$

Currently unavailable

35

MTD 732-0448

Ext. Spring .50" O.D. x 5.2" Lg.

$

$

Not available

36

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

38

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. Grade 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

39

MTD 13703

Bearing Shield

$

$

Not available

40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

41

MTD 736-0343

Fl-Wash. .330" I.D. x 1.25" O.D. x .120

$4.49

$

In Stock, Qty 7

0

42

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

43

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

44

MTD 750-0258

Spacer.315" I.D. x .75" O.D. x .37" Lg.

$11.99

$

In Stock, only 1 left!

0

45

MTD 750-0142

Spacer.836" I.D. x 1.01" O.D. x .320" Lg.
(Superseded to 950-0142)

$

$

Not available

46

MTD 748-0168

Spacer .630" I.D. x 1.135" O.D. x .195" Lg.

$

$

Currently unavailable

47

MTD 754-0267

"V"-Belt-A Sec. x 59.0" Lg.
(Superseded to 954-0267)

$55.99

$

In Stock, only 3 left!

0

48

MTD 756-0116

"V"-ldler 3.06" O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

49

MTD 756-0143

5/8" V-Pulley .625" I.D. x 7.0" O.D.

$

$

Not available

50

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

51

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

MTD 736-0217

L-Wash. 3/8 I.D. Heavy Duty

$4.49

$

In Stock, Qty 8

0

53

MTD 10769

Blade Adapter Kit

$

$

Not available

54

MTD 746-0488

Clutch Cable 56.0"

$

$

Not available
