12574S - MTD Walk-Behind Mower (1985) Rotary (Part 1) Parts Diagram

Walk-Behind Mower

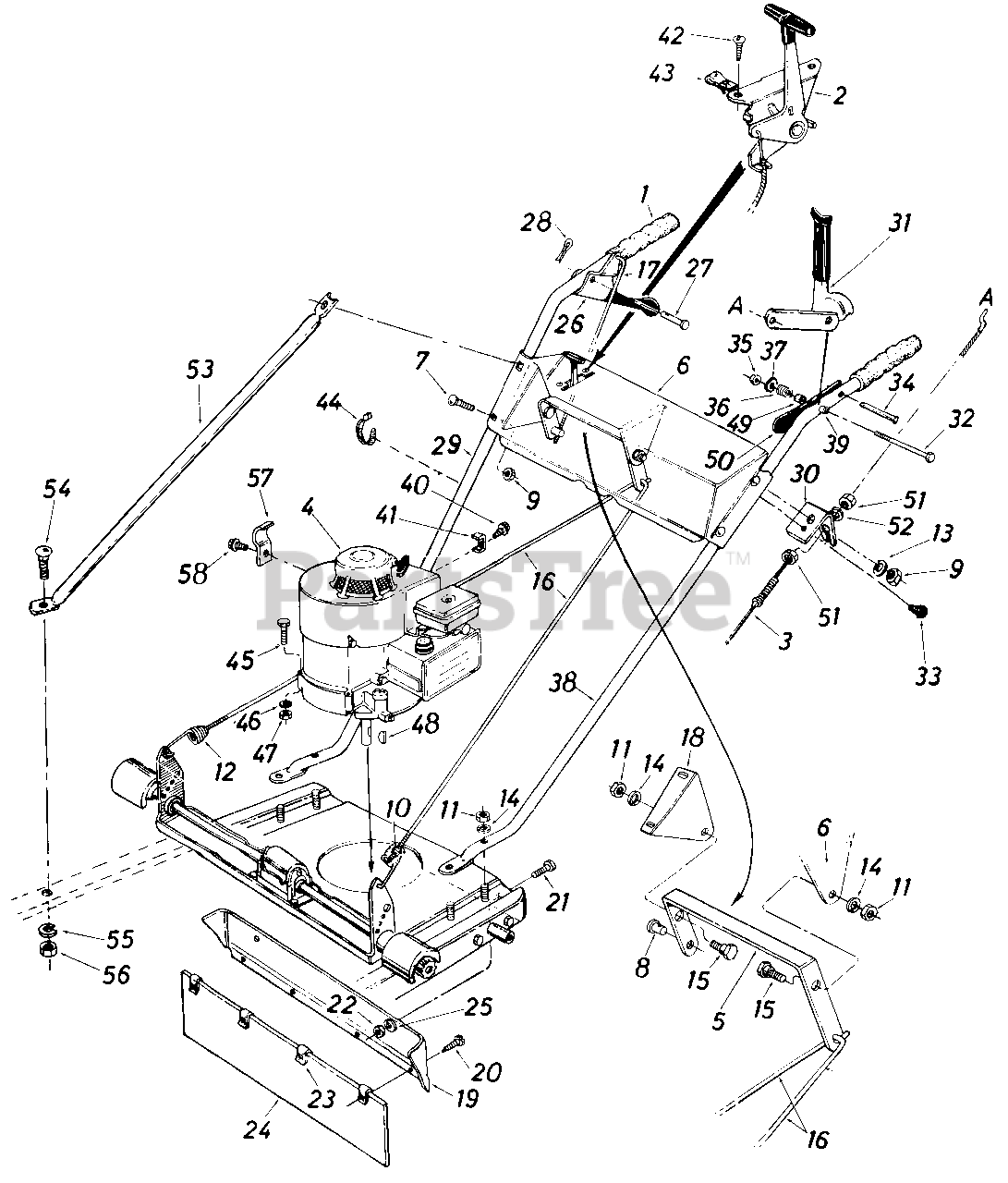

Rotary (Part 1) Parts Diagram

  • Title

1

MTD 720-0204

Grip B I ack

$13.99

$

Usually ships in 3-6 days

0

2

MTD 746-0378

Throttle Control Ass'y. Comp.

$

$

Not available

3

MTD 746-0488

Clutch Cable 56" Long

$

$

Not available

4

Engine

$

$

Not available

5

MTD 12570

Link Bracket

$

$

Currently unavailable

6

MTD 15335

Hand le Panel Ass'y.

$

$

Currently unavailable

7

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

8

MTD 711-0619

Adj. Ferrule 1/4-20 Thd.

$

$

Not available

9

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

12

MTD 732-0305

Extension Spring

$

$

Not available

13

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

MTD 738-0234

Shld. Bolt .500" Dia. x .295

$10.99

$

Usually ships in 3-6 days

0

16

MTD 747-0162

Lockout Rod

$

$

Currently unavailable

17

MTD 747-0163

Rod .214" Dia. x 14.87" Lg.

$

$

Not available

18

MTD 12571

Bracket

$

$

Currently unavailable

19

MTD 12548

Drag Shield Adapter

$

$

Currently unavailable

20

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

21

MTD 710-0567

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

22

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

23

MTD 726-0130

Speed Nut 10Z U-Type
(Superseded to 926-0130)

$

$

Not available

24

MTD 735-0182

Drag Shield 4.65" x 20.0" Lg.

$

$

Currently unavailable

25

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

26

MTD 12921

Clutch Grip Ass'y.

$

$

Not available

27

MTD 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

28

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

29

MTD 749-0556

R.H. Handle

$

$

Currently unavailable

30

MTD 16047

Clutch Cable Brk't.

$

$

Currently unavailable

31

MTD 15482

Blade Clutch Grip Ass'y.

$

$

Currently unavailable

32

MTD 710-0641

Hex Bolt 1/4-20 x 2.25" Lg.

$4.49

$

In Stock, only 2 left!

0

33

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

34

MTD 731-0607

Lock Pin

$

$

Not available

35

MTD 712-0291

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

36

MTD 732-0334

Compression Spring .50" O.D. x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

37

MTD 736-0498

Internal Tooth L-Wash.

$4.49

$

Usually ships in 3-6 days

0

38

MTD 749-0557

L.H. Handle

$

$

Currently unavailable

39

MTD 750-0566

Spacer.255" I.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

40

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

41

MTD 751-0333

Casir;g Clamp

$

$

Not available

42

MTD 710-0224

Hex Wash. Hd. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-0344

Speed Nut 10Z

$

$

Not available

44

MTD 725-0157

Cable Tie Self Clinching

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.*
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

46

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

48

MTD 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

49

MTD 750-0565

Spacer.255" I.D. x .375" O.D.

$7.99

$

Usually ships in 3-6 days

0

50

MTD 732-0441

Lock Spring

$

$

Not available

51

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 749-0523

Strut

$

$

Currently unavailable

54

MTD 710-0260

Carriage Bolt 5/16-18 x .62"-Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

55

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

57

MTD 12894

Casing Clamp

$

$

Not available

58

MTD 710-0456

Hex Wash-Hd. Tap Scr. #10 x .50" Lg.

$

$

Not available

MTD 8574-400-5

Hardware Pack

$

$

Currently unavailable
