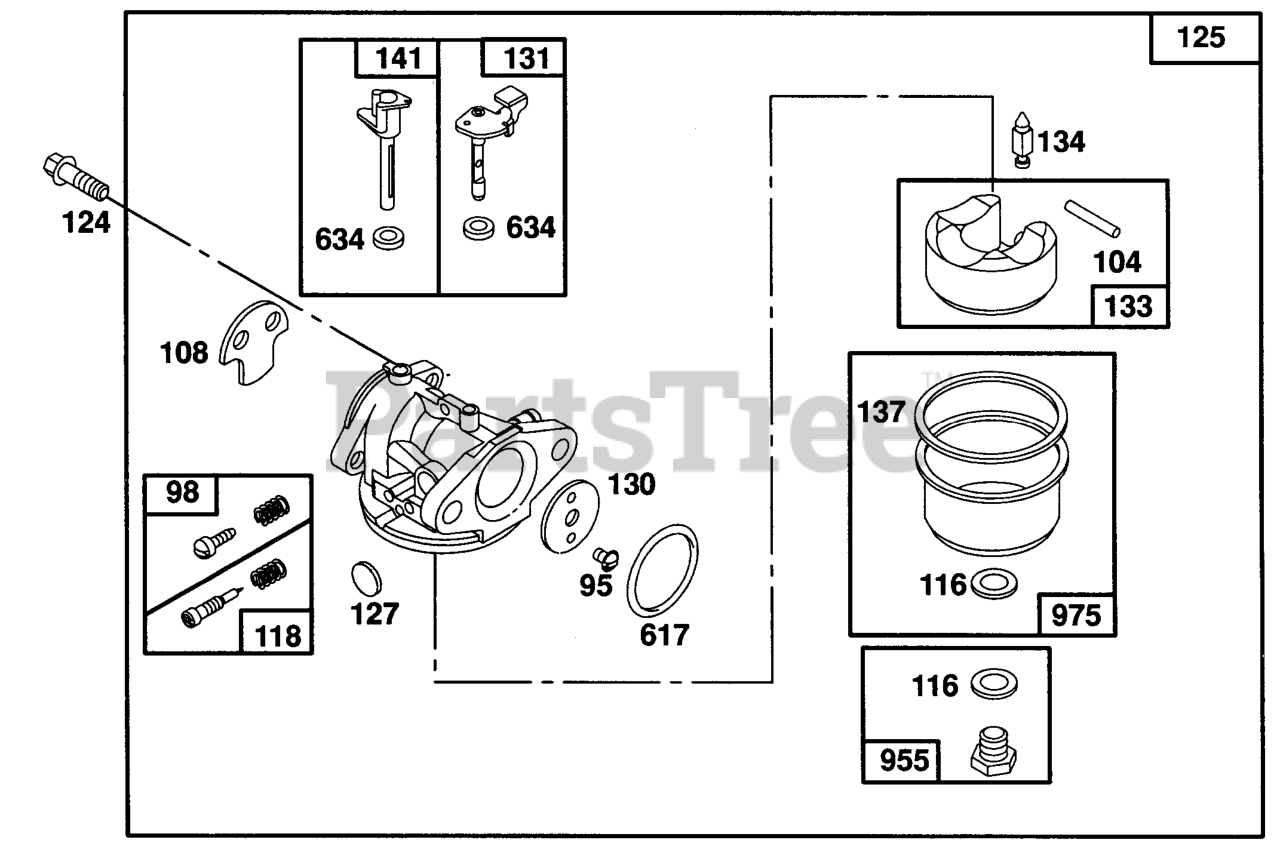

125702-3101-01 - Briggs & Stratton Vertical Engine Carburetor Assembly Parts Diagram

Vertical Engine

Carburetor Assembly Parts Diagram

  • Title

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 398185

Screw-Idle Speed (Lmt 26, 27, 28, 31)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Pin-Float Hinge Series
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$3.99

$

In Stock, Qty 10

0

104

Briggs & Stratton 231371

Pin-Float Hinge Series
(Superseded to 797622)

Note: Included in Carburetor Gasket Set-Part No. 490937

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 223471

Valve, Choke Sold In Kit Only
(Superseded to 691182)

$9.49

$

Usually ships in 2-12 days

0

116

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 490937

$

$

Not available

116

No Nomenclature

Note: Included in Carburetor Gasket Set-Part No. 490937. Included in Gasket Set-Part No. 493263

$

$

Not available

118

Briggs & Stratton 492945

Screw/Spring Kit (For Lms 11,12,m26)
(Superseded to 493765)

Note: Used Before Code Date 90060400

$14.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 492945

Screw/Spring Kit (For Lms 11,12,m26)
(Superseded to 493765)

Note: Used Before Code Date 90060400

$14.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 493765

Kit-Idle Mixture (Used On Carb. I.d. No. M24)

Note: Used After Code Date 90060300

$14.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 493765

Kit-Idle Mixture (Used On Carb. I.d. No. M24)

Note: Used After Code Date 90060300

$14.99

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 94525

Screw, Hex Washer H
(Superseded to 691688)

$4.49

$

In Stock, only 2 left!

0

125

Briggs & Stratton 494217

Carburetor (Choke)

$

$

Not available

127

No Nomenclature

Note: Included in Carburetor Gasket Set-Part No. 490937

$

$

Not available

127

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

130

Briggs & Stratton 223470

Valve-Throttle
(Superseded to 691181)

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

Throttle Shaft Kit

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/seat (Pump Feed)

Note: Included in Carburetor Gasket Set-Part No. 490937

$6.49

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/seat (Pump Feed)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$6.49

$

In Stock, Qty 20+

0

137

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 490937

$

$

Not available

137

No Nomenclature

Note: Included in Carburetor Gasket Set-Part No. 490937. Included in Gasket Set-Part No. 493263

$

$

Not available

141

Briggs & Stratton 493266

Shaft-Choke
(Superseded to 494218)

Note: Used Before Code Date 90060400

$14.99

$

In Stock, only 2 left!

0

141

Briggs & Stratton 494218

Shaft-Choke

Note: Used After Code Date 90060300

$14.99

$

In Stock, only 2 left!

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 490937. Included in Gasket Set-Part No. 493263

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

Note: Included in Carburetor Overhaul Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 490937

$3.49

$

In Stock, Qty 20+

0

634

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref. 121. Included in Carburetor Gasket Set-Part No. 490937

$

$

Not available

634

No Nomenclature

Note: Included in Carburetor Gasket Set-Part No. 490937. Included in Gasket Set-Part No. 493263

$

$

Not available

955

Briggs & Stratton 493763

Jet-Main (See Footnote)

Note: Used After Code Date 90060300

$

$

Not available

955

Briggs & Stratton 493869

Jet-Main (Standard)

$19.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 398191

Bowl-Float
(Superseded to 796611)

Note: Used Before Code Date 90060400

$

$

Not available

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

Note: Used After Code Date 90060300

$

$

Not available
