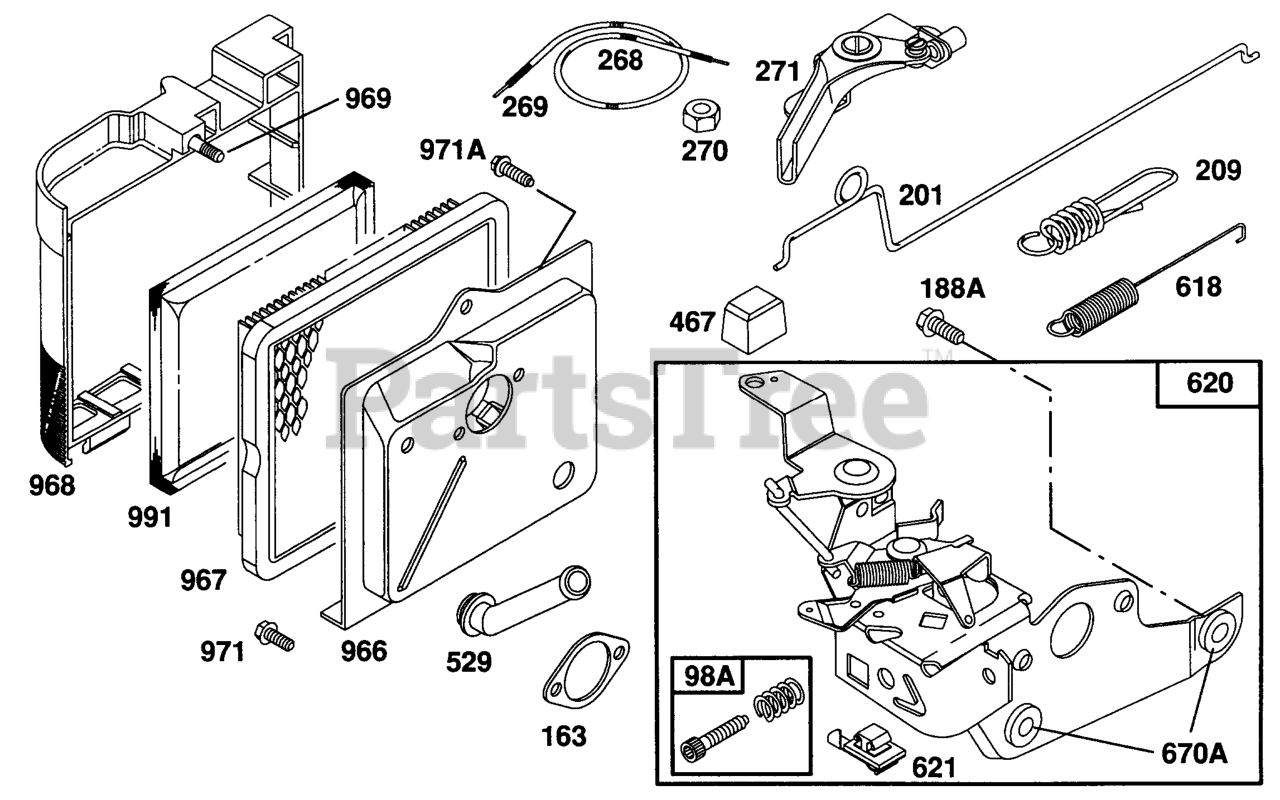

125702-0114-01 - Briggs & Stratton Vertical Engine Control Brkt Assy,AirCleaner Parts Diagram

Vertical Engine

Control Brkt Assy,AirCleaner Parts Diagram

  • Title

98A

Briggs & Stratton 493280

Screw-Speed Adj.

$8.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 272296

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 493263

$4.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 272296

Gasket-Air Cleaner

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$4.99

$

Usually ships in 2-12 days

0

188A

Briggs & Stratton 94644

Screw, Machine Hex
(Superseded to 690877)

$3.99

$

In Stock, Qty 5

0

201

Briggs & Stratton 262579

Link-Mechanical Governor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 262655

Spring-Governor
(Superseded to 690568)

$8.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If Longer Casing is Needed, Specify Length in Inches; if Shorter Casing is Needed, Order No. 66986 and Cut to Required Length

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If Longer Wire is Needed, Specify Length in Inches; if Shorter Wire is Needed, Order No. 26099 and Cut to Required Length

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 280857

Knob-Slide Control

$3.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 280943

Grommet-Breather

$8.49

$

In Stock, only 1 left!

0

618

Briggs & Stratton 260870

Choke Return Spring

Note: Used Before Code Date 90060400

$2.99

$

In Stock, Qty 8

0

618

Briggs & Stratton 262749

Choke Return Spring
(Superseded to 690354)

Note: Used After Code Date 90060300

$7.49

$

In Stock, only 1 left!

0

620

Briggs & Stratton 493895

Bracket, Control As (Manual Friction)
(Superseded to 495521)

$40.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

670A

Briggs & Stratton 493823

Spacer (Includes 2) (Sold In Kit Only)

$6.49

$

In Stock, only 1 left!

0

966

Briggs & Stratton 492363

Base-Air Cleaner (Metal)

$

$

Not available

967

Briggs & Stratton 491588

Filter-Pre Cleaner
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281069

Cover-Air Cleaner
(Superseded to 692298)

$27.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 94120

Screw-Slotted Hex.
(Superseded to 690670)

$5.99

$

In Stock, only 4 left!

0

971A

Briggs & Stratton 94121

Screw, Machine Hex
(Superseded to 692523)

$7.49

$

In Stock, only 1 left!

0

971

Briggs & Stratton 94269

Screw-Hex. Head
(Superseded to 692779)

$3.99

$

Usually ships in 2-12 days

0

991

Briggs & Stratton 493537

Pre Filter Assy (Foam)
(Superseded to 493537S)

$6.49

$

In Stock, Qty 12

0
