12564 - Troy-Bilt Dozer/Snow Blade Dozer/Snow Blade Parts Diagram

Dozer/Snow Blade

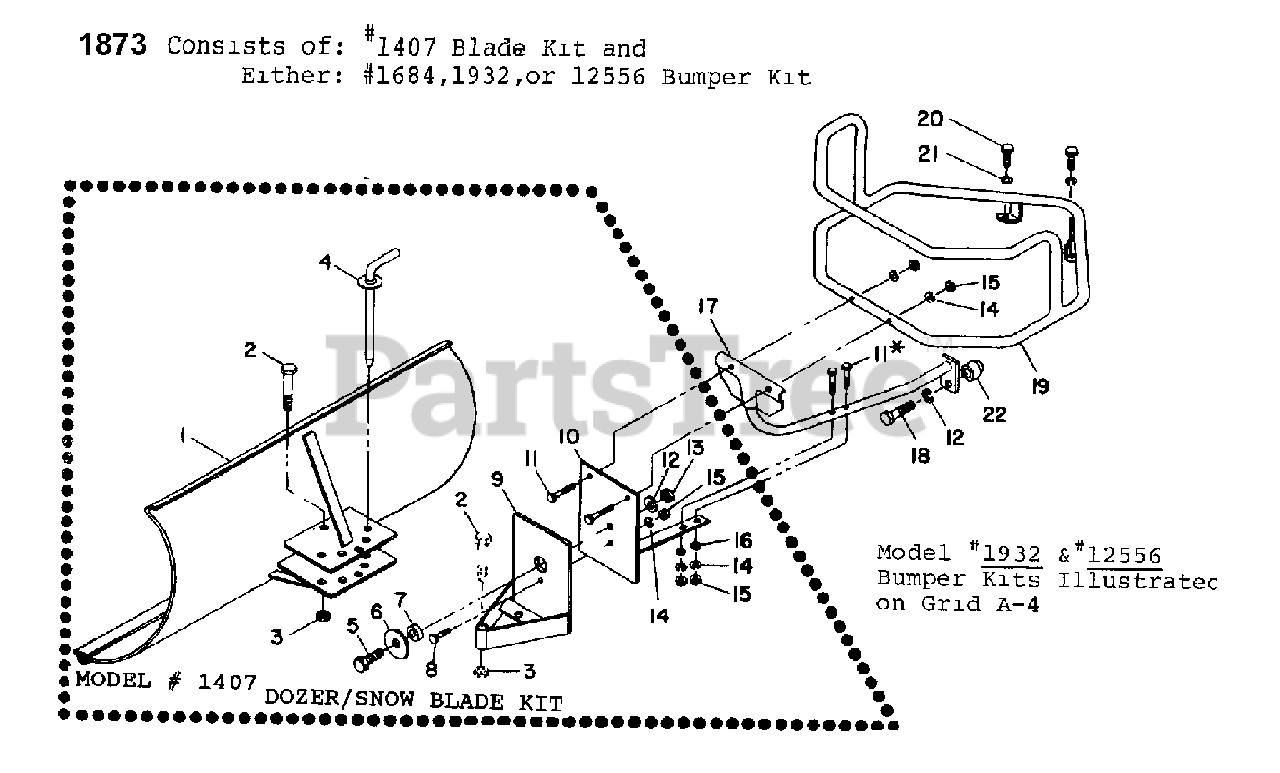

Dozer/Snow Blade Parts Diagram

  • Title

Troy-Bilt 1873

DOZER/SNOW BLADE & BUMPER ATTACHMENT COMPLETE MODEL # 1873

Note: No. 1873 includes Index N0's. 1 through 33, listed below)

$

$

Currently unavailable

1

MTD 1160

BLADE-dozer/snow blade
(Superseded to GW-1160)

Note: Replaces 1157

$

$

Not available

2

Troy-Bilt 9717

BOLT-hex. head, 1/2"-13 x 3"

$

$

Currently unavailable

3

Troy-Bilt 9804

LOCKNUT-hex., 1/2"-13

$

$

Currently unavailable

4

Troy-Bilt 1158

PIN-index, blade angle adjustment

$

$

Currently unavailable

5

Troy-Bilt 9767

BOLT-hex. head, 1/2"-13 x 1 1/2"

$

$

Currently unavailable

6

MTD 9905

WASHER-plain, 1/2"

$

$

Not available

7

MTD 1416

BUSHING

$

$

Not available

8

Troy-Bilt 9705

SCREW-hex. head, 5/16"-18 x 1 1/4"

$

$

Currently unavailable

9

Troy-Bilt 1162

BRACKET-swivel ("A" frame)

Note: Replaces 1414

$

$

Currently unavailable

10

Troy-Bilt 1164

BRACKET-dozer/bumper mounting

Note: Replaces 1415

$

$

Currently unavailable

11

Troy-Bilt 9759

SCREW-hex. head, 5/16"-18 x 1 3/4"

$

$

Currently unavailable

12

Troy-Bilt 9914

LOCKWASHER-1/2"

$

$

Currently unavailable

13

Troy-Bilt 9803

NUT-hex. 1/2"-13

$

$

Currently unavailable

14

Troy-Bilt 9912

LOCKWASHER-5/16"

$

$

Currently unavailable

15

Troy-Bilt 9801

NUT-hex., 5/16" x 18

$

$

Currently unavailable

16

Troy-Bilt 9902

WASHER-plain, 5/16" S.A.E.

Note: Replaces 9901

$

$

Currently unavailable

17

Troy-Bilt 2659

BRACE-bumper bottom
(Superseded to 1910730001)

Note: (requires spacer, Part #1561-see Index 22, below; Replaces 1418

$83.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 9716

BOLT-hex. head, 1/2"-13 x 2"

$

$

Currently unavailable

19

MTD 2658

BUMPER-wraparound
(Superseded to 690-105-0016)

Note: Replaces 1417, 1562, 1558, 1683

$

$

Not available

20

Troy-Bilt 9710

BOLT-hex. head, 3/8"-16 x 1"

$

$

Currently unavailable

21

Troy-Bilt 9913

LOCKWASHER-3/8"

$

$

Currently unavailable

22

MTD 1561

SPACER-for bottom brace

$

$

Not available

1407

Blade Kit

$

$

Not available

1684

Bumper Kit

$

$

Not available

1932

Bumper Kit

$

$

Not available

12556

Bumper Kit

$

$

Not available
