12562 - Troy-Bilt Bumper Bumper Attachment Parts Diagram

Bumper

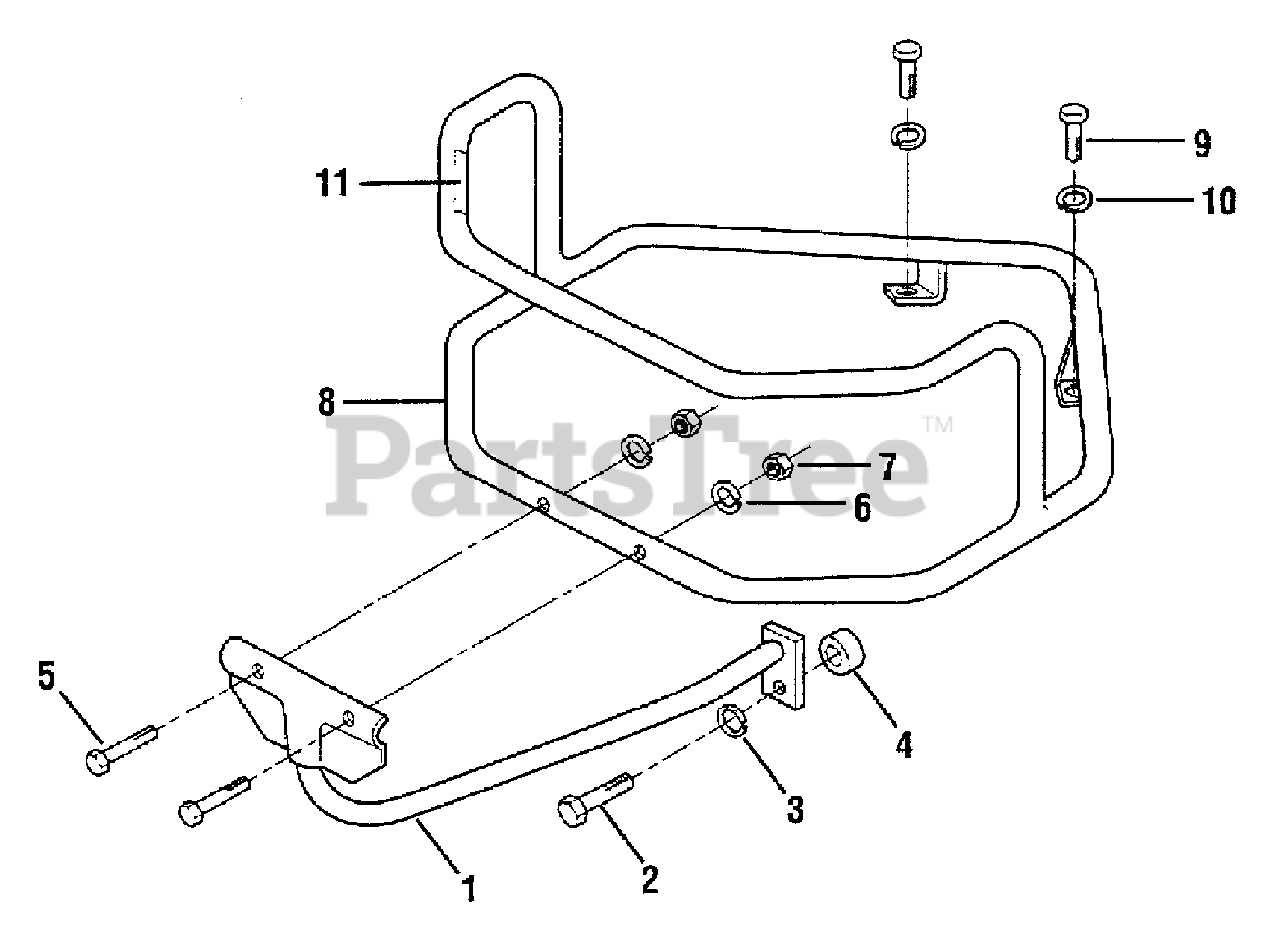

Bumper Attachment Parts Diagram

  • Title

Troy-Bilt 12562

Bumper Attachment

Note: Includes Ref. Nos. 1 through 11

$

$

Currently unavailable

1

Troy-Bilt 2659

Brace - bumper bottom
(Superseded to 1910730001)

$83.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1909765

Bolt - hex hd., 1/2-13 x 1-1/2"
(Superseded to 710-3181)

$6.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 9914

Lockwasher - spring lock, 1/2"

$

$

Currently unavailable

4

Troy-Bilt 1909748

Spacer, 1/2"

$3.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1100799

Bolt - hex hd., 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 9912

Lockwasher - spring lock, 5/16

$

$

Currently unavailable

7

Troy-Bilt 9801

Nut - hex, 5/16"-18

$

$

Currently unavailable

8

Troy-Bilt 1903668

Bumper wraparound

$

$

Currently unavailable

9

Troy-Bilt 1100046

Bolt - hex hd., 3/8-16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 9913

Lockwasher - spring lock, 3/8" 2

$

$

Currently unavailable

11

Troy-Bilt 1448

Decal -
(Superseded to GW-1448)

Note: for bumper

$6.49

$

Usually ships in 3-6 days

0
