12560C - MTD Walk-Behind Mower (1986) Hi-Wheel Parts Diagram

Walk-Behind Mower

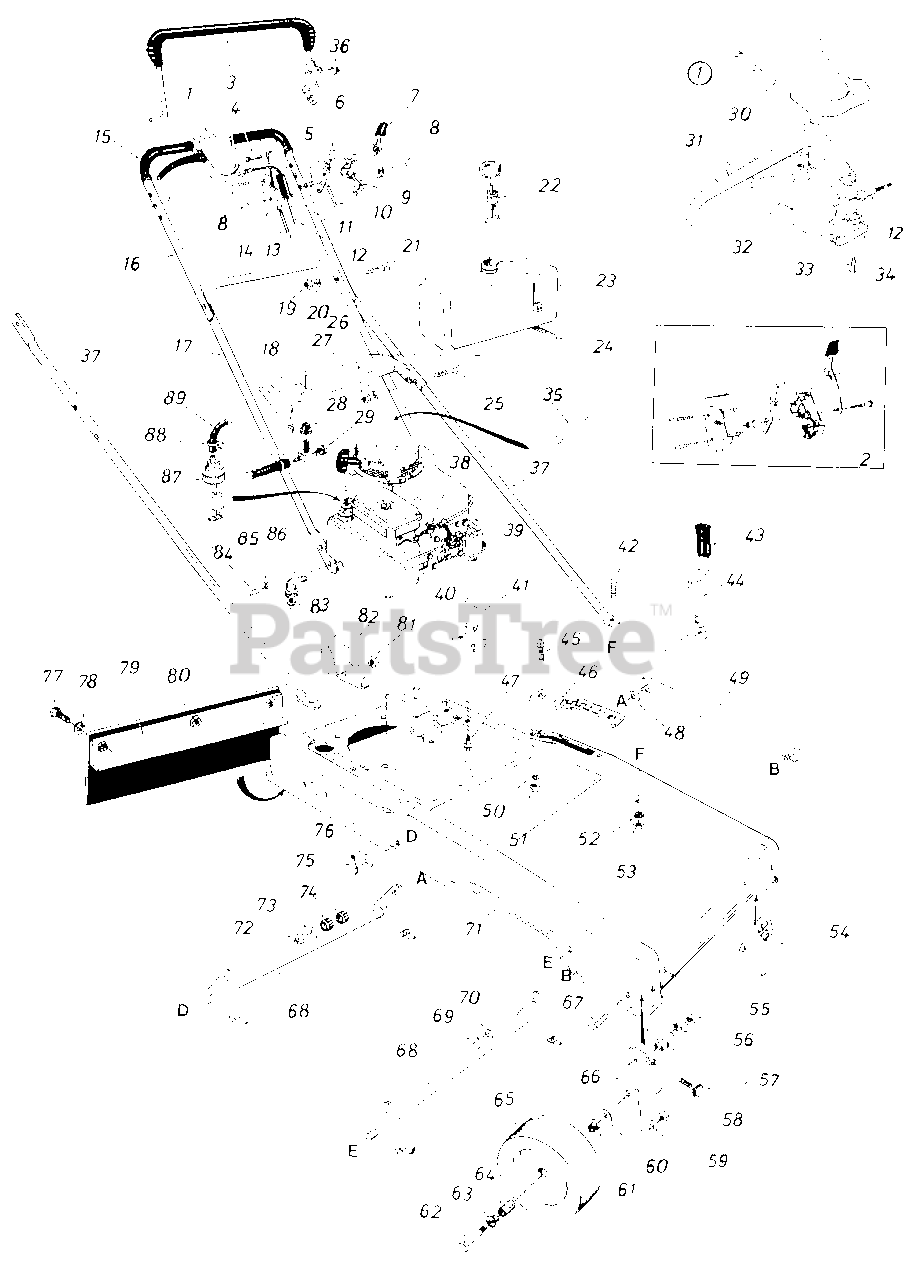

Hi-Wheel Parts Diagram

  • Title

1

MTD 753-0362

Clutch Control Housing Comp.

$

$

Not available

2

MTD 753-0431

Control Housing Comp.

$

$

Not available

3

MTD 731-0609

Control Handle Ass'y.

$

$

Not available

4

MTD 731-0607

Lock Pin

$

$

Not available

5

MTD 731-0524

Control Disc Pin

$

$

Not available

6

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

7

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

MTD 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

9

MTD 731-0817

Control Panel Half

$

$

Not available

10

MTD 746-0631

Throttle Control Wire 43" Lg. Yellow
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

11

MTD 777-5772

Control Label Throttle

$

$

Currently unavailable

12

MTD 746-0400

Drive Clutch Cable 46" Lg.

$

$

Not available

13

MTD 746-0463

Self-Propelled Cable 50" Lg.

$

$

Not available

14

MTD 731-0816

Clutch Panel Half

$

$

Not available

15

MTD 718-0145

Grip 22" Lg.

$

$

Currently unavailable

16

MTD 749-0437

Upper Handle

$

$

Currently unavailable

17

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

18

MTD 14426

Gas Tank Mounting Brk't.

$

$

Not available

19

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50" Lg.

$3.99

$

In Stock, Qty 11

0

22

MTD 723-0155

Gas Gauge 13/4-6 x 5.50" Lg.

$

$

Not available

23

MTD 751-0225

Gas Tank

$

$

Not available

24

MTD 726-0209

Cable Tie 30.6" Lg.
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

25

MTD 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

26

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

MTD 735-0149

Bushing Gas Tank
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

29

MTD 751-0171

Fuel Shut-Off Valve w/Screen
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

30

MTD 731-0617

Control Cover Half Upper
(Superseded to 731-0617A)

$

$

Not available

31

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

32

MTD 731-0618

Control Cover Half Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

33

MTD 710-0841

Flat "C" Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

MTD 731-0619

Cable Mounting Cap

$

$

Not available

35

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

36

MTD 726-0111

Push Cap

$

$

Not available

37

MTD 749-0697

Strut .75" O.D. x 43.44" Lg.

$

$

Currently unavailable

38

MTD 710-0436

Hex Sems Scr. #10-32 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

39

Engine 5 H.P.

$

$

Not available

40

MTD 751-0442

Casing Clamp

$

$

Not available

41

MTD 12577

Handle Mount Brk't. L.H.

$

$

Currently unavailable

42

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

43

MTD 720-0142

Grip Black

$3.99

$

Usually ships in 3-6 days

0

44

MTD 15342

Lift Handle

$

$

Not available

45

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

46

MTD 16507

Lift Handle Support Brk't.

$

$

Not available

47

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8 x .50

$4.99

$

Usually ships in 3-6 days

0

48

MTD 736-0235

Fl-Wash. .406" I.D. x 1.25" O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

49

MTD 15331

Connecting Link Ass'y.

$

$

Not available

50

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

54

MTD 10293

Wheel Brk't. Ass'y. L.H.

$

$

Currently unavailable

55

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

58

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

59

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

60

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

61

MTD 741-0484

Flange Ball Brg. .501" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

62

MTD 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

63

MTD 741-0267

Flanged Ball Brg. 3/8" 1.

$

$

Not available

64

MTD 750-0434

Spacer .375" I.D. x .505" O.D. x 1" Lg.

$6.99

$

Usually ships in 3-6 days

0

65

MTD 734-0644

Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

66

MTD 10294

Wheel Brk't. Ass'y. R.H.

$

$

Currently unavailable

67

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

68

MTD 16497

Lift Brk't. Shaft Ass'y.

$

$

Not available

69

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

70

MTD 736-0300

Fl-Wash. .385" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

71

MTD 16505

Hi-Wheel Frame

$

$

Currently unavailable

72

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

73

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 735-0126

Rubber Wash. .33" I.D. x .87" O.D.
(Superseded to 735-0126A)

$

$

Not available

75

MTD 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

In Stock, only 2 left!

0

76

MTD 736-0272

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.99

$

In Stock, Qty 20+

0

77

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

79

MTD 16563

Retaining Strip Ass'y. 2" x 15" Lg.

$

$

Not available

80

MTD 731-0811

Rear Flap 7.5 x 20" Lg.

$

$

Not available

81

MTD 712-0342

Hex Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

82

MTD 12578

Handle Mount Brk't.

$

$

Not available

83

Part of Engine

$

$

Not available

84

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

85

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

86

MTD 737-0125

90 Deg. Elbow Male to Female 3/8

$

$

Not available

87

MTD 751-0297

Fuel Control Valve

$

$

Not available

88

MTD 726-0207

Hose Clamp .406" Dia.

$

$

Not available

89

MTD 751-0173

Fuel Line 13" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0
