12533 GC (31AH9776897) - Columbia 33" Snow Thrower (2014) Drive Assembly Parts Diagram

33" Snow Thrower

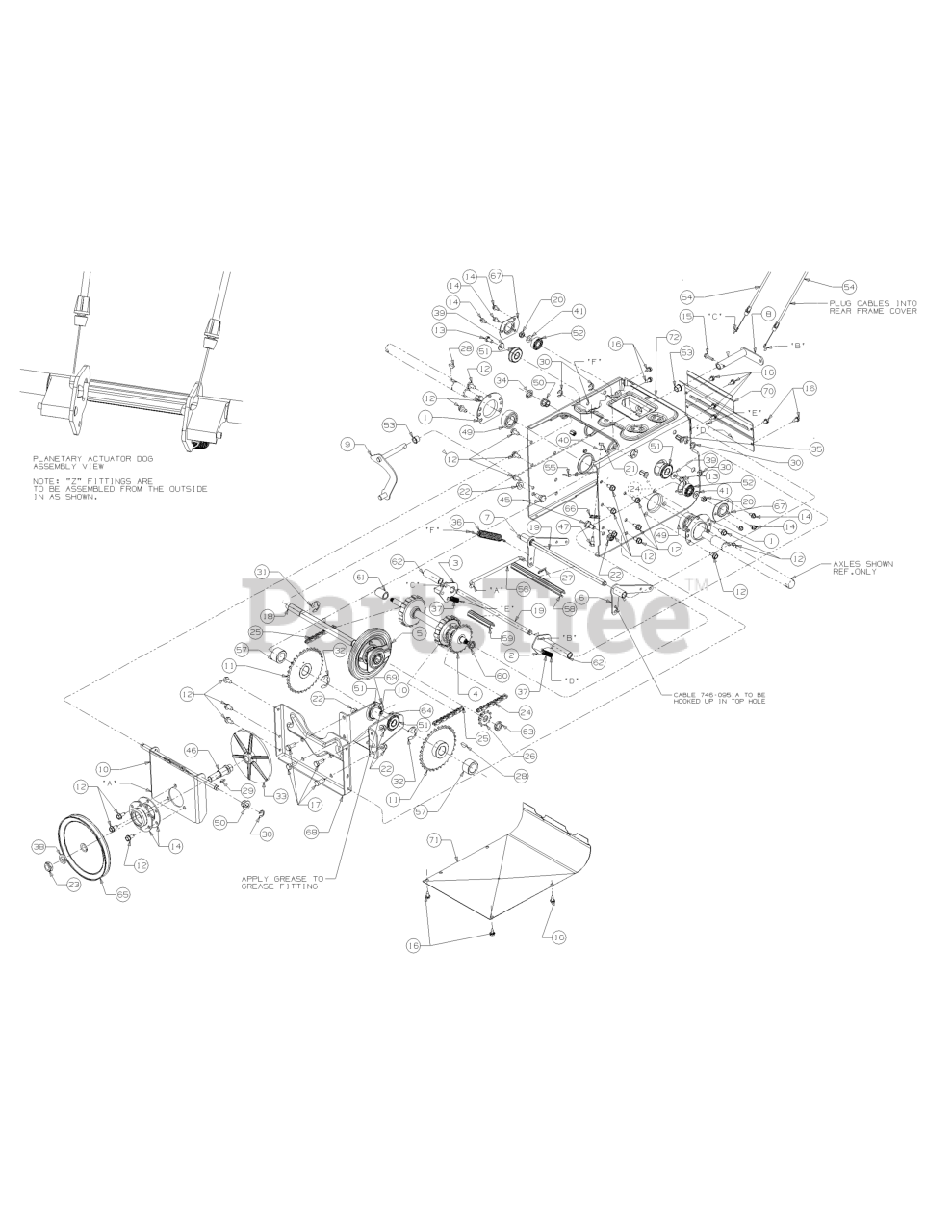

Drive Assembly Parts Diagram

  • Title

1

MTD 05244B

Bearing Housing

$23.99

$

In Stock, only 2 left!

0

2

MTD 918-0279A

Dogg Assy-Lft D

$42.99

$

Usually ships in 3-6 days

0

3

MTD 918-0280A

Dogg Assy-Rgt D

$42.99

$

Usually ships in 3-6 days

0

4

MTD 918-0282E

Shaft Asm, Drive

$559.99

$

Usually ships in 3-6 days

0

5

MTD 918-04178

Wheel Asm-Frict
(Superseded to 918-07239)

$165.99

$

In Stock, Qty 7

0

6

MTD 684-0118B-0637

Bracket-Au

$

$

Not available

7

MTD 684-0119B-0637

Bracket-Au

$

$

Not available

8

MTD 684-0161-0637

Arm Assy-Sh

$70.99

$

Usually ships in 3-6 days

0

9

MTD 984-04103

Rod-Shift Asm

$74.99

$

Usually ships in 3-6 days

0

10

MTD 684-04212-0637

Bracket Asm

$52.99

$

Usually ships in 3-6 days

0

11

MTD 684-04235

Sprocket Asm:32T

$124.99

$

Usually ships in 3-6 days

0

12

MTD 710-04484

Screw

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-0538

Screw-Hex 5/16-18

$4.49

$

In Stock, Qty 9

0

14

MTD 741-0163A

Bearing Housing Assy

$48.99

$

Usually ships in 3-6 days

0

14

MTD 710-0599

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0788

Screw-Tap 1/4-20

$7.49

$

In Stock, only 2 left!

0

16

MTD 710-1652

Screw Hex.Wash.Hd

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-3001

Screw-Hex Cap 3/8

$7.49

$

In Stock, Qty 9

0

18

MTD 911-04279

Shaft-Hex Drive

$

$

Not available

19

MTD 711-04605

Shaft:Actr

$

$

Not available

20

MTD 912-0116

Nut-Hex Ins
(Superseded to 712-0116)

$

$

Not available

21

MTD 912-0138

Nut-Hex 1/4-28
(Superseded to 712-0138)

$

$

Not available

22

MTD 712-04065

Nut-Flange Lk.Nylo

$3.99

$

In Stock, Qty 20+

0

23

MTD 912-0413

Nut-Hex Jam Lock
(Superseded to 712-0413)

$

$

Not available

24

MTD 713-0284

#41 Chain 1/2 Pitch

$24.99

$

Usually ships in 3-6 days

0

25

MTD 713-0286

#420 Chain 1/2 Pitch

$66.99

$

Usually ships in 3-6 days

0

26

MTD 913-04015

Sprocket

$12.99

$

Usually ships in 3-6 days

0

27

MTD 914-0104

Pin:Cot:.072 Dia
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

28

MTD 914-0135

Key-Woodruff #91
(Superseded to 714-0135)

$

$

Not available

29

MTD 914-0388

Key-3/16 X 5/8

$7.99

$

In Stock, Qty 20+

0

30

MTD 713-0104

#41 Chain 1/2 Pitch

$

$

Not available

31

MTD 716-0136

Ring-Retaining-E T

$8.99

$

In Stock, only 2 left!

0

32

MTD 716-04048

Ring-"E" 1.50 Od

$

$

Not available

33

MTD 917-0302

Plate-Alum Drive

$82.99

$

In Stock, only 1 left!

0

34

MTD 726-0221

Cap-Push

$6.49

$

In Stock, only 2 left!

0

35

MTD 728-04062A

Rivet-Nut
(Superseded to 728-04062B)

$4.99

$

Usually ships in 3-6 days

0

36

MTD 932-0121

Spring-Idler Ext

$14.99

$

Usually ships in 3-6 days

0

37

MTD 932-0209

Spring-Extension

$7.99

$

In Stock, only 2 left!

0

38

MTD 936-0158

Washer-Lock 5/8

$4.49

$

In Stock, Qty 11

0

39

MTD 736-0242

Washer-Bell .337 X

$4.49

$

In Stock, Qty 20+

0

40

MTD 936-0329

Washer-Lock

$4.49

$

In Stock, Qty 11

0

41

MTD 936-0864

Washer-Thrust

$4.49

$

Usually ships in 3-6 days

0

42

N/A

Grease

$

$

Not available

43

N/A

Grease

$

$

Not available

44

MTD 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

45

MTD 738-0143

Screw-Shld .498 Di

$4.49

$

In Stock, Qty 20+

0

46

MTD 738-0279

Spindle-Drive Plt

$57.99

$

Usually ships in 3-6 days

0

47

MTD 738-0924A

Screw-1/4-28 X .32

$6.99

$

In Stock, Qty 5

0

49

MTD 941-04025

Bearing-Self Al

$36.99

$

Usually ships in 3-6 days

0

50

MTD 741-04108

Bearing-Hex Flange

$5.99

$

In Stock, Qty 12

0

51

MTD 941-0563

Ball Bearing

$36.99

$

In Stock, Qty 11

0

52

MTD 741-0747

Bearing-Ball

$18.99

$

In Stock, only 2 left!

0

53

MTD 741-0748

Bushing-Flange

$11.99

$

Usually ships in 3-6 days

0

54

MTD 746-0949A

Cable-Wheel Steering

$52.99

$

In Stock, only 1 left!

0

55

MTD 946-0951A

Cable-Auger Idl

$45.99

$

In Stock, only 4 left!

0

56

MTD 747-0973

Rod-Drive Clutch

$48.99

$

Usually ships in 3-6 days

0

57

MTD 750-04703

Spacer

$12.99

$

Usually ships in 3-6 days

0

58

MTD 750-04717

Spacer

$8.49

$

Usually ships in 3-6 days

0

59

MTD 750-04718

Spacer

$5.49

$

Usually ships in 3-6 days

0

60

MTD 750-05342

Spacer-Strbl Drv Sha

$3.49

$

Usually ships in 3-6 days

0

61

MTD 750-05343

Spacer-Strbl Drv Sha

$4.49

$

Usually ships in 3-6 days

0

62

MTD 750-0903B

Spacer-Split Shld

$10.99

$

Usually ships in 3-6 days

0

63

MTD 950-0997

Spacer

$6.99

$

In Stock, only 4 left!

0

64

MTD 750-1302B

Spacer:.6725Id X

$47.99

$

In Stock, only 1 left!

0

65

MTD 756-0344

Pulley

$81.99

$

Usually ships in 3-6 days

0

66

MTD 756-0625

Roller-Cable Guide

$9.49

$

In Stock, Qty 14

0

67

MTD 784-0404

Bracket-Retaining Bearing

$8.49

$

In Stock, only 2 left!

0

68

MTD 784-0406A-0637

Bracket-Sup

$37.99

$

Usually ships in 3-6 days

0

69

MTD 784-0407-0637

Bracket-Sup

$37.99

$

Usually ships in 3-6 days

0

70

MTD 790-00257-0606

Cover:Upper Frame:

$12.99

$

Usually ships in 3-6 days

0

71

MTD 790-00259-0606

Cover:Frame:Lower

$33.99

$

Usually ships in 3-6 days

0

72

MTD 790-00349A-0606

Frame-Trans 900

$144.99

$

Usually ships in 3-6 days

0
