12533 GC (31AH9576897) - Columbia 33" Snow Thrower (2011) Auger & Housing Parts Diagram

33" Snow Thrower

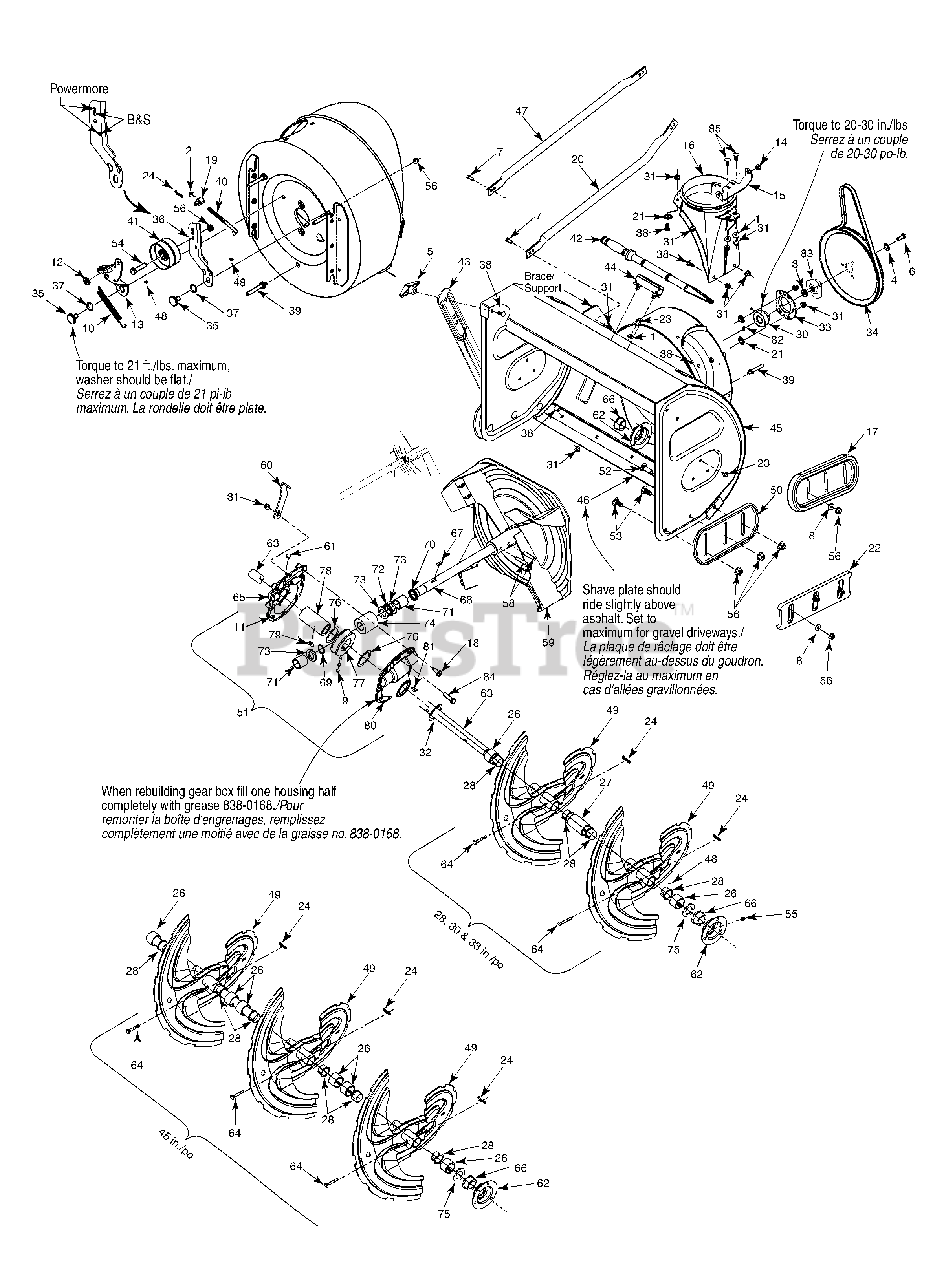

Auger & Housing Parts Diagram

  • Title

1

White Outdoor 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

2

White Outdoor 712-3007

Hex Jam Nut 5/16-18 Gr. 5

$6.99

$

In Stock, only 2 left!

0

3

White Outdoor 736-0188

Flat Washer .760 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0505

Flat Washer .34 x 1.5 x .150

$6.49

$

In Stock, Qty 11

0

5

White Outdoor 920-0284

Handle Knob Assembly
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-1245B

Hex Screw 5/16-24 x .875 Gr. 8 Lock

$8.49

$

In Stock, only 4 left!

0

7

White Outdoor 710-3008

Hex Hd Cap Scr. 5/16-18 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 736-0262

Flat Washer .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

9

N/A

Shell Alvania Grease (3 oz.)

Note: Purchase Locally

$

$

Not available

10

White Outdoor 732-0858

Extension Spring .470 Dia. x 4.75

$24.99

$

In Stock, only 4 left!

0

11

N/A

Ultra Grey Loctite #5699

Note: Purchase Locally

$

$

Not available

12

White Outdoor 936-3008

Flat Washer .344 ID x .75 OD x .120

$6.99

$

Usually ships in 3-6 days

0

13

White Outdoor 918-0281A

Brake Bracket Ass’y (900 Series)

$64.99

$

In Stock, only 2 left!

0

14

White Outdoor 941-0475

Plastic Bushing .380 ID

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 790-00329

Chute Brkt.

Variations

White Outdoor 790-00329-0637

BRACKET-CHUTE CRANK - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

16

White Outdoor 731-1696B

Chute Adapter

$91.99

$

In Stock, Qty 11

0

17

White Outdoor 731-06007

Reversible Slide Shoe (Plastic)

$45.99

$

Usually ships in 3-6 days

0

18

White Outdoor 710-1260A

Screw, 5/16-18 x .5

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 911-0677

Adjustment Ferrule

$17.99

$

In Stock, only 4 left!

0

20

White Outdoor 749-04489-0637

Support Tubing RH (w/plastic panel)

$32.99

$

Usually ships in 3-6 days

0

20

White Outdoor 749-04485-0637

Support Tubing LH (w/plastic panel)

$34.99

$

Usually ships in 3-6 days

0

21

White Outdoor 926-04012

Push-on Nut .25 diam
(Superseded to 726-04012)

$

$

Not available

22

White Outdoor 731-07032

Deluxe Reversible Slide Shoe

$45.99

$

Usually ships in 3-6 days

0

23

White Outdoor 710-04484

Hex TT Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

26

White Outdoor 731-05163

Spacer 1.5 x 1.0 ID x 1.0" Lg.

$7.49

$

In Stock, Qty 20+

0

27

White Outdoor 731-05162

Spacer 1.5 x 1.0 ID x 2.5" Lg.

$7.49

$

Usually ships in 3-6 days

0

28

White Outdoor 741-0494

Flange Bushing 1.05 ID x 1.16 OD

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 941-04024

Self-Aligning Bearing .875 ID

$64.99

$

Usually ships in 3-6 days

0

31

White Outdoor 712-04063

Hex Flg. L-Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-3046A

Flat Washer 1.010 x 1.88 x .060

$8.99

$

Usually ships in 3-6 days

0

33

White Outdoor 05244B

Bearing Housing

$23.99

$

Usually ships in 3-6 days

0

34

White Outdoor 756-04244A

Pulley .5 ID x 10 OD

$60.99

$

Usually ships in 3-6 days

0

35

White Outdoor 938-0281

Shoulder Screw .625 Dia x .170
(Superseded to 738-0281)

$

$

Not available

36

White Outdoor 784-0385D

Auger Idler Bracket

$29.99

$

Usually ships in 3-6 days

0

37

White Outdoor 736-0174

Wave Washer .625 ID x .885 OD x .015

$6.99

$

In Stock, Qty 8

0

38

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 710-04606A

Screw 5/16-18 x .43 (w/stud)

$7.49

$

In Stock, only 1 left!

0

40

White Outdoor 747-0980A

Auger Idler Rod

$47.99

$

Usually ships in 3-6 days

0

41

White Outdoor 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

42

White Outdoor 931-2643

Cleanout Tool

$19.99

$

In Stock, Qty 11

0

43

White Outdoor 790-00181

Drift Cutter

Variations

White Outdoor 790-00181-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0691

BLADE-GUIDE (DRIFT - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0606

BLADE-GUIDE (DRIFT - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0650

BLADE-GUIDE (DRIFT - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0689

BLADE-GUIDE (DRIFT - POLO GREEN (0689)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0709

BLADE-GUIDE (DRIFT - MASTERCRAFT GREEN (0709)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-0721

BLADE-GUIDE (DRIFT - SEARS RED (0721)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-4021

BLADE-GUIDE (DRIFT - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00181-4044

BLADE-GUIDE (DRIFT - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

44

White Outdoor 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 18

0

45

White Outdoor 684-04332-0606

Auger Housing 28" Orange

Note: Columbia

$357.99

$

Usually ships in 3-6 days

0

45

White Outdoor 684-04333-0606

Auger Housing 30" Orange

Note: Columbia

$378.99

$

Usually ships in 3-6 days

0

45

White Outdoor 684-04222-0606

Auger Housing 33" Orange

Note: Columbia

$438.99

$

Usually ships in 3-6 days

0

46

White Outdoor 784-5716B-0606

Shave Plate 28" Orange

Note: Columbia

$49.99

$

In Stock, only 1 left!

0

46

White Outdoor 784-5715B-0606

Shave Plate 30" Orange
(Superseded to 784-5715B-0637)

Note: Columbia

$55.99

$

Usually ships in 3-6 days

0

46

White Outdoor 784-5714B-0606

Shave Plate 33" Orange
(Superseded to 784-5714B-0637)

Note: Columbia

$55.99

$

In Stock, only 3 left!

0

47

White Outdoor 749-04384-0637

Support Tubing (w/steel panel)

$

$

Not available

48

N/A

Arctic Grease

Note: Purchase Locally

$

$

Not available

49

White Outdoor 684-04151-0637

LH Auger - Black

$261.99

$

Usually ships in 3-6 days

0

49

White Outdoor 684-04152-0637

RH Auger - Black

$261.99

$

Usually ships in 3-6 days

0

50

White Outdoor 784-5697

Reversible Slide Shoe

Variations

White Outdoor 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$44.99

$

In Stock, Qty 7

0

White Outdoor 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$45.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$44.99

$

In Stock, only 2 left!

0

$45.99

$

Usually ships in 3-6 days

0

51

White Outdoor 918-04515

Worm Gear Box Ass’y (w/o grease fitting)

$734.99

$

In Stock, only 1 left!

0

51

White Outdoor 918-04514

Worm Gear Box Ass’y (w/ grease fitting)

$543.99

$

Usually ships in 3-6 days

0

52

White Outdoor 710-3168

Carriage Bolt 3/8-16 x 1.00" (w/steel shoe)

$3.99

$

In Stock, Qty 20+

0

52

White Outdoor 710-3034

Carriage Bolt 3/8-16 x 1.25" (w/plastic shoe )

$3.99

$

In Stock, Qty 5

0

53

White Outdoor 710-0389

Carriage Bolt 3/8-16 x .75" (w/steel shoe)

$4.49

$

Usually ships in 3-6 days

0

53

White Outdoor 710-3168

Carriage Bolt 3/8-16 x 1.00" (w/plastic shoe)

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 710-0347

Hex Hd. Cap Scr 3/8-16 x 1.75 Gr. 5

$5.49

$

In Stock, Qty 20+

0

55

White Outdoor 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

56

White Outdoor 712-04065

Hex Flange L-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 915-0118

Spring Spirol Pin Heavy - 5/16 dia x 1.7
(Superseded to 715-0118)

$

$

Not available

59

White Outdoor 684-0090B-0637

Blower Fan Ass’y Complete

$

$

Not available

60

White Outdoor 790-00264A-0637

Gear Housing Support Bracket

$19.99

$

Usually ships in 3-6 days

0

61

White Outdoor 721-0325

Barbed Plug

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 05845C

Bearing Housing

Variations

White Outdoor 05845C-0637

Housing Bearing - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 05845C-0665

HOUSING BEARING - YARDMAN GREEN (0665)

$

$

Not available

$19.99

$

Usually ships in 3-6 days

0

62

White Outdoor 784-0315A

Bearing Housing (w/grease fitting)

Variations

White Outdoor 784-0315A-0637

Housing Bearing - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

63

White Outdoor 738-04156

Auger Shaft 28"

$149.99

$

Usually ships in 3-6 days

0

63

White Outdoor 938-04157

Auger Shaft 30"

$154.99

$

Usually ships in 3-6 days

0

63

White Outdoor 938-04158

Auger Shaft 33"

$186.99

$

Usually ships in 3-6 days

0

64

White Outdoor 738-04155

Shear Pin 5/16-18 x 1.75

$1.99

$

In Stock, Qty 20+

0

65

White Outdoor 918-0246

Gear Housing Half - RH

$

$

Not available

66

White Outdoor 741-0192

Flange Bearing
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

67

White Outdoor 914-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

68

White Outdoor 711-04714

Auger Drive Shaft

$66.99

$

Usually ships in 3-6 days

0

69

White Outdoor 716-0111

Snap Ring for .875 dia. shaft

$6.99

$

In Stock, only 4 left!

0

70

White Outdoor 921-0145

Oil seal for .875 ID Garlock (76 x 6133)

$9.99

$

Usually ships in 3-6 days

0

71

White Outdoor 941-0217

Sleeve Bearing .875 ID

$17.99

$

In Stock, Qty 7

0

72

White Outdoor 741-0184

Thrust Bearing .88 ID x 1.44 OD x .078

$16.99

$

Usually ships in 3-6 days

0

73

White Outdoor 936-0291

Flat Washer .88 ID x 1.4 OD x .125
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

74

White Outdoor 917-0299

Worm Gear LH Double Thread

$124.99

$

In Stock, only 2 left!

0

75

White Outdoor 950-04020

Spacer

$12.99

$

In Stock, only 1 left!

0

76

White Outdoor 936-0266

Flat Washer 1.5 ID x 2.0 OD x .03
(Superseded to 736-0266)

$

$

Not available

77

White Outdoor 917-1425

Worm Gear LH Double Thread (Bronze)

$177.99

$

In Stock, only 2 left!

0

78

White Outdoor 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

79

White Outdoor 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

80

White Outdoor 918-0247

Gear Housing Half LH

$103.99

$

In Stock, only 1 left!

0

80

White Outdoor 918-0435

Gear Housing Half LH (w/grease fitting hole)

$109.99

$

Usually ships in 3-6 days

0

81

White Outdoor 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

82

N/A

Low Temperature grease

Note: Purchase Locally

$

$

Not available

83

White Outdoor 748-04067A

Pulley Adapter .75 Dia. w/pins

$26.99

$

Usually ships in 3-6 days

0

84

White Outdoor 710-0376

Hex Hd. Cap Scr. 5/16-18 x 1.0 Gr. 5

$3.99

$

In Stock, Qty 20+

0

85

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 20+

0
