12527 SB - Husqvarna 27" Snow Blower (2010-07) DRIVE 2 Parts Diagram

27" Snow Blower

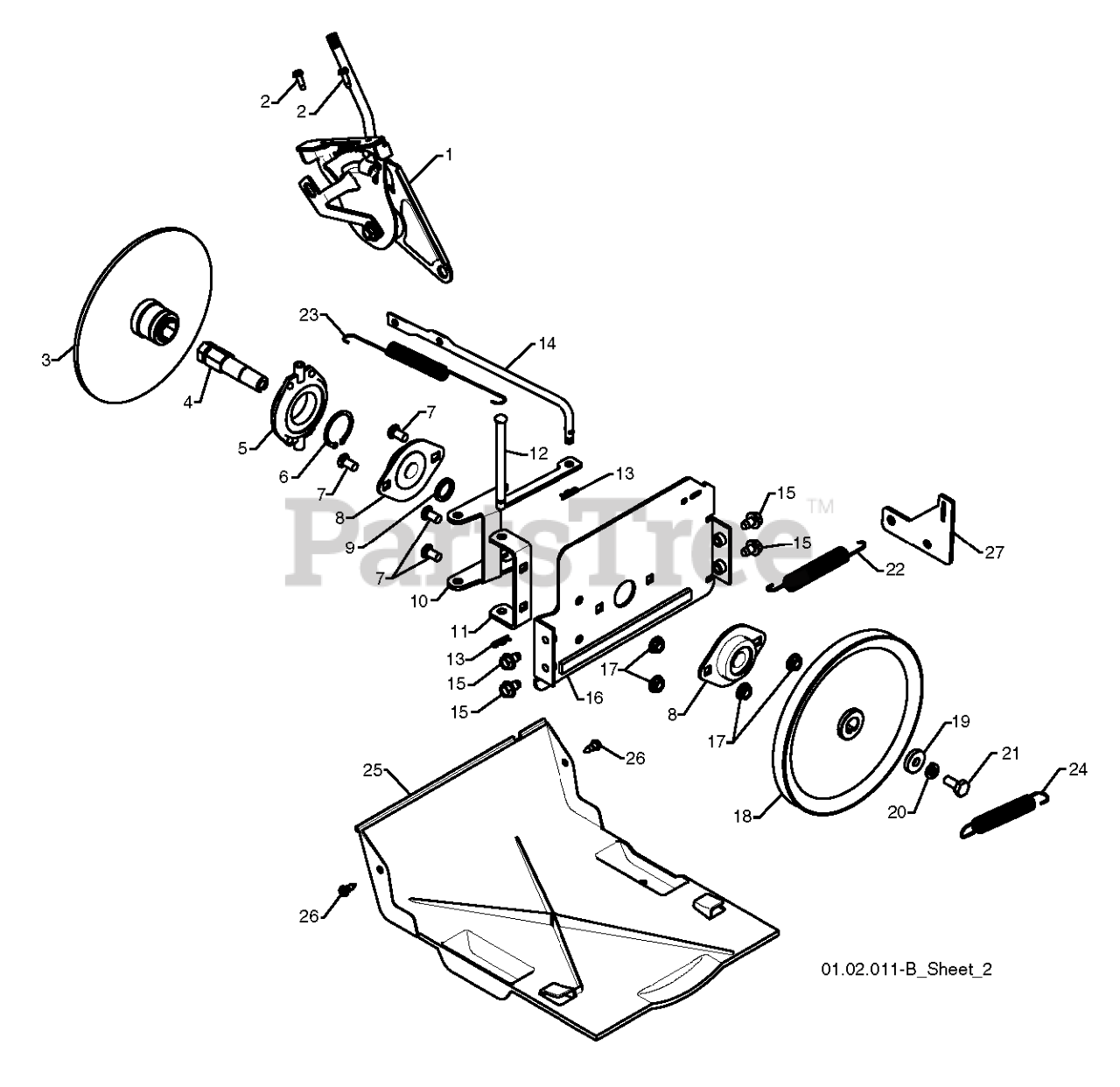

DRIVE 2 Parts Diagram

  • Title
24

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 532435772

BRACKET.TRACTION.SPRIN
(Superseded to 532416682)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532435783

PLATE.DRIVE.MOUNT.BLACK
(Superseded to 532184075)

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

12

Husqvarna 532178695

PIN, PIVOT LEVER

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532191080

PULLEY.TRACTION.7.75

$66.99

$

In Stock, only 1 left!

0

23

Husqvarna 532179095

SPRING.RETURN

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532403300

ROD.CLUTCH.YELLOW.ZINC(VT)

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532435787

LEVER.SHIFTER.PLATE.BLACK
(Superseded to 532184077)

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532435784

BRACKET.SHIFTER.SUPPORT.BLACK

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532188909

BEARING FLANGE

$28.99

$

In Stock, only 2 left!

0

9

Husqvarna 532182504

SPACER, BEARING

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532197764

SHAFT.HEX.SHORT

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532410877

PAN.BOTTOM.PLASTIC

$31.99

$

In Stock, only 2 left!

0

7

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

22

Husqvarna 532414557

SPRING.TRACTION.IDLER

$6.49

$

In Stock, only 4 left!

0

3

Husqvarna 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 874950512

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

In Stock, only 3 left!

0

1

Husqvarna 532198875

HEAD ASSY SPEED
(Superseded to 532429667)

$

$

Not available
