12527 HV (961930071-03) - Husqvarna 27" Snow Blower (2012-06) DRIVE Parts Diagram

27" Snow Blower

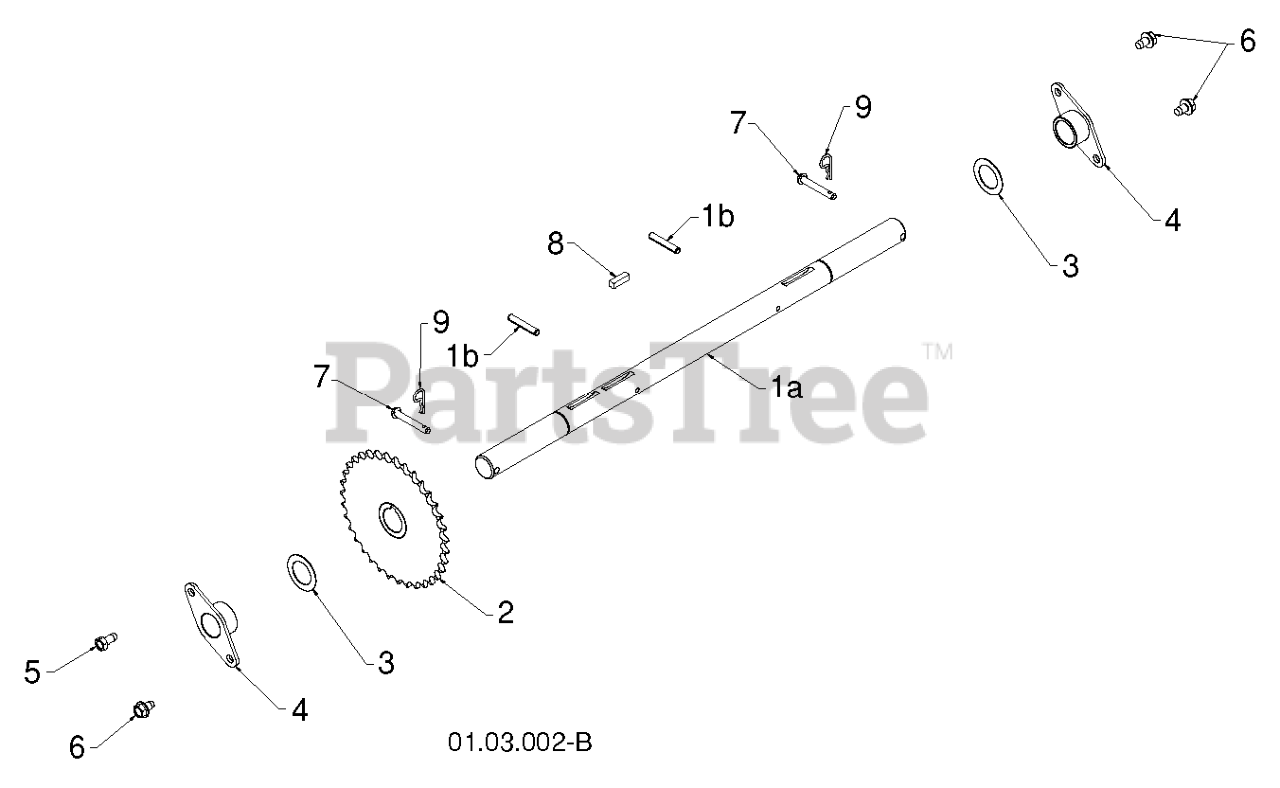

DRIVE Parts Diagram

  • Title

2

Husqvarna 532402691

SPROCKET.WELDMENT.AXLE.1.00

$60.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532404923

AXLE.ASM.SHAFT.W/ROLLPIN.PS

Note: "assy of 1a,1b"

$66.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

7

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532179830

BEARING, AXLE

$24.99

$

In Stock, only 2 left!

0

9

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

6

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

1a

Husqvarna 532404307

SHAFT.AXLE.POWER.STEERING

$72.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146315

SCREW

$10.99

$

Usually ships in 3-10 days

0

1b

Husqvarna 532184206

PIN.ROLL.3/16

$4.99

$

Usually ships in 3-10 days

0
