1250 (2050630) - Cub Cadet Garden Tractor Controls Parts Diagram

Garden Tractor

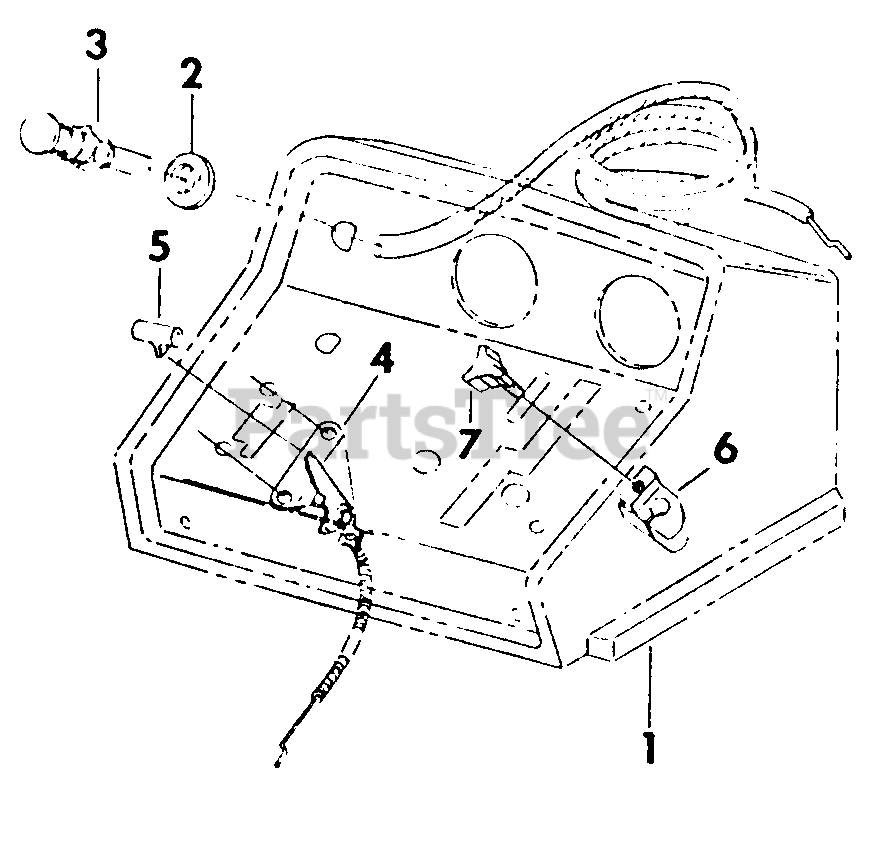

Controls Parts Diagram

  • Title
1

Cowl, Instrument Panel

Note: (Refer to pedestal)

$

$

Not available

2

Cub Cadet IH-27503-R1

Washer, Choke Bezel

$

$

Currently unavailable

3

Cub Cadet 746-3011

Cable Assy, Choke
(Superseded to 946-3011)

$55.99

$

In Stock, only 2 left!

0

4

Cub Cadet IH-126465-C1

Cable Assy, Throttle
(Superseded to IH-126465-C2)

$64.99

$

In Stock, Qty 7

0

5

Cub Cadet 731-0108

Knob, Throttle Control

$9.49

$

In Stock, only 2 left!

0

6

Cub Cadet 731-3007

Stop, Handle Detent

$

$

Not available

7

Cub Cadet 721-3003

Knob, Fluted

$

$

Not available

Cub Cadet 736-3020

Washer, .266 X .625 X .036 Znd

$6.99

$

In Stock, Qty 9

0
