1250 (2050059) - Cub Cadet Garden Tractor Seat & Support Parts Diagram

Garden Tractor

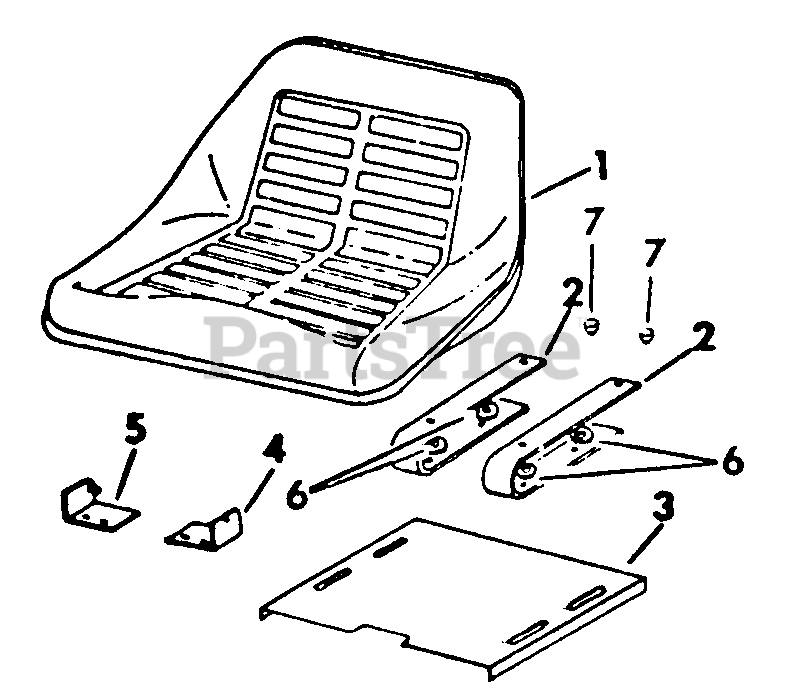

Seat & Support Parts Diagram

  • Title

1

Cub Cadet 759-3148

Seat Assy

$

$

Not available

2

Cub Cadet 703-0068

Spring, Seat

$

$

Not available

Cub Cadet 710-0118

Screw, 5/16-18 X 3/4 Znd Hex Hd Cap
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 759-3065

Cover w/Product Graphic 779-3296 Dual Spring

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 Znd Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3008

Washer, 11/32 X 3/4 X 11 Ga Znd
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 703-0070

Bracket Assy, Pivot LH

Variations

Cub Cadet 703-0070-0498

PIVOT BRACKET ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 736-0169

Washer, 3/8 Znd Reg Lock

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 703-0072

Bracket Assy, Pivot RH

Variations

Cub Cadet 703-0072-0498

PIVOT BRACKET ASSEMBLY(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 736-0169

Washer, 3/8 Znd Reg Lock

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 736-3070

Washer, 11/32 X 1-1/2 X 11 Ga Znd

$

$

Not available

7

Cub Cadet IH-128509-H1

Bumper, Seat Support

$4.99

$

In Stock, Qty 18

0
