1250 (2050059) - Cub Cadet Garden Tractor Hydrostatic Transmission Parts Diagram

Garden Tractor

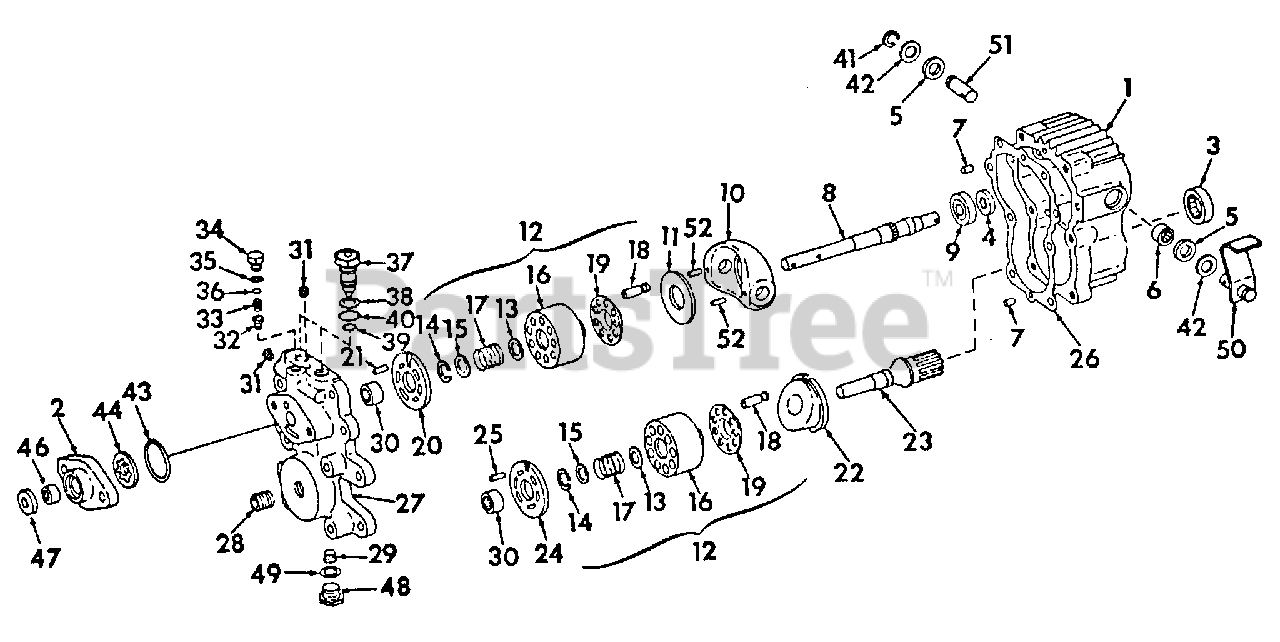

Hydrostatic Transmission Parts Diagram

  • Title

Cub Cadet 717-3032

Transmission Assy, Hydrostatic Drive

$

$

Currently unavailable

Cub Cadet 717-3033

Transmission Assy, Hydrostatic Drive

Note: (For tractors w/hydraulic lift)

$

$

Currently unavailable

1

Cub Cadet SU-3102732

Housing Assy

Note: (Replaces IH-398560-R91 by also ordering two seals SU-9008000-6701 & two wa

$

$

Not available

Screw, 1/4-20 X 7/8 Hex Hd Soc Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

2

Housing, Charge Pump

Note: (Not serviced separately, order pump kit SU-9510405-0001)

$

$

Not available

Screw, 7/16-14 X 2 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0171

Washer, 7/16 Med Lock

$4.49

$

In Stock, Qty 5

0

3

Cub Cadet SU-9001370-0003

Bearing, Hyd Pump Shaft Roller

$161.99

$

Usually ships in 3-6 days

0

4

Cub Cadet IH-394847-R91

Seal, Lip
(Superseded to 921-3032)

$17.99

$

In Stock, Qty 20+

0

5

Cub Cadet IH-383534-R91

Seal, Lip
(Superseded to IH-383534-R92)

Note: (Serial No. 592014 & below)

$

$

Not available

Cub Cadet SU-9008000-6701

Seal, Lip
(Superseded to SU-11156097)

Note: (Serial No. 592015 & above)

$

$

Not available

6

Cub Cadet IH-629631-R91

Bearing, Needle

$

$

Not available

7

Cub Cadet SU-9004800-2506

Pin, Transmission Housing
(Superseded to HG-9004800-2506)

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet SU-3101867

Shaft, Transmission Hyd Pump

$

$

Not available

9

Cub Cadet 741-0361

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

10

Cub Cadet IH-394851-R1

Swashplate, Hyd Pump

$

$

Currently unavailable

11

Cub Cadet IH-394852-R1

Plate, Hyd Pump Swashplate Thrust

$

$

Currently unavailable

12

Cub Cadet SU-3103136

Kit, Cylinder Block Motor & Pump

$

$

Not available

13

Cub Cadet IH-405179-R1

Washer, Spring Front

$

$

Not available

14

Cub Cadet IH-317776-R1

Ring, Hyd Cylinder Block Spring Rear Washer Snap

$

$

Currently unavailable

15

Cub Cadet IH-394858-R1

Washer, Hyd Cylinder Block Spring Rear

$

$

Not available

16

Block, Cylinder

Note: (Not serviced separately, order cylinder block kit SU-3103136)

$

$

Not available

17

Cub Cadet SU-3100120

Spring, Hyd Cylinder Block

$

$

Not available

18

Piston Assy, Hyd Pump & Motor

Note: (Not serviced separately, order cylinder block kit SU-3103136)

$

$

Not available

19

Cub Cadet SU-3100194

Retainer, Hyd Piston Slipper

$

$

Not available

20

Cub Cadet SU-3102731

Plate, Hyd Cylinder Block Valve

$

$

Not available

21

Cub Cadet SU-9004800-1508

Pin, Hyd Pump Cylinder Block

$

$

Not available

22

Cub Cadet SU-3100349

Swashplate, Hyd Motor

$

$

Not available

23

Cub Cadet SU-3101752

Shaft, Transmission Hyd Motor

$

$

Not available

24

Cub Cadet SU-3102687

Plate, Hyd Motor Cylinder Block Valve

$

$

Not available

25

Cub Cadet SU-9004800-1508

Pin, Hyd Motor Cylinder Block

$

$

Not available

26

Cub Cadet SU-3102875

Gasket, Transmission Housing
(Superseded to SU-3102875P)

$

$

Not available

27

Cub Cadet SU-9510643

Housing, Center Section

$

$

Not available

Cub Cadet SU-9510643

Housing, Transmission Center

Note: (Tractors w/hydraulic lift)

$

$

Not available

Screw, 3/8-16 X 1-1/4 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Screw, 3/8-16 X 1-1/2 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Screw, 3/8-16 X 2 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Screw, 3/8-16 X 1-1/4 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

28

Cub Cadet IH-394868-R1

Fitting, Center Housing
(Superseded to SU-3101069)

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet IH-444691

Plug, 1/4-18 Automotive Hex Soc Hd Pipe

$

$

Currently unavailable

30

Cub Cadet SU-9001355-0001

Bearing, Center Housing Needle

$

$

Not available

31

Cub Cadet IH-444687

Plug, 1/8-27 Automotive Hex Soc Hd Pipe

$

$

Currently unavailable

32

Cub Cadet SU-3100053

Cone, Charge Pump Relief Valve

$

$

Not available

Cub Cadet SU-3100053

Cone, Relief Valve

Note: (Tractors w/hydraulic lift)

$

$

Not available

33

Cub Cadet SU-3101536

Spring, Charge Pump Relief Valve

$

$

Not available

Cub Cadet SU-3101536

Spring, Charge Relief Valve

Note: (Tractors w/hydraulic lift)

$

$

Not available

34

Cub Cadet SU-3101159

Plug, Charge Pump Relief Valve
(Superseded to SU-4800172)

$

$

Not available

Cub Cadet SU-3100055

Plug, Relief Valve
(Superseded to SU-4800323)

Note: (Tractors w/hydraulic lift)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet SU-3102301

Spring, Implement Relief Valve

Note: (Tractors w/hydraulic lift)

$

$

Currently unavailable

35

Cub Cadet IH-369384-R1

O-Ring, 13/32 X 9/16 X 5/64 Relief Valve Plug

$

$

Currently unavailable

36

Cub Cadet SU-9510447

Shim, Pack

$

$

Not available

37

Cub Cadet SU-9500085

Valve Assy, Center Housing Check
(Superseded to SU-9500085P)

$502.99

$

Usually ships in 3-6 days

0

38

Cub Cadet SU-9006110-0160

Washer, Check Valve Housing
(Superseded to SU-11155962)

$13.99

$

In Stock, only 1 left!

0

39

Cub Cadet IH-379181-R1

O-Ring, 5/8 X 3/4 X 1/16

$

$

Not available

40

Cub Cadet 721-3005

O-Ring, 3/4 X 15/16 X 3/32 Check Valve Housing Large
(Superseded to 921-3005)

$

$

Not available

41

Cub Cadet IH-21065-R1

Ring, Trunnion Shaft Snap

$

$

Not available

42

Cub Cadet SU-9009625-6904

Washer, Trunnion Shaft Seal Retaining

$

$

Not available

43

Cub Cadet IH-23707-R1

O-Ring, 2-3/8 X 2-1/2 X 1/6 Class 5

$11.99

$

In Stock, only 1 left!

0

44

Rotor Assy, Charge Pump

Note: (Not serviced separately, order pump kit SU-9510405-0001)

$

$

Not available

Cub Cadet SU-9004875-0076

Pin, Charge Pump Rotor

$

$

Not available

46

Bearing, Charge Pump Housing Needle

Note: (Not serviced separately, order pump kit SU-9510405-0001)

$

$

Not available

47

Cub Cadet IH-394847-R91

Seal, Lip
(Superseded to 921-3032)

$17.99

$

In Stock, Qty 20+

0

48

Cub Cadet IH-9410359

Plug, 3/4-16 C-Z Str Thd

$

$

Not available

49

Cub Cadet IH-570828-R1

O-Ring, 41/64 X 13/16 X 3/32

$

$

Not available

50

Cub Cadet SU-3103181

Shaft Assy, Trunnion
(Superseded to SU-3103181P)

$

$

Not available

51

Cub Cadet SU-3101045

Shaft, Trunnion

$

$

Not available

52

Cub Cadet IH-27280-R1

Pin, 3/16 X 5/8 Coiled Spring

$

$

Not available

Cub Cadet SU-9510405-0001

Kit, Charge Pump Housing

$

$

Not available

Cub Cadet IH-394847-R91

Seal Rotor Assy Bearing
(Superseded to 921-3032)

$17.99

$

In Stock, Qty 20+

0

Cub Cadet SU-9004875-0076

Pin

$

$

Not available

Cub Cadet SU-9510405-0003

Kit, Charge Pump
(Superseded to SU-11060903)

Note: (Tractors w/hydraulic lift) Housing

$

$

Not available

Cub Cadet IH-394847-R91

Seal Rotor Assy Bearing
(Superseded to 921-3032)

$17.99

$

In Stock, Qty 20+

0

Cub Cadet SU-9004875-0076

Pin

$

$

Not available
