1250 (2050059) - Cub Cadet Garden Tractor Hydrostatic Disconnect Attachment Parts Diagram

Garden Tractor

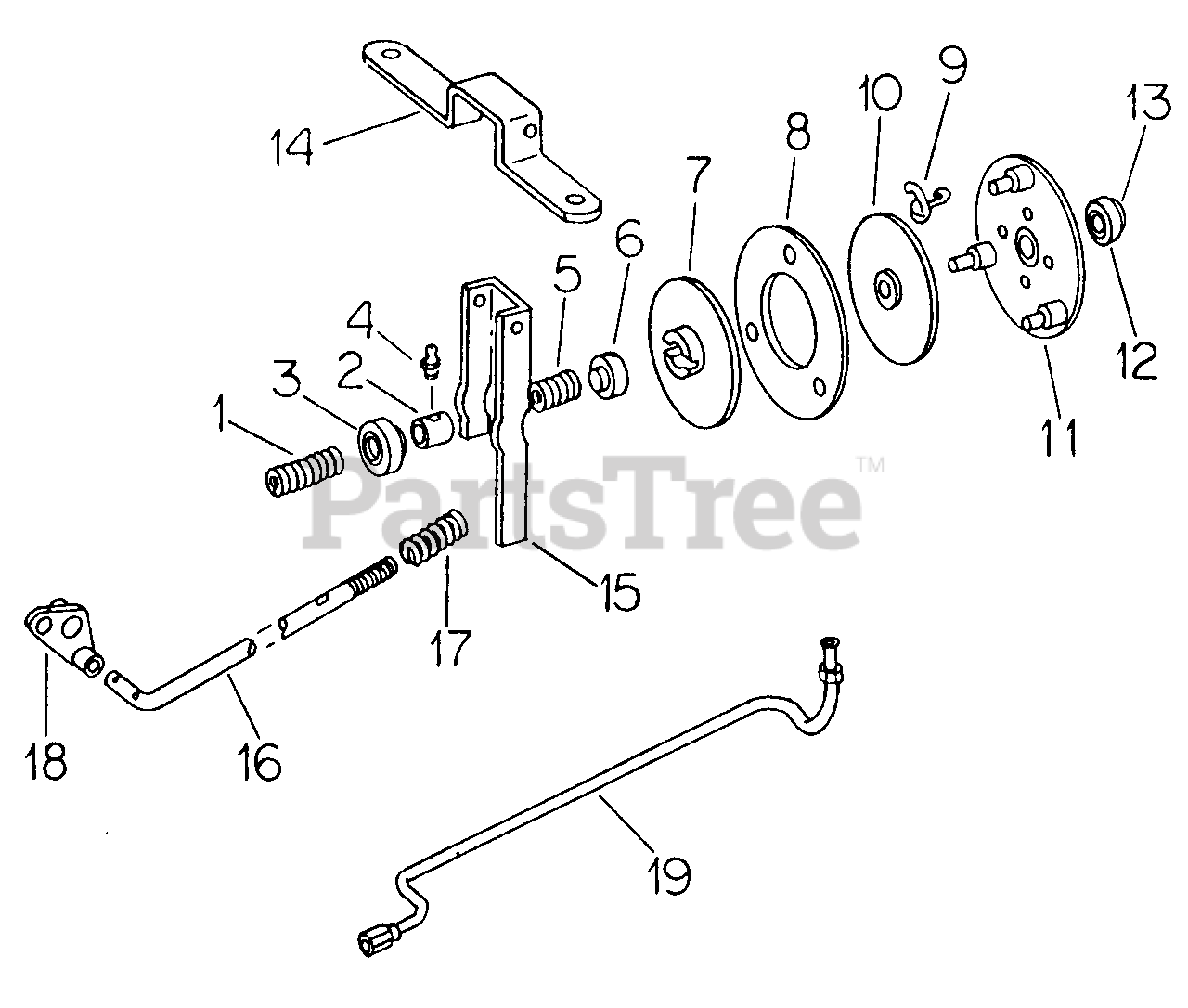

Hydrostatic Disconnect Attachment Parts Diagram

  • Title

1

Cub Cadet 732-3016

Spring, Loading
(Superseded to 932-3016)

$49.99

$

In Stock, Qty 15

0

Cub Cadet 736-0156

Washer, .65 X 1 X .105 Pln

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 703-0600

Bushing, Lubricating

$87.99

$

Usually ships in 3-6 days

0

3

Cub Cadet IH-391237-R91

Bearing, Throwout Ball
(Superseded to 941-3056)

$107.99

$

In Stock, Qty 9

0

4

Cub Cadet IH-19625-R91

Fitting, 1/4-28 Taper Drive Thread Lube
(Superseded to 737-3001)

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 732-3017

Spring, Teasing

$8.49

$

In Stock, Qty 20+

0

6

Cub Cadet 711-3040

Spacer, Spring
(Superseded to 911-3040)

$

$

Not available

7

Cub Cadet 703-0213

Hub Assy, Pressure Plate
(Superseded to 903-0213)

Note: (Optional w/IH-63815-C1)

$190.99

$

In Stock, only 3 left!

0

Cub Cadet IH-63815-C1

Hub Assy, Pressure Plate
(Superseded to 903-0213)

Note: (Optional w/703-0213)

$190.99

$

In Stock, only 3 left!

0

8

Cub Cadet 761-3002

Disc, Clutch Friction
(Superseded to 961-3002)

$94.99

$

In Stock, Qty 9

0

9

Cub Cadet 732-3018

Spring, Driving Disc

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 703-0214

Hub Assy, Pressure Plate Locating
(Superseded to 903-0214)

$121.99

$

In Stock, only 4 left!

0

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hvy Pln Cld Spr
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-117591-C1

Plate Assy, Driving

$254.99

$

In Stock, only 1 left!

0

12

Cub Cadet IH-126205-C1

Hub Assy, Pilot
(Superseded to IH-126205-C2)

$138.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 741-3004

Bushing, Ball
(Superseded to 941-3004)

$51.99

$

In Stock, Qty 7

0

14

Cub Cadet IH-547629-R1

Hanger Assy, Clutch Lever

$126.99

$

In Stock, only 1 left!

0

Screw, 5/16-18 X 3/4 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

15

Cub Cadet IH-61461-C1

Lever, Release
(Superseded to IH-61461-C2)

$112.99

$

In Stock, only 4 left!

0

Cub Cadet 711-3044

Pin, 3/8 X 3.688 Pln Hd Type 5

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-25708-R1

Washer, .406 X .750 X .105
(Superseded to 936-0275)

$

$

Not available

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Cot

$4.99

$

In Stock, Qty 13

0

16

Cub Cadet IH-117338-C2

Rod, Clutch Release

$

$

Not available

Cub Cadet 736-0140

Washer, .406 X .734 X .056

$7.49

$

In Stock, Qty 7

0

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Cot

$4.99

$

In Stock, Qty 13

0

Cub Cadet 712-3061

Nut, 3/8-NF Cad P/T Lock

$6.99

$

In Stock, Qty 14

0

17

Cub Cadet 732-3005

Spring, Release Rod
(Superseded to 932-3005)

$9.49

$

In Stock, only 1 left!

0

18

~NLA

Arm, Clutch & Brake Pedal

$

$

Not available

Cub Cadet 715-3018

Pin, 1/4 X 1-3/8 Med Pln Cld Spr
(Superseded to 915-3000)

$

$

Not available

19

Cub Cadet IH-106584-C2

Tube Assy, Return

$

$

Currently unavailable

Cub Cadet 723-3022

Ball, 5/8 Cr Stl

$6.99

$

In Stock, Qty 18

0
