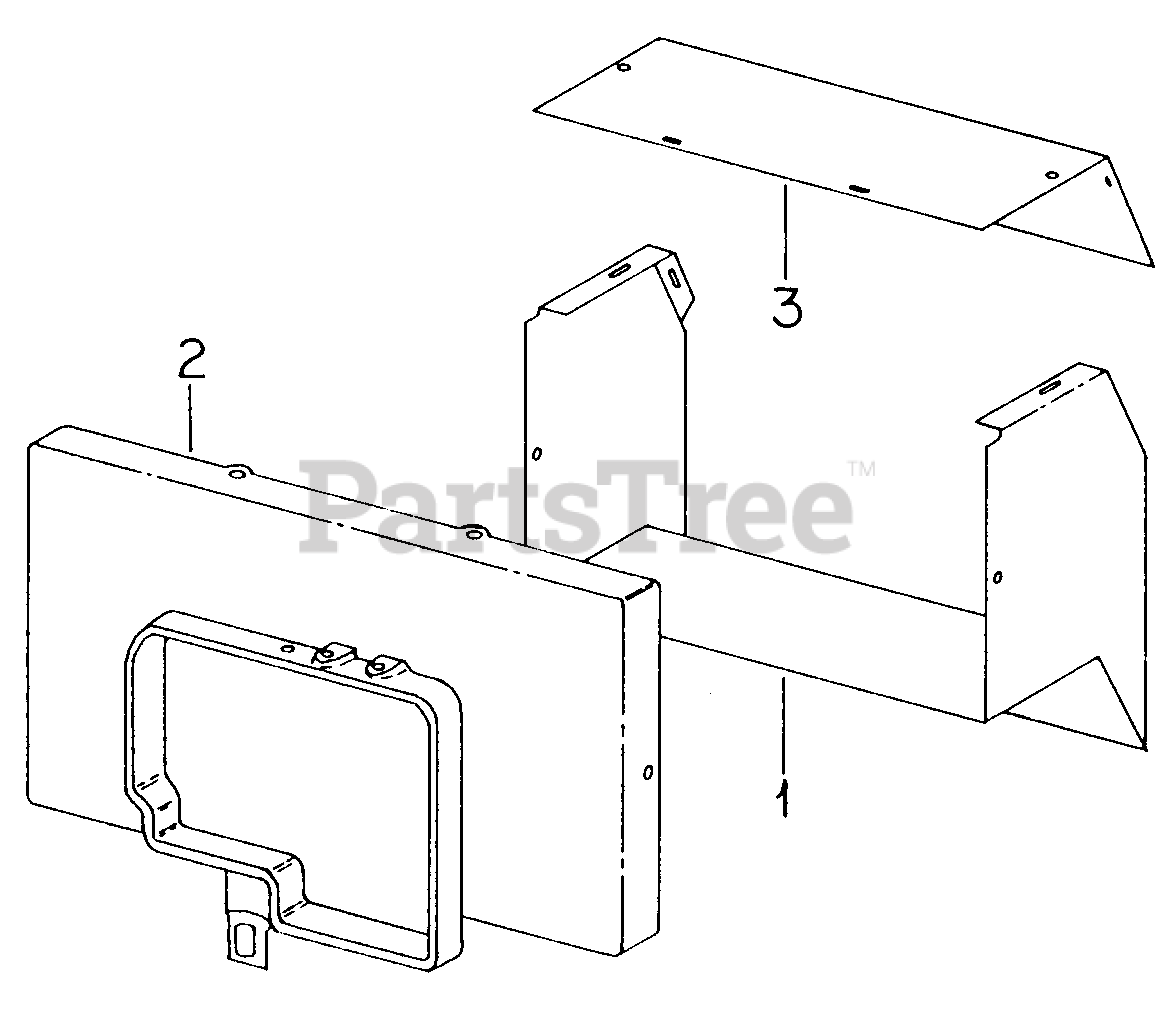

1250 (2050059) - Cub Cadet Garden Tractor Duct Assy Parts Diagram

Garden Tractor

Duct Assy Parts Diagram

  • Title

1

Cub Cadet 703-0561

Duct Assy, Air

Variations

Cub Cadet 703-0561-0637

DUCT-AIR - POWDER BLACK (0637)

$210.99

$

Usually ships in 3-6 days

0

$195.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-161108-C1

Screw, 1/4-20 X 1/2 Hex Hd Flange Lock
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3006

Washer, 1/4 Ext Tooth Lock

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-47-755-33

Duct, Air

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/4 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-9409106

Screw w/Spring Lock Washer, 1/4-20 X 1/2 Znd Hex Hd Mach

$

$

Not available

Cub Cadet KH-X-154-4

Screw w/Spring Lock Washer, 5/16-18 X 1-1/4 Znd Hex Hd Mach

$

$

Not available

Cub Cadet IH-132105

Screw, 10-32 X 3/8 Fil Hd Mach

$

$

Not available

Cub Cadet 736-0722

Washer, No. 10 Reg Spring Lock

$6.99

$

Usually ships in 3-6 days

0

Screw w/Spring Lock Washer, 1/4-20 X 5/8 Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

~NLA

Washer, .203 X .469 X .036

$

$

Not available

Cub Cadet IH-25708-R1

Washer, 11/32 X 3/4 X .054 Znd Plain
(Superseded to 936-0275)

$

$

Not available

Cub Cadet KH-X-167-2

Screw, 10-32 X 1/2 Hex Hd Tap

$

$

Not available

3

Cub Cadet IH-106204-C1

Top, Air Duct
(Superseded to IH-106204-C2)

$

$

Not available

Cub Cadet IH-117584-C1

Screw, No. 10 10-32 X 3/8 Znd Hex Hd Flange Lock
(Superseded to IH-117584-C2)

$

$

Not available
