125 RJ - Husqvarna String Trimmer (SN: 20082200001 - 20093400000) SHAFT & HANDLE Parts Diagram

String Trimmer

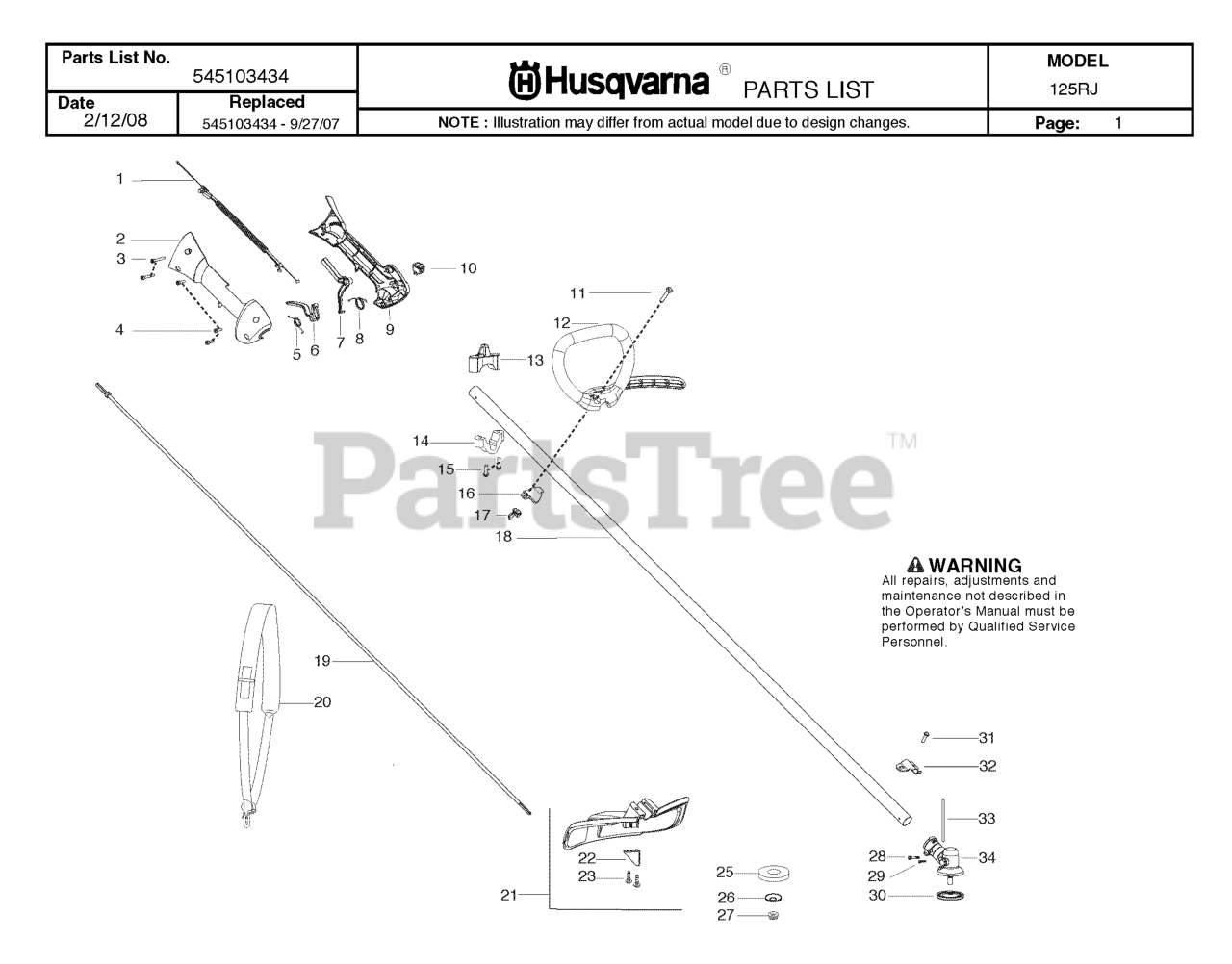

SHAFT & HANDLE Parts Diagram

  • Title
4

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 545125301

ASSY-CABLE WIRE HARNESS

$37.99

$

In Stock, only 3 left!

0

17

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

28

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

8

Husqvarna 545045601

SPRING LOCKOUT

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 7

0

2

Husqvarna 545062001

HOUSING-THROTTLE RH

$

$

Not available

32

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 545139701

ASSY HANDLE JBAR

$27.99

$

Usually ships in 3-10 days

0

33

Husqvarna 502285901

LOCKING PIN

$8.99

$

In Stock, only 1 left!

0

26

Husqvarna 537285601

SUPPORT FLANGE

$

$

Not available

25

Husqvarna 503890101

SUPPORTING CUP

$26.99

$

In Stock, only 1 left!

0

-

Husqvarna 545005911

DECAL SHAFT WARN EU

$

$

Not available

11

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 530052286

Limiter - Line

$

$

Not available

$6.49

$

In Stock, Qty 16

0

18

Husqvarna 545081889

KIT-DRIVESHAFT
(Superseded to 545006068)

$113.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 4 left!

0

6

Husqvarna 545066001

TRIGGER THROTTLE

$

$

Not available

13

Husqvarna 545113301

CLAMP HARNESS UPPER

$6.49

$

In Stock, only 1 left!

0

34

Husqvarna 530096295

ASSY GEARBOX

$80.99

$

In Stock, only 2 left!

0

7

Husqvarna 530059804

THROTTLE LOCKOUT

$

$

Not available

31

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

5

Husqvarna 530016454

SPRING TRIGGER

$6.49

$

In Stock, Qty 7

0

21

Husqvarna 545030901

KIT COBI SHIELD

$34.99

$

In Stock, Qty 8

0

16

Husqvarna 530059185

CLAMP ASSIST HANDLE

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 545049301

KIT SWITCH

$10.99

$

In Stock, Qty 10

0

9

Husqvarna 545067001

HSG THROTTLE LH

$

$

Not available

27

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 545056601

CLAMP HARNESS LOWER

$4.99

$

In Stock, only 3 left!

0

20

Husqvarna 537216201

Harness-w/o warning
(Superseded to 537216202)

$20.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 8

0

30

Husqvarna 537234901

DRIVE DISC

$40.99

$

Usually ships in 3-10 days

0
